Designed to Read, Write and Manage UHF / Long Distance RFID cards (For non encrypted card/tag only), this device is your all-in-one solution for reading and writing Ultra High Frequency RFID tags, cards, and stickers (Only for high-frequency operation such as long distance parking cards, inventory tags). Supports wide frequency spectrum, this tool is ideal for a multitude of applications such as real-estate, inventory management & tracking, asset tracking, point of sale, warehouse stock management, and access control.
Advanced RFID Technology: Equipped with a Rubik UHF RFID chip reader for quick and accurate identification and data reading.
Broad Frequency Range: Operates across wide band frequencies from 865-868 MHz and 902-928 MHz, accommodating various global RFID standards.
Supports ISO18000-6C Protocol: With a maximum power output of 4W, ensuring efficient and reliable card reading.
Versatile Compatibility: Supports multiple development platforms including Android, JAVA, Delphi, C#, VC, DLL, and both 32/64 bit systems across B/S & C/S architecture.
Proximity Reading: Effective card reading distance of 0 to 10 cm, providing flexibility in various use scenarios.
System Requirements: This USB powered desktop RFID reader/writer requires Microsoft Windows 10 PC/laptop. Basic drivers and demo software provided for basic operation, (only basic instructions provided for reading writing, background knowledge is required to use such advanced device)
Exclusions: Not suitable for reading/writing encrypted/protected/Dynamic and Active cards such as HID, Honeywell, Nedap, WatchNet..etc
Package Includes:
1 x Desktop UHF Reader/Writer1 x UHF RFID Card (Free Sample)1 x UHF Tag Paper Coated (Free Sample)
The ACR122U-A9 is the latest NFC Reader, designed as a PC-connected contactless smart card reader/writer based on 13.56 MHz Contactless (RFID) Technology. It adheres to the ISO/IEC18092 standard for Near Field Communication (NFC), offering compatibility with not only MIFARE and ISO 14443 IC TYPE A and B cards but also all four types of NFC tags.The ACR122U-A9 supports both CCID and PC/SC, making it a straightforward plug-and-play USB device that seamlessly works with various devices and applications. With impressive access speeds of up to 424 kbps and a full USB speed of up to 12 Mbps, the ACR122U-A9 can read and write data swiftly and efficiently. Its proximity operating distance extends up to 5 cm, depending on the specific contactless tag in use.For enhanced security, the ACR122U-A9 can be integrated with an ISO 7816-3 SAM slot. Additionally, this NFC Reader is available in a modular form, facilitating its integration into larger machines, including POS terminals, physical access systems, and vending machines.The ACR122U-A9 NFC Reader serves as an excellent choice for secure personal identity verification and online micro-payment transactions. It finds applications in various fields such as access control, e-payment, e-ticketing for events and public transportation, toll road fare collection, and network authentication.
Features
USB 2.0 Full Speed Interface
CCID Compliance
Smart Card Reader:
Read/write speed up to 424 kbps
Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
Supports ISO 14443 Type A and B cards, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
Built-in anti-collision feature (only 1 tag is accessed at any time)
Application Programming Interface:
Supports PC/SC
Supports CT-API (through wrapper on top of PC/SC)
Peripherals:
User-controllable bi-color LED
User-controllable buzzer
Supports Android™ OS 3.1 and above
Physical Characteristics
Dimensions (mm)
98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H)
Weight (g)
70 g
USB Interface
Protocol
USB CCID
Power Source
From USB port
Speed
USB Full Speed (12 Mbps)
Cable Length
1.0 m, Fixed
Contactless Smart Card Interface
Standard
ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, FeliCa
Protocol
ISO 14443-4 Compliant Card, T=CL
MIFARE® Classic Card, T=CL
ISO18092, NFC Tags
FeliCa
Built-in Peripherals
LED
1 bi-color: Red and Green
Buzzer
Monotone
Certifications/Compliance
Certifications/Compliance
EN 60950/IEC 60950
ISO 18092
ISO 14443
USB Full Speed
PC/SC
CCID
VCCI (Japan)
KC (Korea)
Microsoft® WHQL
CE
FCC
RoHS 2
REACH
Device Driver Operating System Support
Device Driver Operating System Support
Windows® CE
Windows®
Linux®
MAC OS®
Solaris
Android™
CR20 Series are desktop enrollment devices designed to read to read & write (CR20MW) RFID proximity cards for streamlining sign-in process and enhances contactless access control. They are connected to a PC through a USB interface, allowing high-speed data transmission.
The connection interface is USB. Power supply 5 V. Dimensions 117.2x66.2x17 mm.The CR20MW reader is used in access control and management systems. The device is able to read and write the individual card code and transfer it to the access control software for further processing
Note: CR20E and CR20M read the same serial number as ZKTeco devices CR20MW comes with read-and-write functionality and includes a communication protocol for development.
Features
Operating System: Windows, Android, Linux
Frequency: 13.56MHz
Read Range: Up to 3 cm
Communication: USB
Operating Temperature: -10 degree Celsius to 70 degree Celsius
Material: Industrial ABS Plastic
Dimension: 117.2*66.2*17 (mm)
USB charging
Plug & play
LED indicator and buzzer feedback
CR20 Series are desktop enrollment devices designed to read to read ID 125KHz (CR20E) proximity cards for streamlining sign-in process and enhances contactless access control. They are connected to a PC through a USB interface, allowing high-speed data transmission.
The connection interface is USB. Power supply 5 V. Dimensions 117.2x66.2x17 mm.The CR20E reader is used in access control and management systems. The device is able to read the individual card code and transfer it to the access control software for further processing
Features
Operating System: Windows, Android, Linux
Frequency: 125KHz
Read Range: Up to 5 cm
Communication: USB
Operating Temperature: -10 degree Celsius to 70 degree Celsius
Material: Industrial ABS Plastic
Dimension: 117.2*66.2*17 (mm)
USB charging
Plug & play
LED indicator and buzzer feedback

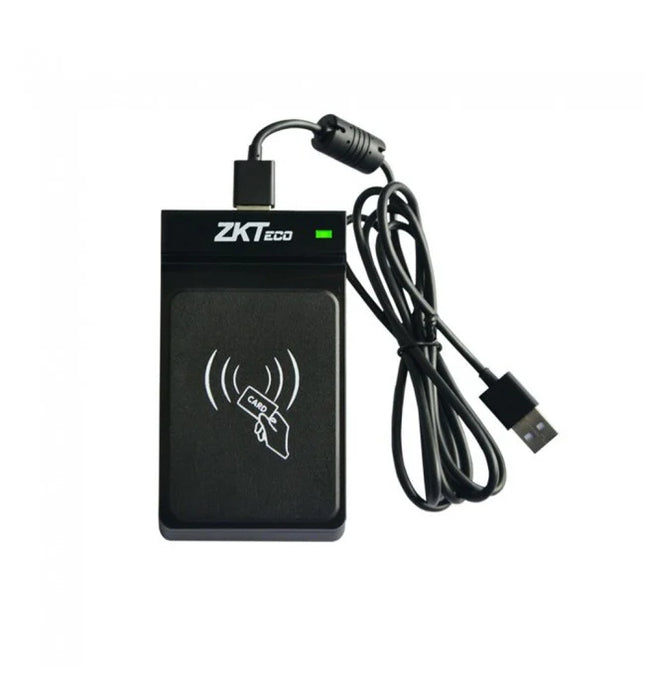

CR20 Series are desktop enrollment devices designed to read to read (CR20M) RFID proximity cards for streamlining sign-in process and enhances contactless access control. They are connected to a PC through a USB interface, allowing high-speed data transmission.
The connection interface is USB. Power supply 5 V. Dimensions 117.2x66.2x17 mm.The CR20M reader is used in access control and management systems. The device is able to read and write the individual card code and transfer it to the access control software for further processing
Note: Another model CR20MW comes with read-and-write functionality and includes a communication protocol for development.
Features
Operating System: Windows, Android, Linux
Frequency: 13.56MHz
Read Range: Up to 3 cm
Communication: USB
Operating Temperature: -10 degree Celsius to 70 degree Celsius
Material: Industrial ABS Plastic
Dimension: 117.2*66.2*17 (mm)
USB charging
Plug & play
LED indicator and buzzer feedback

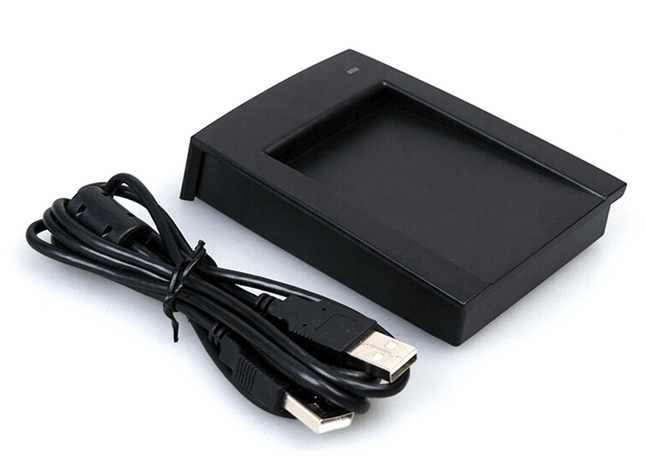

CR10 Series are accessories designed to read proximity cards. They are connected to PC through USB Port (Plug & play). They allow high speed transactions and incorporate LED indicators. CR10E and CR10M are compatible with all kind of windows S.O and read the same serial number as ZKTeco devices.
The ZKTeco CR10E is a compact and efficient 125 KHz RFID proximity card reader designed for fast and secure card data reading. With its plug-and-play USB interface, the CR10E requires no additional drivers, functioning as a keyboard emulator for seamless integration with existing systems.
Ideal for access control, time attendance, and identification applications, the CR10E offers a read range of up to 10 cm, ensuring quick transactions and reliable performance. Its LED indicator and buzzer feedback provide clear confirmation for every card read, improving operational efficiency.
Engineered for compatibility, the CR10E supports multiple Windows operating systems, including Windows 98, 2000, XP, Vista, and Windows 7. Its high-speed data transfer and USB power supply make it a low-maintenance, user-friendly solution for organizations looking to streamline their card reading processes.
CR10 Series RFID Readers Specifications
Models: CR10E (125 KHz), CR10M (13.56 MHz), CR10M-W (13.56 MHz)
Feature
CR10E (125 KHz)
CR10M (13.56 MHz)
CR10M-W (13.56 MHz)
Frequency
125 KHz
13.56 MHz
13.56 MHz
Read Range
Up to 10 cm
Up to 5 cm
Up to 5 cm
Functionality
Read card number only
Read card number only
Read and write
Interface
USB
USB
USB
Power
Powered by USB
Powered by USB
Powered by USB
Transactions
High speed
High speed
High speed
Indicators
LED indicator & buzzer
LED indicator & buzzer
LED indicator & buzzer
Driver Requirement
No driver (keyboard emulation)
No driver (keyboard emulation)
—
OS Compatibility
Windows 98/2000/XP/Vista/7
Windows 98/2000/XP/Vista/7
Windows 2000/2003/XP/Vista (32-bit)/7 (32-bit)
Communication Protocol
—
Available for development
Available for development
The ZKTeco CR10M is a high-performance 13.56 MHz RFID desktop card reader designed for fast, secure, and convenient card reading operations. With its compact design and USB plug-and-play interface, the CR10M requires no additional drivers, functioning as a keyboard emulator for effortless integration with a wide range of systems.
The CR10M is ideal for access control, time attendance, visitor management, and ID verification applications. It supports a read range of up to 5 cm, ensuring quick card detection and high-speed transaction processing. Clear LED indicators and buzzer feedback provide instant status confirmation, improving user experience and operational efficiency.
Additionally, the CR10M includes communication protocol support, enabling developers to integrate it seamlessly into customized software solutions and security systems. It is compatible with multiple Windows operating systems, making deployment straightforward and flexible.
CR10 Series RFID Readers Specifications
Models: CR10E (125 KHz), CR10M (13.56 MHz), CR10M-W (13.56 MHz)
Feature
CR10E (125 KHz)
CR10M (13.56 MHz)
CR10M-W (13.56 MHz)
Frequency
125 KHz
13.56 MHz
13.56 MHz
Read Range
Up to 10 cm
Up to 5 cm
Up to 5 cm
Functionality
Read card number only
Read card number only
Read and write
Interface
USB
USB
USB
Power
Powered by USB
Powered by USB
Powered by USB
Transactions
High speed
High speed
High speed
Indicators
LED indicator & buzzer
LED indicator & buzzer
LED indicator & buzzer
Driver Requirement
No driver (keyboard emulation)
No driver (keyboard emulation)
—
OS Compatibility
Windows 98/2000/XP/Vista/7
Windows 98/2000/XP/Vista/7
Windows 2000/2003/XP/Vista (32-bit)/7 (32-bit)
Communication Protocol
—
Available for development
Available for development
The ZKTeco CR10M-W is a versatile and reliable 13.56 MHz RFID card reader and writer designed for applications that require both card number reading and data writing capabilities. Combining advanced functionality with a compact, plug-and-play USB design, the CR10M-W provides a fast, secure, and efficient solution for access control, time attendance, visitor management, and card issuance systems.
Unlike basic readers, the CR10M-W supports full read/write operations, making it ideal for organizations that need to encode user information onto RFID cards for customized security applications. Its high-speed transaction processing, LED indicator, and buzzer feedback ensure smooth and reliable operation in busy environments.
The CR10M-W features developer-friendly communication protocols, allowing easy integration with third-party software and security platforms. Powered entirely through USB, it requires no external power source, offering simple installation and maintenance. It is compatible with a wide range of Windows operating systems, ensuring flexibility and broad deployment options.
CR10 Series RFID Readers Specifications
Models: CR10E (125 KHz), CR10M (13.56 MHz), CR10M-W (13.56 MHz)
Feature
CR10E (125 KHz)
CR10M (13.56 MHz)
CR10M-W (13.56 MHz)
Frequency
125 KHz
13.56 MHz
13.56 MHz
Read Range
Up to 10 cm
Up to 5 cm
Up to 5 cm
Functionality
Read card number only
Read card number only
Read and write
Interface
USB
USB
USB
Power
Powered by USB
Powered by USB
Powered by USB
Transactions
High speed
High speed
High speed
Indicators
LED indicator & buzzer
LED indicator & buzzer
LED indicator & buzzer
Driver Requirement
No driver (keyboard emulation)
No driver (keyboard emulation)
—
OS Compatibility
Windows 98/2000/XP/Vista/7
Windows 98/2000/XP/Vista/7
Windows 2000/2003/XP/Vista (32-bit)/7 (32-bit)
Communication Protocol
—
Available for development
Available for development

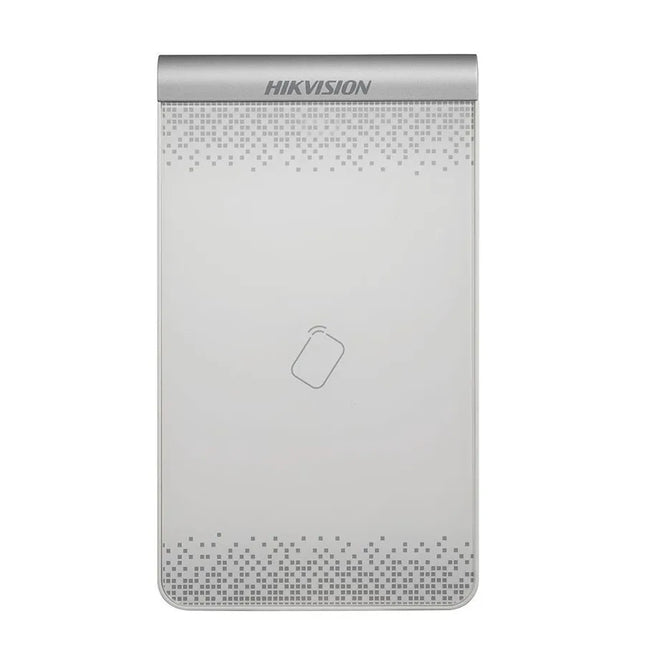

The DS-K1F180A-D8E is a dual-frequency smart card reader designed for high compatibility, security, and ease of use. It supports both 13.56 MHz and 125 kHz frequencies, allowing it to read Mifare cards, ID (EM) cards, and CPU card serial numbers, making it suitable for a wide range of access control and identification applications.
The device communicates with a PC through a USB 2.0 interface and features driver-free, plug-and-play functionality, ensuring fast installation and stable operation. Its data transmission is protected by advanced encryption algorithms, providing a secure environment for card issuance and communication.
For software development, the DS-K1F180A-D8E comes with a comprehensive SDK and API (Download from Hikvision, not provided by the seller)RFID, supporting multiple operating systems and development platforms, making integration flexible and efficient. In addition, the device supports online firmware upgrades, enabling easy maintenance and functionality updates over time.
Compact in design, reliable in performance, and equipped with high-standard encryption and compatibility features, this model is ideal for secure ID verification, attendance systems, and card issuance environments.
• Complies with ISO 14443 A/B and ISO 7816 standards. Supports card reading frequencies of 13.56 MHz and 125 KHz, and can read Mifare cards, ID (EM) cards, and CPU card serial numbers.
• Communicates with PC via USB 2.0 interface, supports driver-free technology, plug and play.
• Uses advanced encryption algorithms for card issuing, ensuring secure and reliable data transmission.
• Provides complete development kit and API functions, compatible with various operating systems and development platforms.
• Supports firmware upgrades, allowing online device updates.
Specifications
Performance Parameters
Card Reading Frequency
13.56 MHz, 125 KHz
Communication Interface
USB 2.0
Working Voltage
DC 5V, 200 mA
Dimensions
117 mm × 67.5 mm × 14.3 mm
Card Types Supported
Mifare Card, CPU Card, ID Card
PSAM Slots
2 or more
Status Indicator
LED Indicator
Fingerprint Collection
None
Fingerprint Collection Area
None
Supported Operating Systems
Windows XP, Windows 7, Windows 8
Protocols
ISO 14443 A/B Standard, ISO 7816 Standard
Environmental Parameters
Operating Temperature
-20 °C ~ 65 °C
Relative Humidity
20% to 80%
Order Model
Model Number
DS-K1F180A-D8E
Product Description

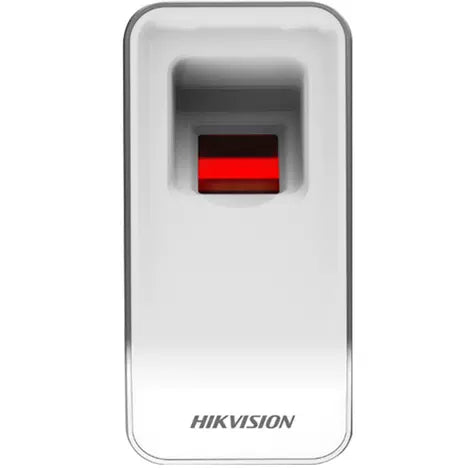

The Hikvision DS-K1F181-F is a compact and efficient fingerprint enrollment device designed for use in access control systems, time attendance solutions, and identity registration applications. It uses an optical fingerprint module to capture accurate and high-quality fingerprint images quickly. The device connects via USB 2.0 and supports plug-and-play functionality for easy installation. It is intended for indoor desktop use in locations such as hotels, office buildings, residential properties, and registration counters.
DS-K1F181-F Fingerprint Enrollment Device Specifications
Model
DS-K1F181-F
Processor
32-bit MCU
Fingerprint Module
Optical, red backlight
Supported Operating System
Windows
Image Resolution
500 ppi
Fingerprint Image Size
256 × 288 pixels
Communication Interface
USB 2.0
Working Voltage
DC 5V, 200 mA
Operating Temperature
-30 °C to 70 °C
Operating Humidity
20% – 80%
Dimensions
100 × 48 × 35 mm

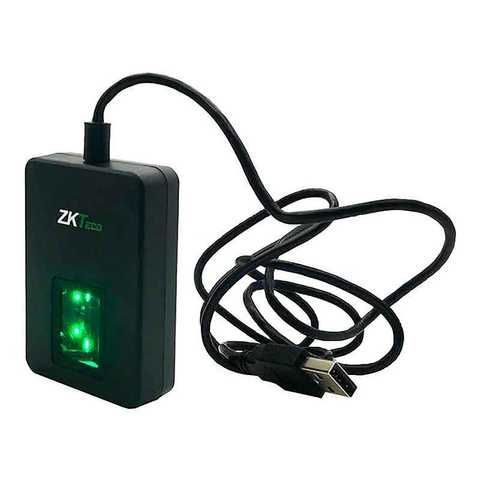

An latest optical fingerprint scanner, it is developed by ZKTeco. It supports finger detection and captures fingerprint image fast, with high resolution. The product is small, easy to use fingerprint registration on the desktop. Low power consumption, it also applies to Android tablet and mobile phone. We provide SDKs for customers to develop their own applications.
Features
Operating System: Windows, Android, Linux
Frequency: 13.56MHz
Read Range: Up to 3 cm
Communication: USB
Operating Temperature: -10 degree Celsius to 70 degree Celsius
Material: Industrial ABS Plastic
Dimension: 117.2*66.2*17 (mm)
USB charging
Plug & play
LED indicator and buzzer feedback
ZKTeco LIVE 10R Specifications
Product Model
LIVE 10R
Sensor Type
Optical
Effective Sensing Window
16.5 × 23 mm
Effective Sensing Area
15.24 × 20.32 mm
Image Size
300 × 400 pixels
Image Resolution
500 DPI
Operating System
Windows, Android, Linux
Domestic Operating Systems
Supported (Galaxy Kirin, Zhongbiao Kirin, Tongxin OS — including Phytium, Loongson, Feiteng, Haiguang, Zhaoxin platforms)
Power Supply
5V USB power
Working Temperature
-20 ~ 55 °C
Working Humidity
0% ~ 90% (non-condensing)
Communication Method
USB 2.0, compatible with USB 1.1
Supported Algorithm
ZKFINGER V10.0
Product Dimensions (L × W × H)
75.5 × 53.2 × 19 mm
Net Weight
<90 g

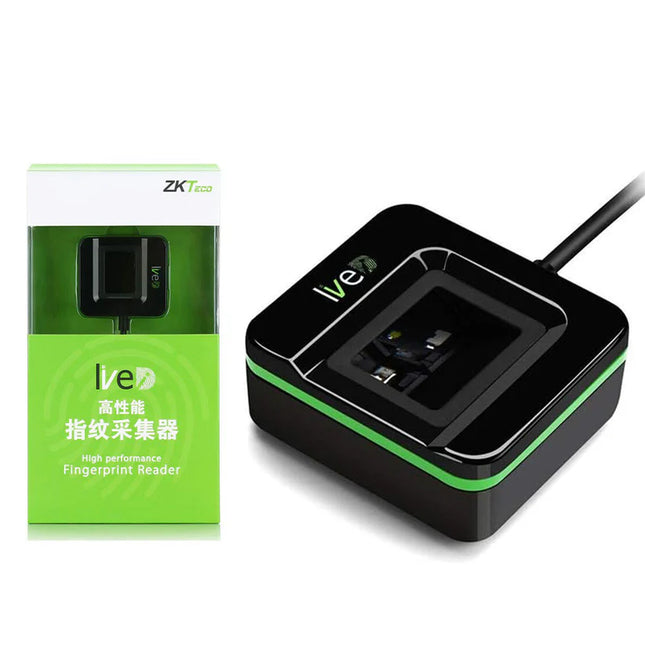

Live20R, a latest optical fingerprint scanner, is developed by ZKTeco. It supports fingerprint detection and captures fingerprint image fast, with high resolution. The product is tiny in size and easy to perform fingerprint registration on the desktop. Low power consumption, it can be applies to Android tablet and mobile phone. We provide SDKs for customers to develop their own applications.(ZKTeco Entropy Live20R fingerprint reader collector browser web page docking BS framework WEB/JS call)
Features
Support fingerprint detection function
Quick scanning of fingerprint on dry, wet or rough fingertips
SDK for development from ZKTeco
High Speed USB 2.0
Work reliably under extreme lighting condition such as direct sunlight or dim light
ZKTeco LIVE 20R Specifications
Product Model
LIVE 20R
Sensor Type
Optical fingerprint
Effective Sensing Window
15.2 × 20.3 mm
Image Size
300 × 400 pixels
Image Resolution
500 DPI
Distortion Rate
<1%
Gray Scale
8 bit
Data Encryption
AES-256
Template Size
<2048 bytes
Interface Type
Standard USB port
Operating System
Windows / Linux / Android
Domestic Operating Systems
Supported (Galaxy Kirin, Zhongbiao Kirin, Tongxin OS — including Phytium, Loongson, Feiteng, Haiguang, Zhaoxin platforms)
Working Voltage
5V
Working Temperature
-10 ~ 55 °C
Working Humidity
0% ~ 93% (non-condensing)
Communication Method
USB 1.1 / 2.0
Supported Algorithm
ZKFINGER V10.0
Product Dimensions (L × W × H)
49.5 × 43 × 20 mm
Net Weight
<120 g
125KHz USB Desktop Card Reader, offers seamless compatibility with a variety of ID-125Khz cards, including Rubik, HID, and Honeywell, such as EM4100, TK4100, T5200, and T5577. This versatile reader ensures effortless plug-and-play functionality with both Windows and Linux systems, providing quick and convenient access control.
Key Features:
Comprehensive Compatibility: Our reader supports all (non-encrypted) ID-125Khz cards, support cards by Rubik, HID, Honeywell and other, featuring EM4100, TK4100, T5200, and T5577 formats, streamlining access management.
10-Digit Output: With 10-digit output, our reader ensures quick and efficient data retrieval (Not suitable for hexa output such as 020HFC3).
USB Interface, Plug and Play: Enjoy the convenience of our reader's USB interface, offering plug-and-play functionality with no additional driver required for installation.
Note that this reader is intended for reading purposes only and does not support card writing or programming.
Advanced Contactless RFID Card Reader, designed for Mifare 13.56Mhz IC Type-A and Type-B cards. Also capable to read card number for NFC cards. Offering USB Plug-n-Play functionality, this reader is your go-to solution for effortless card scanning.
Key Features:
Comprehensive Compatibility: Our reader supports all (non-encrypted) IC cards, including MiFare, Rubik, HID, and Honeywell, ensuring hassle-free access management.
Versatile Frequency Support: With a supported frequency of 13.56Mhz, the reader works flawlessly with IC cards, IC Type-A, and IC Type-B. It also reads NFC cards to display the card number, excluding NTAG.
NFC Card Number Support: Effortlessly read various types of NFC Cards, Tags, and Stickers, displaying card numbers only (excluding NTAG).
Important Note: Our reader is solely designed for reading purposes and does not possess writing or card programming capabilities.
NFC NTAG Not Supported: Please note that this reader does not support NTAG reading.
USB Desktop Card Reader, offers seamless compatibility with a wide range of IC cards, including Mifare, Rubik IC Type-A, M1 Cards, S50, and S70 Cards. This reader supports the 14443A protocol, ensuring smooth performance with a frequency of 13.56Mhz on both Windows and Linux systems.
Key Features:
Comprehensive Compatibility: Our reader supports all (non-encrypted) IC cards, such as Mifare, Rubik IC Type-A, M1 Cards, S50, and S70 Cards, streamlining access management for your convenience.
Plug-n-Play USB Interface: USB interface, allowing for effortless plug-and-play functionality without requiring additional drivers for installation.
NFC Card Number Support: The reader can read numbers from NFC cards as well (excluding NTAG information).
Indicator LED Indicator: LED indicator, providing visual cues for reader status.
10-Digit Decimal Output: Our reader offers 10-digit decimal output, ensuring quick and efficient data retrieval (Not suitable for hexa output such as 020HFC3).
NFC NTAG Not Supported: Please note that this reader does not support NTAG.
Kindly note that this reader is intended for reading purposes only and does not support card writing or programming.
UHF High-Frequency Card Issuer 902-928MHz, 865-868MHz, this high-performance UHF frequency card / tag issuer that follows the ISO18000-6C (EPC C1G2) protocol for UHF cards and tags. It combines with efficient electronic tag collision handling algorithm, ensuring high read rates while enabling fast read and write processing of electronic tags. It can be widely used in various RFID (Radio Frequency Identification) systems such as logistics, personal identification, smart parking, access control systems, anti-counterfeiting systems, and production process control.
Note: This is not a parking card copier.
Product Features:
Full support for UHF EPC Gen2 (ISO18000-6C) protocol
Advanced tag collision processing algorithm with high read rate
Operating frequencies: FCC 902-928MHz, CE 865-868MHz
Works via frequency hopping (FHSS) or fixed frequency transmission
Output power: Maximum 27dBm (adjustable)
Built-in transceiver antenna, with a reading distance of 30 cm and a writing distance of 20 cm
USB-powered, no external power supply required
Supports USB 2.0 interface.
Product Parameters:Type: UHF High-Frequency Card Issuer
Physical Parameters:Dimensions: 1057011 mmWeight: 0.2 Kg (including packaging)Material: PVC coatedColor: Gray-white
Environmental Parameters:Operating Temperature: -20 to +60℃Operating Humidity: -25% to 85%
Performance Parameters:
Antenna: Built-in linear polarized PCB antenna
Output Power: Maximum 27dBm
Reading Distance: 0-30 cm (dependent on the card and reading environment)
Writing Distance: 0-20 cm (dependent on the card and reading environment)
Card Reading Speed: 100 reads per second
Card Type: ISO18000-6C
Built-in Antenna: Yes
Built-in LED: Red-green dual-color LED
Built-in Speaker: Buzzer
Power Supply: USB-powered
Current: Less than 200mA (5V input)/1W
Communication: Supports USB 2.0 interface.
Note: The parameters and functionality of this reader may vary based on different standards and environments in different countries or regions, and are subject to change without notice.

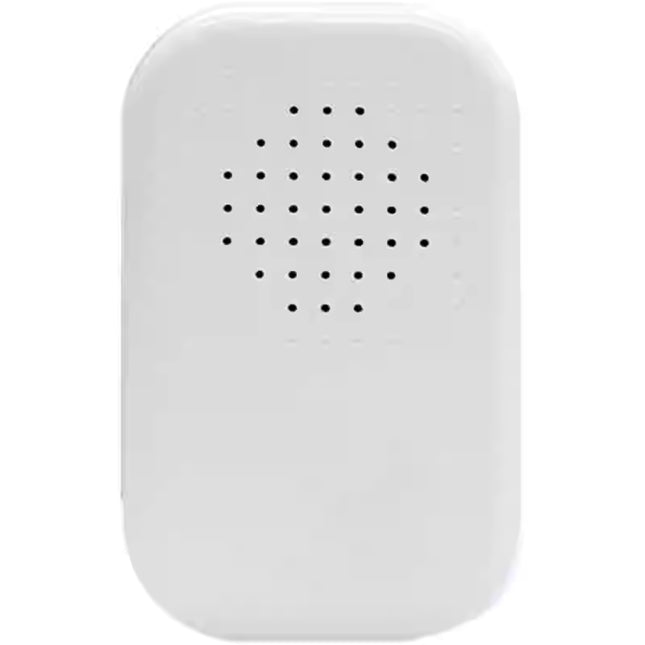

The ZKTeco B06 12V Wired Doorbell is a durable and efficient electronic doorbell designed to seamlessly integrate with access control systems. It operates on a wired 12V DC power supply, eliminating the need for batteries, and provides a clear and pleasant “Dingdong” chime that is ideal for hotels, offices, homes, and public buildings.
Built with high-quality ABS fire-resistant material, this doorbell ensures reliable performance and enhanced safety. Its 90 dB sound output delivers a loud and clear tone that can be heard easily in busy environments. The B06 is designed for easy installation, with straightforward wiring: simply connect the red wire to positive (+) and the black wire to negative (−) on a DC 12V power source.
Compact in size yet powerful in performance, the B06 operates reliably under a wide temperature range of -10°C to 80°C and humidity below 80%, making it suitable for various indoor applications.
12V Wired Doorbell B06 Product Specifications
Specifications for 12V Wired Electronic Dingdong Music Doorbell
Parameter
Specification
Product Name
12V Wired Doorbell
Material
ABS Fire-Resistant Material
Power Supply
DC 12V (Wired)
Doorbell Sound
90 dB
Operating Temperature
-10°C to 80°C
Sound Type
Dingdong
Operating Humidity
Less than 80%
Application
Suitable for all households and public places
Connection Instructions
Connect DC 12V power: Red wire to positive (+), Black wire to negative (−)
Dimensions
86 mm × 55 mm × 16 mm

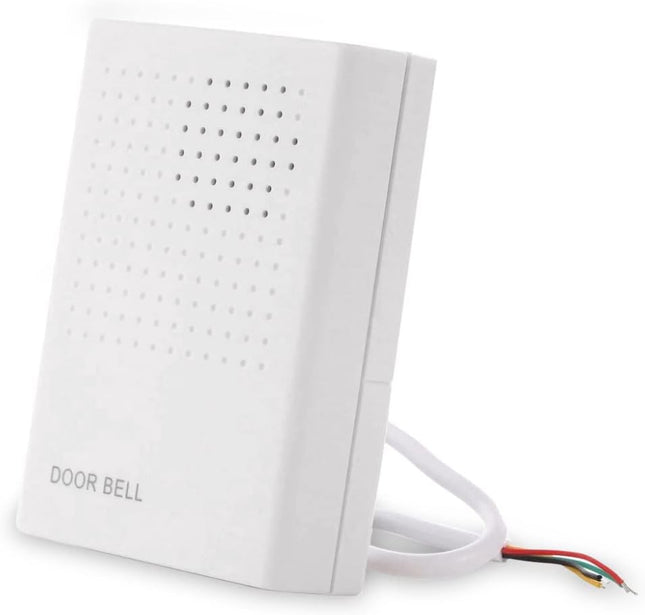

Easy & simple installation, you need to connect it with 12V power supply
Can be wall hanging or stick with double side tape
120 decibels volume, clear ringtone
This doorbell is suitable for all types of access control systems.
Exquisite appearance and stable performance.
Easy & simple installation, you need to connect it with 12V power supply
Can be wall hanging or stick with double side tape
120 decibels volume, clear ringtone
This doorbell is suitable for all types of access control systems.
Exquisite appearance and stable performance.
The most innovative, quick and advanced 7 frequency RFID copier ID/IC reader writer/replicator. An excellent tool for Businesses like Realestate, Offices, Event Management, Schools, Hospitals as well as for Home & Personal use.
RB-X7-B device has an HD 240x320 full color screen, with clear display & builitn rechargeable battery.
Can replicate frequencies 125khz, IC Type A/B 13.56MHz (ISO 1443), 175khz, 250khz, 300khz, 375khz, and 500khz. This advanced decoding and duplication capabilities can quickly and accurately copy compatible cards.
NFC Ready, With its advanced decoding and duplication capabilities, this copier can quickly and accurately duplicate NTAG213 and NTAG215 chips, as well as other popular tag types
Use Rubik CloneFlex blank cards for writing cards or making copies. Please ensure source card and destination card frequency is matching.Encrypted cards, Active cards, and Brands like HID, Honeywell, Watchnet or similar standards are not supported.
Note: This device can not copy Encrypted and Long range RFID Cards / UHF cards/tags.
This handheld RFID reader writer device equipped with CopyKey Firmware is one of most dependable & successful. Whether you are a real-estate business and wants to issue cards to your tenants for Parking or Building entrance or you are an individual wants to make copy of your Apartment/Villa entrance door access card, this device is all you need.
Effortlessly duplicate your RFID card (certain type of cards only) using Smart Clone feature. Compatible with multiple formats such as 125Khz, IC Type-A, Mifare Classic, HID 125Khz (excluding HID Long Format), and more.
11 Supported Frequency: 125KHz, 13.56MHz (Mifare, IC TYPE-A, IC, ISO1443A/B), 175KHz, 250KHz, 300Khz, 375KHz, 500KHz, 625KHz, 750KHz, 875KHz, 1000KHz. (Non encrypted cards/tags only)
Smart Clone: Automatically detects RFID cards frequencuy, and enables writing after a successful read. (Note: Encrypted cards and unsupported frequencies cannot be read. Please contact us for assistance. )
Use with Rubik blank RFID cards only. These cards have CloneFlex properties. If you 'll use with non supported cards, writing will fail.
Limitations: This device does not support high encrypted cards or certain notable brands such as HID iClass, HID Seos, Watchnet, Nedap, Honeywell, AWID, Keri, and other similar secure standards. Additionally, it cannot copy long-distance cards.
Legal Warning: Our devices are perfect for businesses needs such as real-estate industry, for managing school, universities office access control, as well as for research and education purpose in degree programs. It is individual responsibility to ensure product is not used against the law and ethics. Please refer to your local laws before purchase and use.
To ensure safety and compliance in access control and fire safety systems use this Break Glass Emergency Door Release Switch. Designed for emergency use, this manual override switch allows immediate unlocking of electronically controlled doors in the event of fire, power failure, or other emergencies.
Clear and visible "Break Glass", the unit offers quick and intuitive activation. Breaking the glass instantly triggers the internal switch mechanism, sending a signal to release the connected locking device (e.g., electromagnetic locks) and allowing safe and rapid egress.
Key Features:Instantly unlocks electronic doors when the glass is broken
Compatible with Access Control Systems, Ideal for magnetic locks, door strikes, and alarm triggers
High-quality ABS or metal casing with replaceable tempered glass panel
Electrical Rating: Typically 12V/24V, NO/NC output contacts
Standard Size: Easy to install in most electrical back boxes or surface mount enclosures
Resettable/Replaceable Glass Panel Glass can be easily replaced after activation
Applications: Fire exits, access-controlled buildings, commercial complexes, hospitals, schools, and more
This Rubik® handheld RFID reader writer device is one of most dependable & successful. Whether you are a real-estate business and wants to issue cards to your tenants for Parking or Building entrance or you are an individual wants to make copy of your Apartment/Villa entrance door access card, this device is all you need.
10 frequency RFID copier ID/IC reader writer. HD 3.2 inch full color screen, with clear display.
Can replicate these frequencies IC Type-A, ID-125 KHz (T5577/TK4100), HID-125KHz (some series) ID-250 KHz, ID-500 KHz, ID-375 KHz, ID-625 KHz, ID-750 KHz, ID-875 KHz, ID-l000 KHZ, IC 13.56 MHz.
Encrypted cards are not supported. For 13.56mHz encryption cards, This device only supports partial sector encryption IC card, does not support all sectors encryption IC card. To decode encryption card, you need to connect the reader to a PC and then use third party decoding software.
Note: This device can not copy Long range RFID Cards / UHF cards/tags (such as cards which are on your car dashboard and barrier opens automatically once you reach near).
Note: Brands like HID iClass, HID Desfire, Honewell, Watchnet, Nedap, AWID, Keri and other on same standards are not supported. Centralized systems are not supported.
Legal Warning: Our devices are perfect for businesses needs such as real-estate industry, for managing school, universities office access control, as well as for research and education purpose in degree programs. It is individual responsibility to ensure product is not used against the law and ethics. Please refer to your local laws before purchase and use.
This Rubik® handheld RFID reader writer device is one of most dependable & successful. Whether you are a real-estate business and wants to issue cards to your tenants for Parking or Building entrance or you are an individual wants to make copy of your Apartment/Villa entrance door access card, this device is all you need.
10 frequency RFID copier ID/IC reader writer. HD 3.2 inch full color screen, with clear display.
Can replicate these frequencies IC Type-A, ID-125 KHz (T5577/TK4100), HID-125KHz (some series) ID-250 KHz, ID-500 KHz, ID-375 KHz, ID-625 KHz, ID-750 KHz, ID-875 KHz, ID-l000 KHZ, IC 13.56 MHz.
Encrypted cards are not supported. For 13.56mHz encryption cards, This device only supports partial sector encryption IC card, does not support all sectors encryption IC card. To decode encryption card, you need to connect the reader to a PC and then use third party decoding software.
Note: This device can not copy Long range RFID Cards / UHF cards/tags (such as cards which are on your car dashboard and barrier opens automatically once you reach near).
Note: Brands like HID iClass, HID Desfire, Honewell, Watchnet, Nedap, AWID, Keri and other on same standards are not supported.
Legal Warning: Our devices are perfect for businesses needs such as real-estate industry, for managing school, universities office access control, as well as for research and education purpose in degree programs. It is individual responsibility to ensure product is not used against the law and ethics. Please refer to your local laws before purchase and use.
