Description

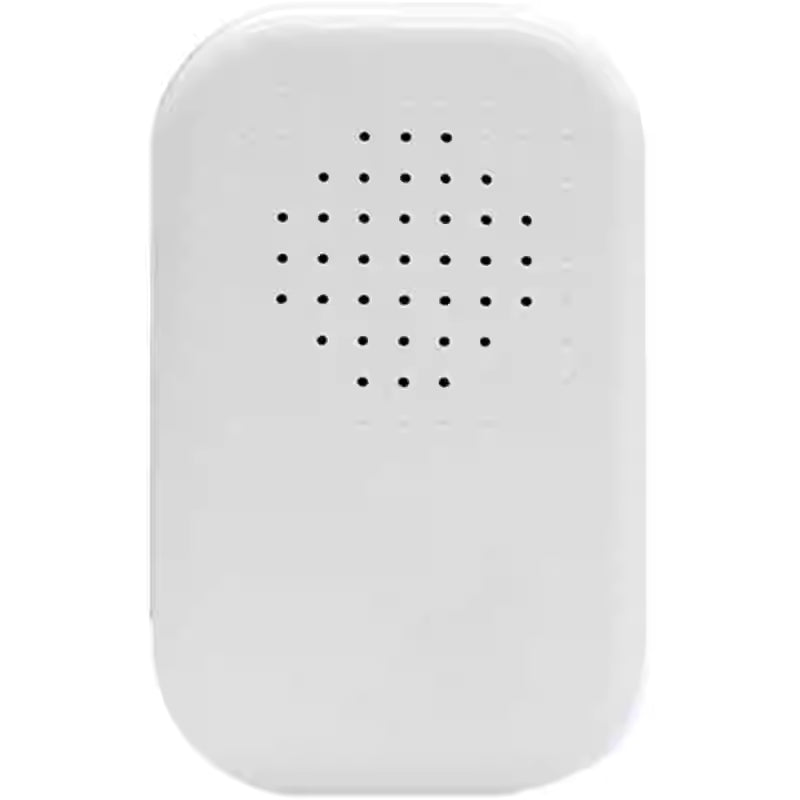

The ZKTeco B06 12V Wired Doorbell is a durable and efficient electronic doorbell designed to seamlessly integrate with access control systems. It operates on a wired 12V DC power supply, eliminating the need for batteries, and provides a clear and pleasant “Dingdong” chime that is ideal for hotels, offices, homes, and public buildings.
Built with high-quality ABS fire-resistant material, this doorbell ensures reliable performance and enhanced safety. Its 90 dB sound output delivers a loud and clear tone that can be heard easily in busy environments. The B06 is designed for easy installation, with straightforward wiring: simply connect the red wire to positive (+) and the black wire to negative (−) on a DC 12V power source.
Compact in size yet powerful in performance, the B06 operates reliably under a wide temperature range of -10°C to 80°C and humidity below 80%, making it suitable for various indoor applications.

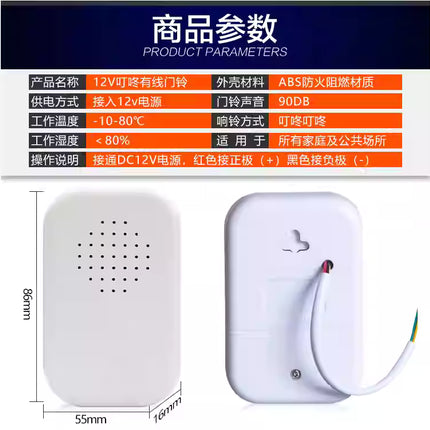

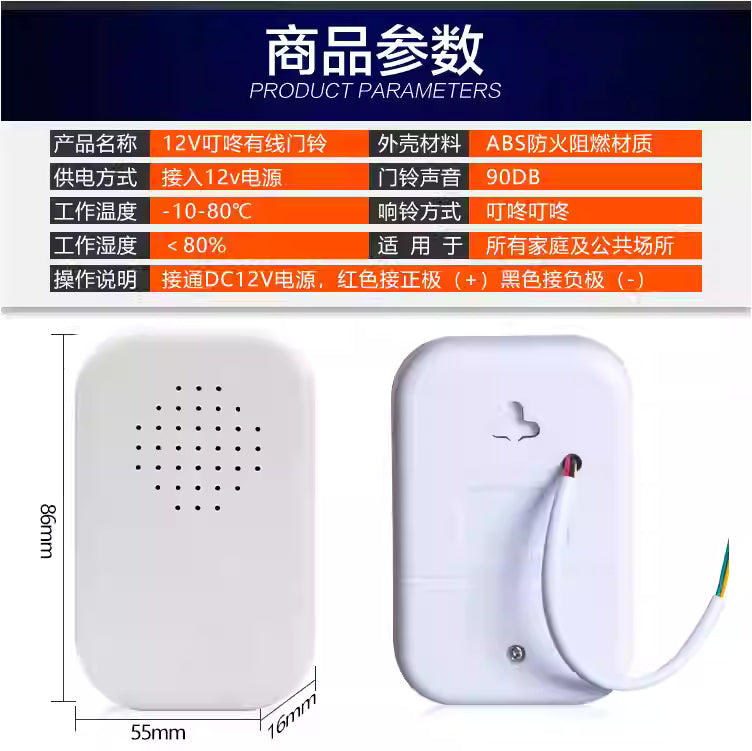

12V Wired Doorbell B06 Product Specifications
Specifications for 12V Wired Electronic Dingdong Music Doorbell
| Parameter |
Specification |
| Product Name |
12V Wired Doorbell |
| Material |
ABS Fire-Resistant Material |
| Power Supply |
DC 12V (Wired) |
| Doorbell Sound |
90 dB |
| Operating Temperature |
-10°C to 80°C |
| Sound Type |
Dingdong |
| Operating Humidity |
Less than 80% |
| Application |
Suitable for all households and public places |
| Connection Instructions |
Connect DC 12V power: Red wire to positive (+), Black wire to negative (−) |
| Dimensions |
86 mm × 55 mm × 16 mm |
