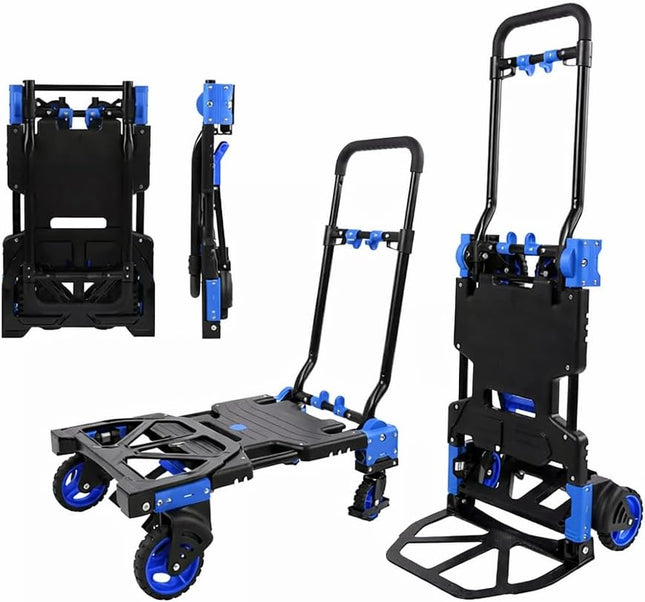

Convertible hand truck that transforms between a 2-wheel upright dolly cart /trolley and a 4-wheel platform cart. Model RB-FW90TP features aluminum and steel construction with foldable design for compact storage. Available in black and blue color scheme.
Specifications Summary
Material: Aluminum, High Carbon Steel, Polypropylene, Rubber, TPR
Color: Black/Blue
Net Weight: 7kg (7.1kg)
2-wheel capacity: 68-70kg
4-wheel capacity: 136-137kg
Platform size (4-wheel): L45 x W78 x H68/80/92cm
Hand truck size (2-wheel): L45 x W42 x H100cm
Folded size: L45 x W41 x H110cm
Base plate: 45cm x 16cm
Handle heights: 68cm, 80cm, 92cm
Wheel diameter: 3.5 inches (9cm)
Wheels: Fully foldable
Assembly: Pre-assembled
2-in-1 Convertible Design
The RB-FW90TP can be configured as either a 2-wheel hand truck or a 4-wheel platform cart. To switch between modes, press the levers to unlock the handle and adjust the base plate position. Push the handle slightly forward and backward while pressing levers to unlock, then lift the handle up for 2-wheel cart usage. The conversion process takes seconds and requires no tools.
Two-Wheel Hand Truck Mode
In the 2-wheel configuration, the unit can be tilted back so the weight of the load is supported by the wheels. This mode is designed for maneuvering through narrow spaces, doorways, and up or down stairs. The 2-wheel mode supports loads up to 68kg (70kg in some specifications). The upright position provides better control when navigating tight areas or uneven surfaces.
Four-Wheel Platform Cart Mode
By flipping down the additional two wheels, the hand truck converts to a stable 4-wheel platform cart. This configuration provides increased stability and support for larger or bulkier loads. The 4-wheel mode supports loads up to 137kg. This mode is suitable for transporting large boxes, furniture, appliances, or multiple items simultaneously over longer distances on flat surfaces.
Load Capacity
The unit has dual load capacity ratings depending on configuration. As a 2-wheel hand truck, it supports up to 68-70kg. As a 4-wheel platform cart, it supports up to 136-137kg. The increased capacity in 4-wheel mode is due to the distributed weight across four contact points and the stable platform base.
Construction and Materials
The frame is constructed from aluminum and high carbon steel for strength while maintaining light weight. Stress points are reinforced with nylon components. Additional parts are made from polypropylene and rubber materials. The TPR (thermoplastic rubber) grip handle provides comfortable handling. The entire unit weighs 7kg (7.1kg), making it portable and easy to maneuver when empty.
Adjustable Handle
The handle features multiple height positions at 68cm, 80cm, and 92cm. Height adjustment is controlled by press levers located on the handle assembly. Users can select the height that provides the most comfortable operating position based on their height and the task requirements. The TPR grip provides a non-slip surface for secure handling.
Dimensions
As a platform hand truck (4-wheel mode): 45cm length x 78cm width x 68/80/92cm height (depending on handle position). As a hand truck (2-wheel mode): 45cm length x 42cm width x 100cm height. The base plate measures 45cm x 16cm. The overall size when folded is 45cm x 41cm x 110cm.
Wheels and Mobility
The unit is equipped with wheels that can be completely folded for storage. Wheel specifications from the uploaded image show 3.5-inch/9cm diameter wheels. The wheels are made from materials suitable for indoor and outdoor use on various surfaces.
Foldable Storage Design
The hand truck folds flat in seconds for space-saving storage. The wheels fold completely against the frame, and the handle collapses down. When folded, the unit can be stored in closets, vehicle trunks, or against walls. The compact folded dimensions minimize storage space requirements.
Assembly
The unit arrives fully assembled and ready to use straight out of the box. No assembly or setup is required.
Applications
Suitable for warehouses, offices, homes, delivery services, retail stores, hotels, and any environment requiring material transport. Can be used for moving boxes, equipment, furniture, appliances, inventory, supplies, and general cargo.

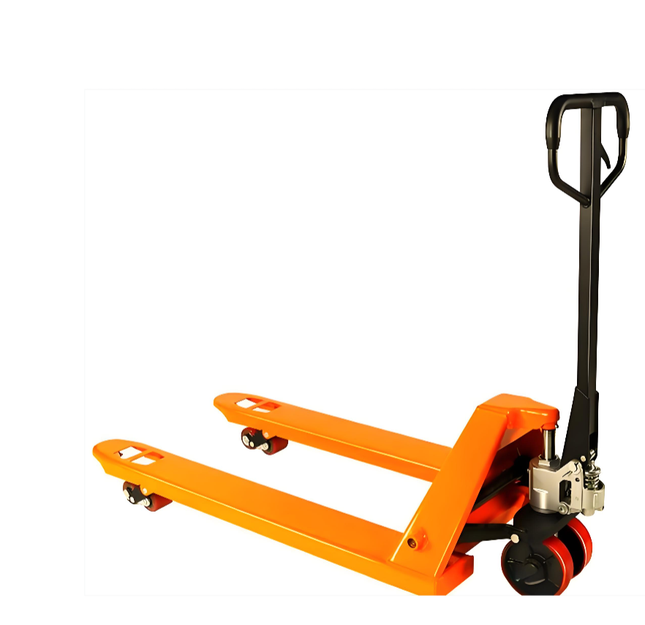

Silent wheels heavy-duty pallet mover truck designed for efficient material handling in warehouses, distribution centers, and industrial facilities. 3 Ton Heavy-Duty Pallet Jack, also known as Manual Forklift, and used as Hand Trolley for Warehouse, Factory, and Industrial Use
Key Specifications:
Model: RB-PMG-V-685
Capacity: 3 tons
Fork Width (Outside): 685mm
Fork Width (Inside): 365mm
Fork Length: 1150mm
Lift Height Range: 80mm - 200mm
Wheels: Silent Wheels (PU)
Build: One-piece cast
Type: Hydraulic Cylinder
Features & Benefits:
Robust construction for heavy-duty industrial use
Smooth hydraulic lifting mechanism
Ergonomic handle design for operator comfort
Durable wheels for easy maneuverability
Ideal for loading, unloading, and transporting palletized goods
Suitable for warehouses, factories, and logistics operations
Perfect for businesses requiring reliable material handling equipment with professional-grade performance and durability.
Silent wheels heavy-duty pallet mover truck designed for efficient material handling in warehouses, distribution centers, and industrial facilities. 3 Ton Heavy-Duty Pallet Jack, also known as Manual Forklift, and used as Hand Trolley for Warehouse, Factory, and Industrial Use
Key Specifications:
Model: RB-PMG-V-550
Capacity: 3 tons
Fork Width (Outside): 550mm
Fork Width (Inside): 230mm
Fork Length: 1150mm
Lift Height Range: 80mm - 200mm
Wheels: Silent Wheels (PU)
Features & Benefits:
Robust construction for heavy-duty industrial use
Smooth hydraulic lifting mechanism
Ergonomic handle design for operator comfort
Durable wheels for easy maneuverability
Ideal for loading, unloading, and transporting palletized goods
Suitable for warehouses, factories, and logistics operations
Perfect for businesses requiring reliable material handling equipment with professional-grade performance and durability.
