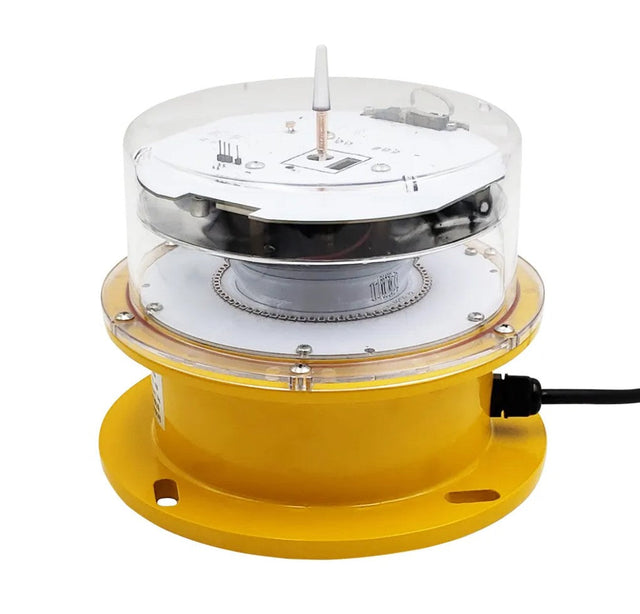

Rubik RBMB01(L) Medium Intensity Type B Aviation Obstruction Light, engineered to meet ICAO Annex 14 and CAAC MH6012-2015 / FAA L-864 standards. Built for demanding environments across world, including the UAE, Dubai, and the wider Middle East, this high-performance LED warning light delivers powerful 2000cd Red color flashing illumination at night for towers, chimneys, bridges, and high-rise structures where reliable aviation marking is critical. Key Features High-intensity casting aviation aluminum shell, fully sealed and corrosion-resistant structure High-efficiency SMT LED chip combined with reflective optical structure for maximum brightness Advanced management circuit with strong lightning protection and 5KA surge protection device ICAO Annex 14 and CAAC MH6012-2015 approved for international aviation compliance IP68 protection rating, fully waterproof and dustproof for outdoor installation Impact resistant, anti-lightning, anti-snow, anti-sunlight, withstands typhoons and hail up to 240 km/h Operates at extreme altitudes up to 5500m or more above sea level Wide operating temperature range from -56 degrees C to +66 degrees C 200,000 hour LED lifespan for minimal maintenance and maximum reliability Optional GPS Beidou wireless sync, LORA-10KM wireless sync, remote control and telemetering Specifications Specification Details Model Number RBMB01(L) Item Number TX-MB-01(L) Type Medium Intensity Type B Standard CAAC MH6012-2015 / ICAO Annex 14 Volume I / FAA L-864 Power Supply AC 220V / DC 12V / 24V / 48V (Optional) Working Mode Flashing Flash Frequency 30 times per minute Light Intensity (Night) 2000 cd Light Source LED Light Source Lifespan 200,000 hours Emitted Color Red Horizontal Output 360 degrees Overall Height 204 mm Body Height 166 mm Base Diameter (Outer) 215 mm Base Diameter (Mid) 200 mm Base Diameter (Inner) 185 mm Mounting Hole Diameter 10 mm Surge Protection 5KA Anti-Wind Ability 240 km/h Protection Grade IP68 Ambient Temperature -56 degrees C to +66 degrees C Operating Altitude 5500 m or more above sea level Weight 2.3 kg Applications Designed for use across world and suitable for the UAE and Middle East on airports, communication towers, chimneys, bridges, high-pole lamps, super high-rise buildings, blocks, and construction sites requiring durable, ICAO/FAA-compliant medium intensity aviation warning lights. A trusted safety solution for infrastructure and regional aviation compliance projects. Usage Notes Use only within the specified nominal voltage range to avoid equipment damage. Do not open the device while out of operation due to internal high pressure risk. After installation, verify waterproofing and confirm all screw spikes are tightened. Device maintenance must be performed by qualified professionals only.

Read more less

Rubik dual-mode RBMAB029(L) Medium Intensity Type AB Aviation Obstruction Light. Delivering 20,000cd white flashing illumination in daytime and 2,000cd red flashing at night, automatically controlled by photocell, this Type AB unit meets ICAO Annex 14 (8th Edition), CAAC MH/T 6012-2015, AC-137-CA-2017, and FAA Advisory Circular 150/5345-43J meeting FAA L-865 and FAA L-864. Built for demanding environments across the world including UAE, Dubai, and the wider Middle East, it is the complete single-unit solution for towers, chimneys, bridges, and high-rise structures requiring full day and night aviation safety marking. Key Features Housing adopts high intensity casting aviation aluminum, fully sealed structure for maximum durability High efficiency SMT LED chip combined with three layers overlay reflective optical structure for high brightness and long lifespan Advanced independent R&D optical lighting system, spotlight angle meets CAAC and ICAO requirements Surge protection device rated 5KA for extremely harsh working environments Advanced thermal conductive stoving varnish technology for excellent heat dissipation, reduced weight and volume Impact resistant, anti-lightning, resistant to sunlight, anti-snow, withstands typhoons, hail and severe weather up to 240 km/h Over-current protection function for long-term reliability Optional GPS Beidou wireless synchronization, LORA-10KM wireless sync, remote control and telemetering IP68 protection rating, fully waterproof and dustproof for permanent outdoor installation Automatic day/night switching via built-in photocell at 50/100 Lux Electric shock protection built in Operates at altitudes of 5500m or more above sea level Performed Standards Authority Standard Scope CAAC MH/T 6012-2015 and AC-137-CA-2017 Aviation obstruction light ICAO ICAO Annex 14 Volume I The 8th Edition Airport design and operation FAA Advisory Circular 150/5345-43J Specification for Obstruction Lighting Equipment Specifications Specification Details Model Number RBMAB029(L) Item Number Type Medium Intensity Type AB / FAA L-865 and FAA L-864 Power Supply AC 220V / DC 180V Power Frequency 50Hz to 60Hz Average Power Consumption 10.5W or less Working Mode Flash 20 to 60 times per minute Effective Intensity (Daytime) 20,000 cd white Effective Intensity (Nighttime) 2,000 cd red Emitted Color White at daytime, red at night (auto photocell switching) Light Source LED Light Source Lifespan 200,000 hours or more Shell Material Aviation aluminum alloy Luminous Mirror Material Optical PC Vertical Divergence 3 degrees Horizontal Output 360 degrees Overall Size 267 x 267 x 295 mm Installation Size Phi 245 x 4 x M10 Photocell Ambient Brightness 50 / 100 Lux Ambient Temperature -46 degrees C to +66 degrees C Relative Humidity 0% to 95% Protection Grade IP68 Wind Load 240 km/h Weight 4.6 kg (mounting bracket not included) Surge Protection Rating 5KA Electric Shock Protection Yes Leakage Current Less than 10uA Insulation Characteristic 1.414kVDC, 10s no breakdown between input and shell Seismic Resistance 10 to 500Hz, 2G, 10 min/cycle, XYZ 60 minutes per axis Mean Time Between Failure 200,000 hours or more, MIL-HDBK-217F (25 degrees C) EMC Standards Emitted EN55022 (CISPR22) Class A, Harmonic EN61000-3-2 and -3 Operating Altitude 5500 m or more above sea level Rain Resistance Can be exposed to rain in any wind direction Salt Spray Can be exposed to salt spray Radiation Can be exposed to solar radiation Applications Designed for aviation safety marking across the UAE and Middle East on airports, communication towers, chimneys, bridges, high mast lamps, super high-rise buildings, blocks, and telecom towers requiring a single-unit ICAO and FAA-compliant medium intensity Type AB aviation warning light covering both daytime and nighttime requirements. Usage Notes Use only within the specified nominal voltage range to avoid equipment damage. Do not open the device while out of operation due to internal high pressure risk. After installation, verify waterproofing and confirm all screw spikes are tightened. Device maintenance must be performed by qualified professionals only.

Read more less

The Rubik MIOL RB-MIA3(L) is a white flashing LED medium intensity aviation obstruction light designed for obstacle marking applications requiring ICAO Medium Intensity Type A / FAA L-865 light characteristics. (ICAO and FAA Compliant).  The light operates at 20,000 cd during daytime and twilight and 2,000 cd at night. It is supplied with a 30 flashes per minute (FPM) configuration, built in photocell for automatic day and night operation, and GPS synchronized flashing for installations using multiple compatible obstruction lights. Product Specifications Brand Rubik Model RB-MIA3(L) Product Type LED Medium Intensity Aviation Obstruction Light ICAO Classification Medium Intensity Type A Light Colour White Operation Flashing Day Intensity 20,000 cd Twilight Intensity 20,000 cd Night Intensity 2,000 cd Flash Rate 30 FPM Light Source High Intensity LED Horizontal Light Output 360° Vertical Divergence 3° Photocell Built in Day / Night Control Automatic photocell controlled operation Synchronization Built in GPS synchronized flashing Operating Voltage 110 to 240 VAC Instantaneous Power 600 W Average Power ≤19 W at 30 FPM, manufacturer reference specification Circuit Protection Integrated Surge Protection L to N IEC 61000-4-5, ±3 kV Surge Protection L to PE IEC 61000-4-5, ±6 kV Surge Protection N to PE IEC 61000-4-5, ±6 kV Electrostatic Protection IEC 61000-4-2, 8 kV contact discharge Optical Body Material UV protected polycarbonate Base Material Powder coated die cast aluminium Housing Colour Yellow Overall Dimensions 229 × 229 × 168 mm Mounting 190 × 190 mm, Ø12 mm mounting holes Weight Approximately 3.5 kg Operating Temperature -40°C to +55°C Storage Temperature -55°C to +70°C Humidity 10% to 95% RH, non condensing Wind Speed Rating 240 km/h Ingress Protection IP66 LED Life Reference >100,000 hours Product Life Expectancy 10+ years, manufacturer stated specification Country of Manufacture China Light Intensity and Operating Modes Operating Condition Colour Intensity Operation Day White 20,000 cd Flashing Twilight White 20,000 cd Flashing Night White 2,000 cd Flashing Flash Rate White 30 FPM GPS synchronized Standards and References ICAO ICAO Annex 14, Volume I, Medium Intensity Type A FAA Reference FAA L-865 Ingress Protection IP66 Surge Protection Standard IEC 61000-4-5 Electrostatic Discharge Standard IEC 61000-4-2 The obstruction light uses a high intensity LED optical system inside a UV protected polycarbonate enclosure. The optical system provides 360° horizontal output with a specified 3° vertical divergence. The base is manufactured from powder coated die cast aluminium. The enclosure is rated IP66 and is specified for outdoor operation from -40°C to +55°C, relative humidity from 10% to 95% RH without condensation, and wind speeds up to 240 km/h. The RB-MIA3(L) includes GPS synchronization for coordinated flashing between multiple compatible obstruction lights. This allows separate installed units to maintain synchronized flash timing without a direct synchronization cable between each light. Automatic Day and Night Operation The built in photocell automatically controls the operating intensity according to ambient light conditions. Day 20,000 cd Twilight 20,000 cd Night 2,000 cd Typical Applications The Rubik RB-MIA3(L) is intended for fixed obstacle marking applications where a white flashing medium intensity obstruction light is specified by the applicable aviation authority or approved obstruction lighting design. High rise buildings High chimneys Telecommunication towers GSM towers Microwave towers TV towers High poles and masts Tower cranes Wind turbines Industrial structures Other elevated fixed obstacles The required number of obstruction lights, mounting height, spacing, intermediate lighting levels and complete obstruction lighting arrangement should be determined according to the applicable aviation authority requirements and the approved obstacle lighting design for the structure. Note: Mounting brackets, mounting structures and project specific accessories are not included unless specifically stated in the quotation or order.

Read more less

The Rubik RB-MIA3/B3(L) is a dual color LED medium intensity aviation obstruction light combining a medium intensity white flashing light for daytime and twilight operation with a red flashing light for night operation. ICAO and FAA compliant. The white daytime mode provides a nominal intensity of 20,000 cd, while the red nighttime mode provides a nominal intensity of 2,000 cd. The optical system provides 360° horizontal coverage with a specified 3° vertical divergence. The unit is designed for aviation obstacle marking applications requiring automatic transition between daytime white obstruction lighting and nighttime red obstruction lighting. A built in photocell controls the operating mode according to ambient light conditions. Product Specifications Brand Rubik Model RB-MIA3/B3(L) Product Type LED Medium Intensity Dual Color Aviation Obstruction Light Light Configuration White Day / Twilight and Red Night ICAO White Light Classification Medium Intensity Type A ICAO Red Light Classification Medium Intensity Type B / C FAA White Light Reference L-865 FAA Red Light Reference L-864 Day Light Colour White Twilight Light Colour White Night Light Colour Red Day Intensity ≥20,000 cd White Night Intensity ≥2,000 cd Red Light Source Medium Intensity LED Horizontal Light Output 360° Vertical Divergence 3° Flash Rate 30 flashes per minute Standard Factory Flash Rate 30 FPM Day / Night Switching Automatic Photocell Built in GPS Synchronization Available  Operating Voltage 110 to 240 VAC Instantaneous Power, Red Mode 40 W Instantaneous Power, White Mode 600 W Average Power, Red Mode 7.5 W at 30 FPM Average Power, White Mode 19 W at 30 FPM Circuit Protection Integrated Body Material UV protected polycarbonate Base Material Powder coated die cast aluminium Mounting 190 × 190 mm, Ø12 mm mounting holes Overall Dimensions 236 × 236 × 215 mm Weight Approximately 4 kg Humidity 0% to 100% Wind Speed Rating 80 m/s Ingress Protection IP66 LED Life Reference >100,000 hours Product Life Expectancy 10+ years, manufacturer stated specification Day, Twilight and Night Operation Operating Mode Colour Intensity Operation Day White ≥20,000 cd Flashing Twilight White Medium intensity white operating mode Flashing Night Red ≥2,000 cd Flashing ICAO and FAA References ICAO Standard Reference ICAO Annex 14 Volume I, Aerodrome Design and Operations ICAO White Day Mode Medium Intensity Type A White Obstruction Light ICAO Red Night Mode Medium Intensity Type B  Red Obstruction Light FAA White Light Reference FAA L-865 FAA Red Light Reference FAA L-864 Ingress Protection IP66 Dual Color Operation The RB-MIA3/B3(L) combines white and red LED obstruction lighting in a single housing. The built in photocell automatically changes the operating mode according to ambient lighting conditions. During daylight and twilight conditions, the unit operates using the white LED obstruction light. At night, the unit changes to the red LED obstruction light. This arrangement allows one obstruction light assembly to provide both daytime white and nighttime red aviation obstacle marking. Optical Characteristics The optical system provides 360° horizontal light distribution with a specified vertical divergence of 3°. The daytime white LED section is rated at 20,000 cd or greater, while the nighttime red LED section is rated at 2,000 cd or greater. Automatic Photocell Control A built in photocell detects ambient light conditions and automatically switches between the white daytime operating mode and red nighttime operating mode. This eliminates the need for manual switching between daytime and nighttime obstruction lighting modes during normal operation. GPS synchronized flashing is available for installations requiring multiple compatible obstruction lights to flash at coordinated intervals. GPS synchronization allows individual units to maintain coordinated flash timing without requiring a synchronization cable between each obstruction light. The optical housing is manufactured from UV protected polycarbonate. The base is manufactured from powder coated die cast aluminium for outdoor installation. The enclosure provides IP66 ingress protection and is specified for wind speeds up to 80 m/s. Electrical Characteristics Input Voltage 110 to 240 VAC Red Mode Instantaneous Power 40 W White Mode Instantaneous Power 600 W Red Mode Average Power 7.5 W at 30 FPM White Mode Average Power 19.5 W at 30 FPM Circuit Protection Integrated Physical Dimensions Overall Diameter / Width 236 mm Overall Height 215 mm Overall Dimensions 236 × 236 × 215 mm Mounting Pattern 190 × 190 mm Mounting Hole Diameter Ø12 mm Weight Approximately 4 kg Typical Applications The Rubik RB-MIA3/B3(L) is intended for marking elevated structures where a dual color medium intensity aviation obstruction lighting system is specified by the applicable aviation authority, consultant or approved obstacle lighting design. High rise buildings High chimneys Telecommunication towers GSM towers Microwave towers Television towers High poles and masts Tower cranes Wind turbines Industrial structures Other elevated fixed obstacles The manufacturer's reference application covers obstacle heights approximately 45 to 150 metres. The required light quantity, mounting levels, spacing and complete obstruction lighting arrangement must be determined according to the applicable aviation authority requirements and the approved obstacle lighting design. Available Functions and Options Built In Photocell Available GPS Synchronized Flashing Available Dry Contact Alarm Output Optional - Customized RS485 Communication Optional - Customized NVG Compatible Infrared LED Optional - Customized Bird Deterrent Spike Optional - Customized Important Installation Information The mounting bracket is not included unless specifically stated in the quotation or order. Mounting brackets can be selected or fabricated according to the installation structure. Final obstacle lighting configuration, mounting height, quantity, spacing and approval remain subject to the requirements of the applicable civil aviation authority, airport authority, consultant and approved project specification.

Read more less

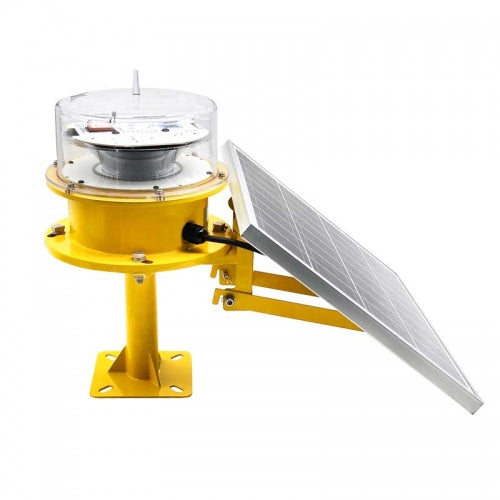

Power your aviation safety infrastructure without grid dependency. The Rubik RBMB01(L)-SOLAR Solar Powered Medium Intensity Type B Aviation Obstruction Light delivers reliable 2000cd red flashing illumination for towers, chimneys, bridges, and high-rise structures, fully compliant with ICAO Annex 14, CAAC MH/T 6012-2015, AC-137-CA-2017, and FAA Advisory Circular 150/5345-43J. Engineered for demanding environments across world and specially for the UAE, Dubai, and the wider Middle East, this self-contained solar unit eliminates cabling costs and operates in complete off-grid locations. Key Features Housing adopts high intensity casting aviation aluminum, fully sealed and corrosion-resistant structure Advanced independent R&D optical lighting system, spotlight angle meets CAAC and ICAO requirements Surge protection device rated for extremely harsh working environments High conversion efficiency monocrystalline silicon chip with service life of more than 20 years Impact resistant, anti-lightning, resistant to sunlight, anti-snow, withstands typhoons, hail and severe weather up to 240 km/h Built-in independent battery charge and discharge management module for easy maintenance Optional GPS Beidou wireless synchronization, LORA-10KM wireless sync, remote control and telemetering Integrated high-power 25W solar panel design with high charging efficiency IP68 protection rating, fully waterproof and dustproof for permanent outdoor installation Lithium iron phosphate battery with 12.8V 12AH capacity for reliable overnight operation Performed Standards Authority Standard Scope CAAC MH/T 6012-2015 and AC-137-CA-2017 Aviation obstruction light ICAO ICAO Annex 14 Volume I The 8th Edition Airport design and operation FAA Advisory Circular 150/5345-43J Specification for Obstruction Lighting Equipment Specifications Specification Details Model Number RBMB01(L)-SOLAR Item Number TX-MB-01(L) Type Medium Intensity Type B Power Supply Solar power supply (DC) Average Power Consumption 2.5W or less Solar Panel Power 25W monocrystalline silicon Battery Type Lithium iron phosphate battery Battery Capacity 12.8V 12AH Working Mode Flashing Flash Frequency 20 times per minute Effective Intensity (Night) 2000 cd (default 1600 cd or more) Light Source LED Light Source Lifespan 200,000 hours or more Emitted Color Red Shell Material Aviation dedicated aluminum alloy Luminous Mirror Material Optical PC Vertical Divergence 3 degrees Horizontal Output 360 degrees Overall Size (with panel) 466 x 370 x 350 mm (L x W x H) Installation Size 80 x 80 mm, M8 Photocell Stage 50 / 100 Lux Ambient Temperature -40 degrees C to +55 degrees C Relative Humidity 0% to 95% Protection Grade IP68 Wind Load 240 km/h Weight Approximately 6 kg Seismic Resistance 10 to 500Hz, 2G, 10 min/cycle, XYZ 60 minutes per axis Mean Time Between Failure 200,000 hours or more, MIL-HDBK-217F (25 degrees C) EMC Standards Emitted EN55022 (CISPR22) Class A, Harmonic EN61000-3-2 and -3 Operating Altitude 5500 m or more above sea level Rain Resistance Can be exposed to rain in any wind direction Salt Spray Can be exposed to salt spray Radiation Can be exposed to solar radiation Applications Ideal for off-grid and remote installations across the World, as well as in UAE and Middle East including airports, communication towers, chimneys, bridges, high mast lamps, high-rise buildings, blocks, and telecom towers requiring durable, ICAO FAA CAAC GCAA - compliant medium intensity aviation warning lights without grid power access. Usage Notes If storage time exceeds 3 months, place the product outdoors in sunshine for 3 days every 3 months to prevent battery damage. Installation personnel must check that the power switch is on and fixing screws are tightened after installation. Non-professional personnel should not repair the equipment to avoid enlarging the fault and personal injury. For solar product storage, strictly comply with the provisions provided in the product documentation.

Read more less

Never compromise on aviation safety in off-grid locations. The RBMB01(L)-SOLAR-DUAL is a fully self-contained dual-head solar powered medium intensity aviation obstruction light combining Type A daytime white illumination at 20,000cd and Type B nighttime red flashing at 2000cd, 30 flashes per minute. Classified under FAA L-865 (daytime) and FAA L-864 (nighttime), and fully compliant with ICAO Annex 14, CAAC MH/T 6012-2015, AC-137-CA-2017, and FAA Advisory Circular 150/5345-43J. Engineered for demanding environments across the UAE, Dubai, and the wider Middle East, this integrated dual-beacon unit eliminates cabling costs and grid dependency entirely. Key Features Dual Type A and Type B operation: 20,000cd white light in daytime, 2000cd red flashing at night, automatically controlled by photocell Integrated design with solar panel and LiFePO4 battery built in for a compact, all-in-one installation High-tech control chip for precise battery status monitoring and charge management Special dual LED chip design with high light intensity and no optical dark area Solar panel angle is adjustable to fully absorb solar energy in any installation orientation Housing adopts high intensity casting aviation aluminum, fully sealed and corrosion-resistant structure Advanced independent R&D optical lighting system, spotlight angle meets CAAC and ICAO requirements Surge protection device rated for extremely harsh working environments High conversion efficiency monocrystalline silicon chip with service life of more than 20 years Impact resistant, anti-lightning, resistant to sunlight, anti-snow, withstands typhoons and hail up to 240 km/h Built-in double-layer light source design with primary and secondary backup, automatically switches to secondary source if primary is damaged Optional GPS Beidou wireless synchronization, LORA-10KM wireless sync, remote control and telemetering IP68 protection rating, fully waterproof and dustproof for permanent outdoor installation Performed Standards Authority Standard Scope CAAC MH/T 6012-2015 and AC-137-CA-2017 Aviation obstruction light ICAO ICAO Annex 14 Volume I The 8th Edition Airport design and operation FAA Advisory Circular 150/5345-43J (L-865 and L-864) Specification for Obstruction Lighting Equipment Specifications Specification Details Model Number RBMB01(L)-SOLAR-DUAL Item Number TX-MB-01(L) Dual Solar Type Medium Intensity Type A (Day) and Type B (Night) Dual Beacon FAA Classification L-865 (Daytime) and L-864 (Nighttime) Power Supply Solar power supply (DC) Power Frequency DC supply Average Power Consumption 2.5W or less Solar Panel Power 25W monocrystalline silicon Battery Type Lithium iron phosphate battery (LiFePO4) Battery Capacity 12.8V 12AH Working Mode Flashing (auto day/night switching via photocell) Flash Frequency 30 times per minute Effective Intensity (Daytime) 20,000 cd white (Type A, FAA L-865) Effective Intensity (Nighttime) 2,000 cd red (Type B, FAA L-864) Light Source LED (dual) Light Source Lifespan 200,000 hours or more Emitted Color White (day) and Red (night) Shell Material Aviation dedicated aluminum alloy Luminous Mirror Material Optical PC Vertical Divergence 3 degrees Horizontal Output 360 degrees Overall Size (with panel) 515 x 450 x 350 mm (L x W x H) Installation Size Phi 90 mm x 4 x M8 Photocell Stage 50 / 100 Lux (auto day/night switching) Ambient Temperature -40 degrees C to +55 degrees C Relative Humidity 0% to 95% Protection Grade IP68 Wind Load 240 km/h Weight Approximately 6.2 kg Seismic Resistance 10 to 500Hz, 2G, 10 min/cycle, XYZ 60 minutes per axis Mean Time Between Failure 200,000 hours or more, MIL-HDBK-217F (25 degrees C) EMC Standards Emitted EN55022 (CISPR22) Class A, Harmonic EN61000-3-2 and -3 Operating Altitude 5500 m or more above sea level Rain Resistance Can be exposed to rain in any wind direction Salt Spray Can be exposed to salt spray Radiation Can be exposed to solar radiation Applications Ideal for off-grid and remote installations across the UAE and Middle East including airports, communication towers, chimneys, bridges, high mast lamps, high-rise buildings, blocks, and telecom towers requiring durable, ICAO and FAA-compliant dual medium intensity aviation warning lights without grid power access. Usage Notes If storage time exceeds 3 months, place the product outdoors in sunshine for 3 days every 3 months to prevent battery damage. Installation personnel must check that the power switch is on and fixing screws are tightened after installation. Non-professional personnel should not repair the equipment to avoid enlarging the fault and personal injury. For solar product storage, strictly comply with the provisions provided in the product documentation.
