Description

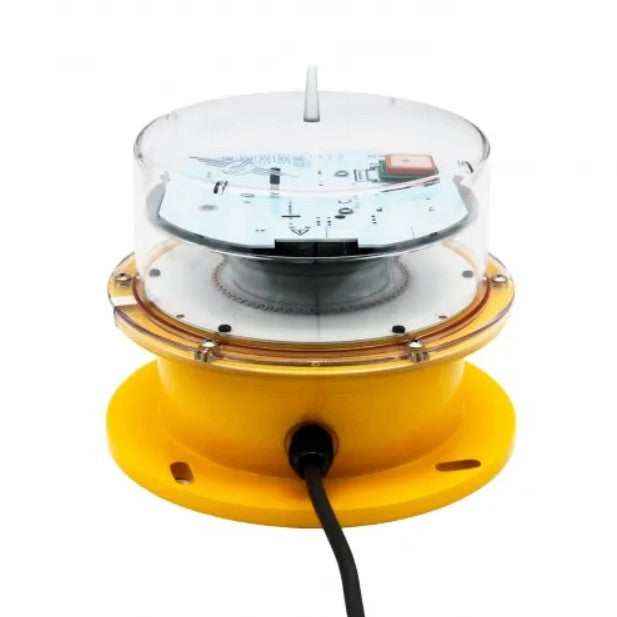

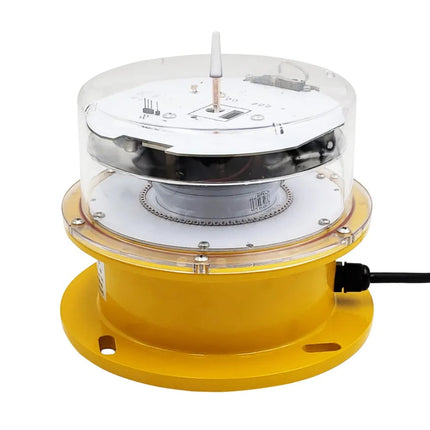

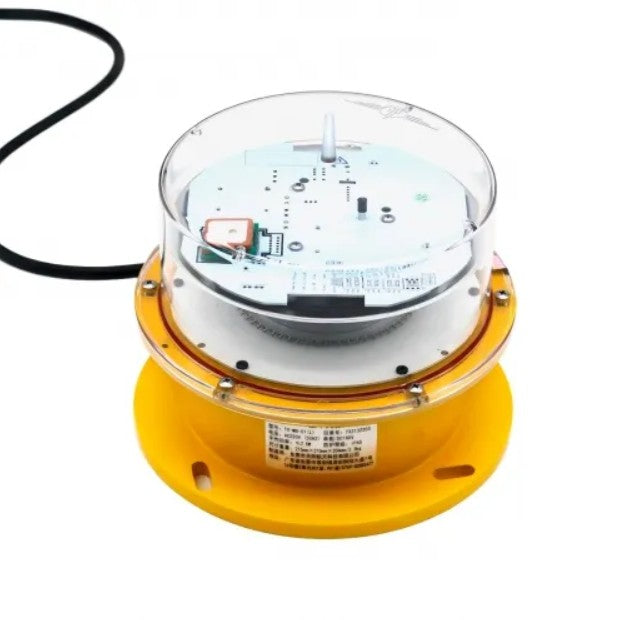

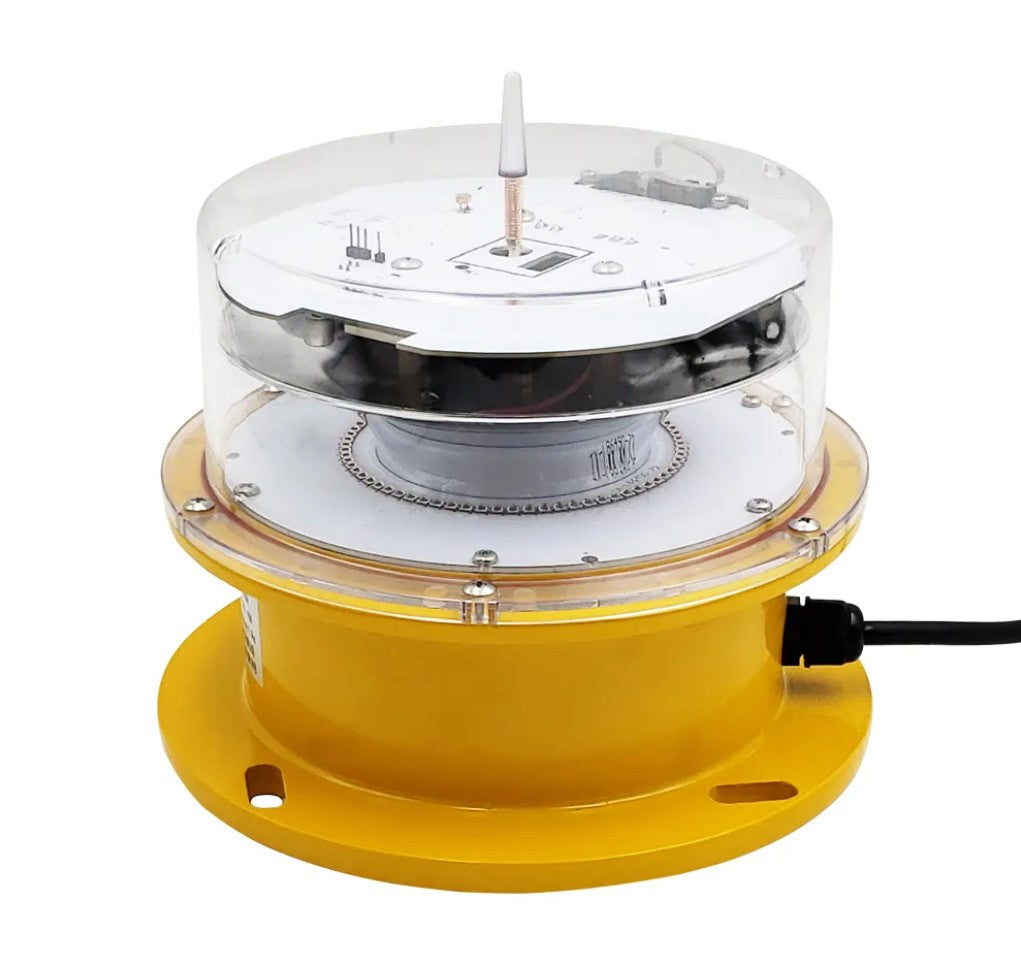

Rubik RBMB01(L) Medium Intensity Type B Aviation Obstruction Light, engineered to meet ICAO Annex 14 and CAAC MH6012-2015 / FAA L-864 standards. Built for demanding environments across world, including the UAE, Dubai, and the wider Middle East, this high-performance LED warning light delivers powerful 2000cd Red color flashing illumination at night for towers, chimneys, bridges, and high-rise structures where reliable aviation marking is critical.
Key Features
- High-intensity casting aviation aluminum shell, fully sealed and corrosion-resistant structure
- High-efficiency SMT LED chip combined with reflective optical structure for maximum brightness
- Advanced management circuit with strong lightning protection and 5KA surge protection device
- ICAO Annex 14 and CAAC MH6012-2015 approved for international aviation compliance
- IP68 protection rating, fully waterproof and dustproof for outdoor installation
- Impact resistant, anti-lightning, anti-snow, anti-sunlight, withstands typhoons and hail up to 240 km/h
- Operates at extreme altitudes up to 5500m or more above sea level
- Wide operating temperature range from -56 degrees C to +66 degrees C
- 200,000 hour LED lifespan for minimal maintenance and maximum reliability
- Optional GPS Beidou wireless sync, LORA-10KM wireless sync, remote control and telemetering
Specifications
| Specification |
Details |
| Model Number |
RBMB01(L) |
| Item Number |
TX-MB-01(L) |
| Type |
Medium Intensity Type B |
| Standard |
CAAC MH6012-2015 / ICAO Annex 14 Volume I / FAA L-864 |
| Power Supply |
AC 220V / DC 12V / 24V / 48V (Optional)
|
| Working Mode |
Flashing |
| Flash Frequency |
30 times per minute |
| Light Intensity (Night) |
2000 cd |
| Light Source |
LED |
| Light Source Lifespan |
200,000 hours |
| Emitted Color |
Red |
| Horizontal Output |
360 degrees |

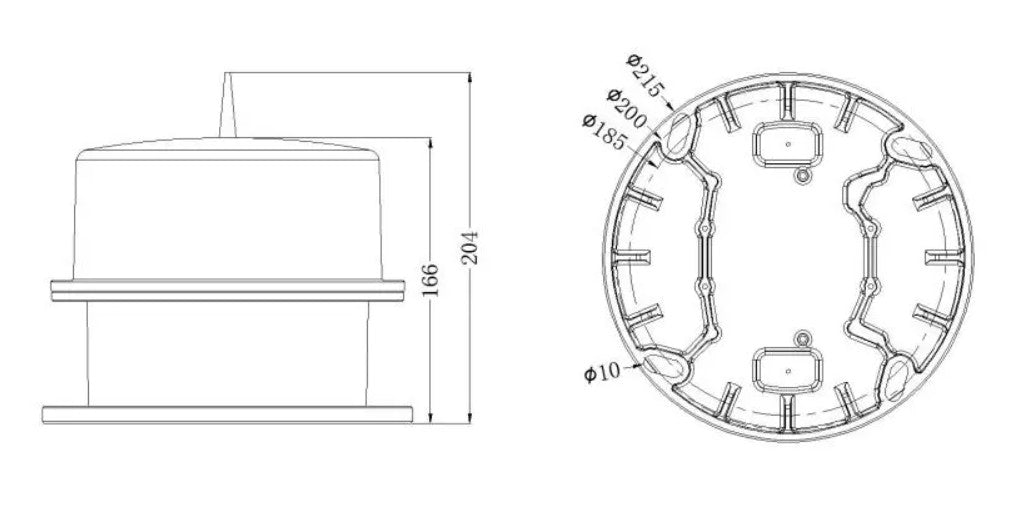

| Overall Height |
204 mm |
| Body Height |
166 mm |
| Base Diameter (Outer) |
215 mm |
| Base Diameter (Mid) |
200 mm |
| Base Diameter (Inner) |
185 mm |
| Mounting Hole Diameter |
10 mm |
| Surge Protection |
5KA |
| Anti-Wind Ability |
240 km/h |
| Protection Grade |
IP68 |
| Ambient Temperature |
-56 degrees C to +66 degrees C |
| Operating Altitude |
5500 m or more above sea level |
| Weight |
2.3 kg |
Applications
Designed for use across world and suitable for the UAE and Middle East on airports, communication towers, chimneys, bridges, high-pole lamps, super high-rise buildings, blocks, and construction sites requiring durable, ICAO/FAA-compliant medium intensity aviation warning lights. A trusted safety solution for infrastructure and regional aviation compliance projects.
Usage Notes
- Use only within the specified nominal voltage range to avoid equipment damage.
- Do not open the device while out of operation due to internal high pressure risk.
- After installation, verify waterproofing and confirm all screw spikes are tightened.
- Device maintenance must be performed by qualified professionals only.
