Control your appliances wirelessly with this compact 220V AC relay switch module, featuring a 315MHz remote control and built-in antenna. Designed for seamless integration into automation systems, it offers reliable switching of electrical devices up to 250V/5A using a single-button remote.
This compact 220V Wireless Relay Switch Module with a 315MHz single-button remote control is ideal for remote switching of AC-powered appliances. The module features a high-quality relay (rated 250V AC / 5A), built-in signal antenna for extended range, and screw terminal blocks for easy wiring. The included remote controller allows simple ON/OFF toggle operation, making it a perfect fit for smart home automation, DIY electronics, and industrial applications.
Whether you're automating lights, fans, or security systems, this module offers a reliable and straightforward solution with long-range wireless control and robust relay performance.
Specifications
Parameter
Details
Model
RK01SD-220ML
Input Voltage
220V AC
Relay Output
1 Channel, Up to 250V AC / 5A
Relay Type
YONGWEI XY3F-112DZ-1B
Coil Voltage
12V DC
Remote Control
315MHz, 1-button, includes antenna
Control Mode
Toggle ON/OFF (Press once = ON, press again = OFF)
Wireless Range
Up to 20–50 meters (open space)
Antenna Type
Coil Antenna (soldered to module)
Indicator
On-board LED for relay status (if included)
Dimensions
Approx. 60mm x 40mm x 18mm (module only)
Applications
Lights, Fans, Door Control, Smart Home Systems
Mounting
Through-hole or free placement

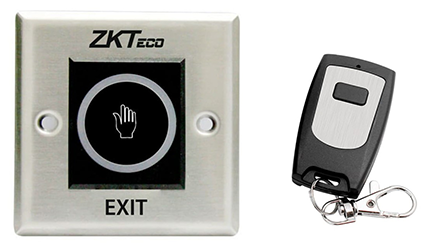

ZKTeco K1-1DR a touchless infrared exit button designed for offices, commercial buildings, and secure areas. The stainless steel faceplate, reliable sensor, and included remote controller deliver hygienic, convenient, and long-lasting performance.
Key Features
Touchless infrared sensor for hygienic, no-contact exit.
Access control compatible works with most door controllers.
Wireless remote included for flexible release control.
High durability rated up to 100,000 activations.
Easy installation with standard mounting size.
Specifications
Model
K1-1DR
Type
Infrared touchless exit button
Material
Stainless steel panel
Control
Infrared sensor + wireless remote
Lifespan
Up to 100,000 uses
Applications
Offices, commercial buildings, secure access doors
What’s in the Box
1 × ZKTeco K1-1DR Exit Button
1 × Wireless Remote Controller
Mounting Screws
zkteco exit button, k1-1dr, infrared exit switch, touchless door release, access control accessories

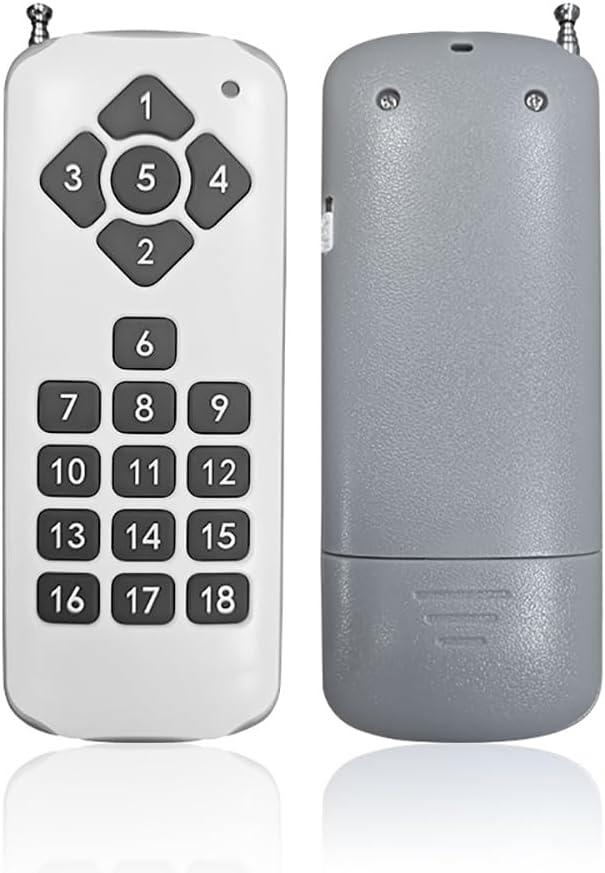

High-Power 2260 Fixed Code Remote for LED Strip, Rolling Door, Curtain, Gate, Stage Light AU1000-18O Universal RGB Lighting & Access Control Transmitter
With this remote you can upgrade your lighting or gate control system with the AU1000-18O RF Wireless Remote Controller, designed for high-power, long-range operation and superior performance. Compatible with a wide range of RGB LED light strips, stage lights, access control systems, electric curtains, rolling garage doors, and more.
Model: AU1000-18OFrequency: 433MHz (Fixed Code 2260)Buttons: 18 keys large format, universal compatibilityPower Supply: 12V (23A battery)
✅ Key Features:
18 Custom Buttons: Includes RGB color controls, dimming (S+/S-, B+/B-), on/off, white/yellow/cyan/purple colors, jump/gradual modes.
Universal Compatibility: Supports 433MHz RF protocol using fixed code 2260, ideal for most LED controllers and remote receivers.
Industrial-Grade Performance: Built with surface acoustic wave (SAW) frequency stabilization and SMT imported chipsets.
Ergonomic Design: Large silicone buttons and premium housing ensure excellent hand feel and long service life.
Built-in Power Switch: Saves battery life when not in use.
Wide Applications: Ideal for home and commercial use from LED lighting remote control to parking gate automation.
📐 Specifications:
Working Voltage: 12V (Battery: 23A)
Operating Current: ≤25mA
Transmitting Power: 18mW
Frequency Range: 433MHz (±75KHz deviation)
Dimensions: 132 x 52 x 15 mm
Applications:
RGB LED stage lighting control
LED underwater lighting and swimming pool lights
Parking lot and gate access control
Motorized roller shutters and curtains
Wireless remote control for home automation
Take control of your parking access with this AU188-4K Universal 433MHz Remote Control, designed to work seamlessly with most smart barrier gates and license plate recognition systems. Whether for residential compounds, commercial buildings, or parking facilities, this remote offers universal compatibility and easy duplication of 433MHz signals.
Perfect for residential communities, apartment complexes, commercial buildings, smart entry systems, and underground parking facilities, this copyable gate remote supports both fixed code and learning code formats. It allows for quick duplication of existing remotes, eliminating the need for complicated setup or professional programming.
🔧 Key Features:
📡 Frequency: 433 MHz (Universal Type)
🔁 Copyable Function: Supports cloning from fixed or learning code remotes
🏢 Application: Smart parking systems, residential gate access, commercial entrances
🚗 Compatible With: Boom barriers, license plate recognition, and automatic gate controllers
🔧 Universal Use: Works with most 433MHz systems available on the market
📦 Package Includes: 1 x Remote Control (Battery Included)
📏 Design: Compact, durable, and easy to operate
