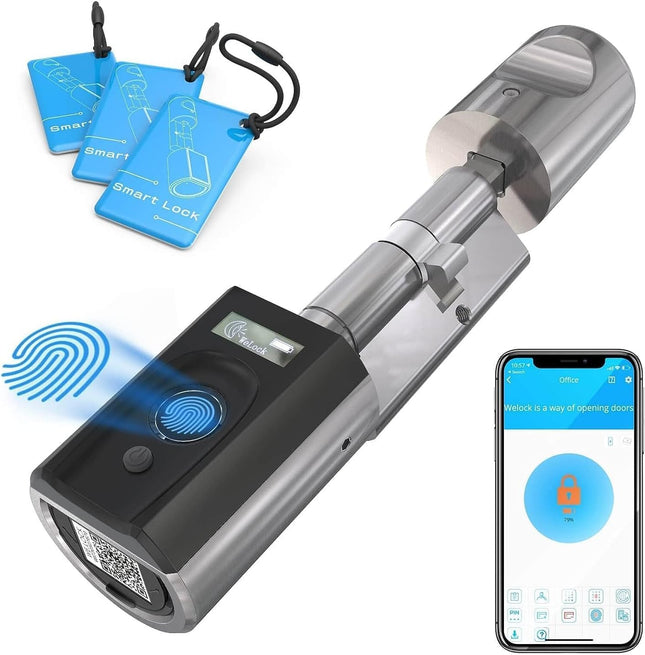

WELOCK Touch41 is a smart fingerprint door lock cylinder for home doors, gates, and garage doors. It replaces the existing cylinder without changing the original lock body. Size and compatibility Knob diameter: outside 46 mm, inside 38 mm. Knob length: outside 56 mm, inside 57 mm. Cylinder length adjustable: outside 40 mm to 55 mm, inside 30 mm to 60 mm. Suitable door thickness: 50 mm to 100 mm. Fits European standard cylinder openings. No drilling required for replacement. Unlocking methods and capacity Four unlocking options: fingerprint, RFID card, WELOCK app (Bluetooth or Wi-Fi connection via compatible setup), and USB backup power unlock. Stores up to 100 fingerprints, including up to 3 administrator fingerprints. Supports pairing up to 20 RFID cards. WELOCK app is available for iOS and Android for user management and unlocking records. USB port is for emergency unlocking power only and does not charge batteries. Fingerprint operation notes After installation, set an administrator fingerprint first. Before admin setup, the lock is in factory mode and any fingerprint or paired method may unlock. Initial free rotation of the handle before receiving an unlocking command is normal. Power and battery alerts Powered by three AAA 1.5 V batteries (not included). With about ten unlocks per day, expected battery life is approximately 8 to 10 months. When battery level drops below 20%, the lock gives an audible warning and the keypad lights red. OLED display shows battery status, settings, and warnings. Safety and durability Electrostatic protection up to 30,000 V. IP65 splash resistance for covered outdoor doors. Not intended for fully exposed external garden gates. Can always be opened from the inside in emergencies such as fire. Tested for up to 10 million closing operations. Operating temperature: -25°C to 60°C. Installation notes Lock is installed from the front door side. The front lock section is not removable. If access is shared through the app, the authorized person needs the WELOCK app to unlock via the app. In the box One WELOCK Touch41 electronic lock cylinder. Three RFID cards. Two special Allen keys. Instruction manual. Materials and warranty Materials: stainless steel with zinc alloy and plastic components. Warranty: two years.

Read more less

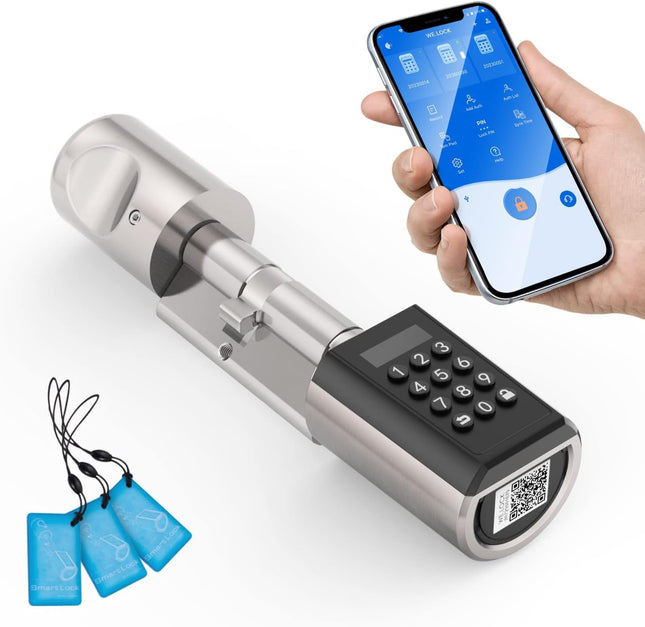

WELOCK PCB41 is a keyless entry smart door lock cylinder designed for front gates, short stay rentals, and hotel doors. It replaces only the existing cylinder and keeps the original lock body in place. WELOCK PCB41 Smart Lock, One Keyless Solution, All Door Types. From wooden homes to steel-clad offices, install in 5 mins with DIY yourself. WELOCK smart door locks can be used for all kinds of scenarios, bedroom, AirBnB, hotel, offices, garage, etc. Size and compatibility Handle diameter: outside 46 mm, inside 38 mm. Handle length: outside 56 mm, inside 57 mm. Cylinder length is adjustable: outside 40 mm to 55 mm, inside 30 mm to 60 mm. Distance from the center of the keyhole to the door frame must be 40 mm or more. Suitable door thickness: 50 mm to 100 mm. Installation and power Installs by swapping the lock cylinder only, without drilling or changing the lock body. Typical installation time is about 3 to 5 minutes using the supplied tools. Powered by three AAA batteries. Batteries are not included. If batteries are depleted, the lock can be opened using USB backup power for app unlocking. The USB port is for emergency power only and does not charge batteries. Unlocking methods and access control Five unlocking options: password, RFID card, WELOCK app, temporary password, and USB backup unlock. Supports up to 10 password groups, including one administrator group. Supports up to 20 RFID cards. WELOCK app is available for iOS and Android and can be used to manage users and view unlocking records. Short term access and channel mode Administrator passcode can authorize all users. Up to nine individual passcodes can be set for time limited access and can be changed or removed at any time. Channel mode keeps the cylinder unlocked when enabled. In the box One WELOCK PCB41 smart lock cylinder. Three RFID cards. Two special Allen keys. Quick start guide in five languages. Materials and warranty Materials: stainless steel with zinc alloy and plastic components. Warranty: two years. WE.LOCK is a professional R & D, production and sales in smart lock cylinder, fingerprint and Bluetooth lock cylinder as one of the enterprises, already over 10 years in research and practical experience at this area, and become bio-fingerprint in the lock cylinder. Our lock cylinder suitable for varieties of doors installation and use. provide people more safe and convenient in life. Specifications: Material: Stainless steel and Zinc alloyOperating Temperature: -40 ºF~140 ºF(-20ºC ~ 60ºC)Power Supply: 3 × AAA Battery(not in packing)Cylinder N.W &size:480g(16.9oz)Waterproof Grade: IP65Door Thickness: lock cylinder length is adjustable (50mm to 100mm), match 99% doors in the world.Package List: 1 × Lock cylinder2 × Allen key1 × Page of Installation Guide3 × RFID card

Read more less

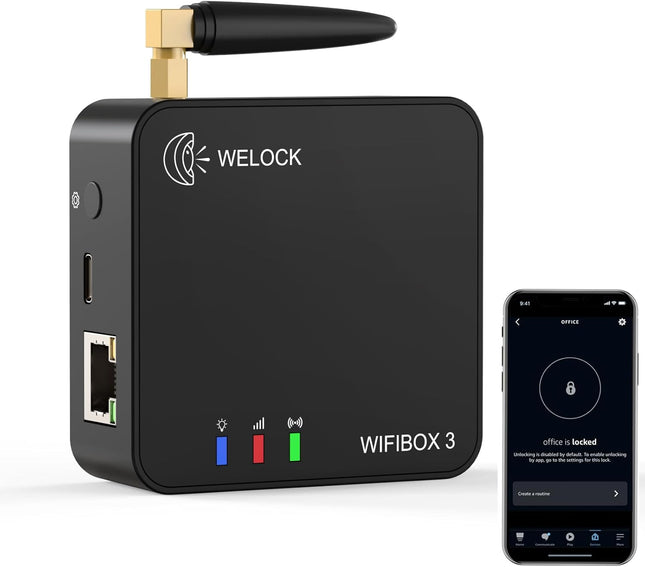

Smart Home Integration: Manage your WELOCK smart lock from anywhere with Alexa integration for seamless remote unlocking and a smart home experience. One WIFIBOX3 gateway can support up to 8 WELOCK electronic locks. New Generation for Remote Unlocking: The enhanced gateway antenna provides better Bluetooth signals for remote unlocking. Grant access to handymen, dog sitters, or delivery personnel even when you're away. Easy Gateway Setup: The WIFIBOX3 offers simple connection options via Type-C data cable and RJ45 network cable. Enjoy reliable low-power Bluetooth connectivity with a range of up to 10 meters (no wall blocks).Simple setup in under 3 minutes, with USB cable, network cable, and tools included for convenience. 24/7 Home Access Control: Monitor who enters and leaves your home, whether you’re at work, traveling, or on vacation.  Make your intercom smarterWELOCK WIFIBOX3 makes your intercom smart and opens your door conveniently via smartphone. In combination with the WELOCK Smart Lock, you will experience a completely keyless everyday life. Remote control to unlock and monitoringWELOCK WIFIBOX3 smart remotely controls unlocking and checks if whether your door is open or closed. WELOCK Wifibox3 functions:Remote unlockingUnlocking recordsRemote addition/removal of cards (via card QR code)Remote deletion of cards (via card number)Remote deletion of fingerprints (via the fingerprint number)Add/delete passcode

Read more less
