ICAO and FAA L-810 LIOL compliant Flight Light, This single head LED Low-Intensity Aviation Obstruction Light is designed for reliable visual warning and marking of structures. It features high-quality Cree LED (American brand) light sources and supports single-LED illumination (Red lens cover) for enhanced visibility in different operating conditions.
Compliance: As specified by Annex 14 of ICAO regulations, Low Intensity Obstruction Lights (LIOL) should be used to warn the presence of obstacles up to 45m height, such as telecommunication towers, wind turbines, chimneys, cranes, buildings and other structures.
These lights are used to mark fixed obstacles such as buildings, antennas, towers, cranes, and other structures that may extend into airspace. Units are available in single-head or single-head configurations and use a red or transparent lens/globe for obstruction marking. Designed for AC 220V, 50/60Hz power and can be connected directly to an existing power circuit. A photocell (optical sensor) is included for automatic operation at night.
The lamp operates in a single-head flashing mode, providing consistent warning signals while maintaining low power consumption and long service life. With a service life exceeding 100,000 hours, it is suitable for continuous operation in outdoor environments.
Technical Specifications
Light Source Brand: CREE (American brand LED)
Light Color: Red
Lens/Globe Cover: Red
Luminous Intensity: ≥ 32.5 cd
Operating Mode: Flashing 30FPM
Input Voltage: AC 220V
Power Frequency: 50Hz / 60Hz
Control: Photocell (Automatic dusk-to-dawn activation)
Configuration: Single lamp head
Housing: Die-cast aluminum
Finish: Aviation yellow powder coat
Hardware: Stainless steel
Compliance
FAA AC: 150/5345-43J
ETL L-810
ICAO Annex 14, Vol. 1, Type B
Typical Use Cases
Obstruction marking on buildings and rooftops
Parking structures (canopies, entrances, exits)
External structures for real estate companies and offices leasing units
Fixed installations requiring low-intensity flashing warning light
The Rubik 220V AC Low Intensity Type B LED Aviation Obstruction Light is a red aircraft warning light designed for marking fixed obstacles and structures that require low intensity aviation obstruction lighting.
The light uses a red LED source with an effective light intensity of ≥32.5 cd. The optical system provides 360° horizontal light distribution and a vertical beam angle of ≥10°.
The unit supports both steady burning or flashing operation. Flashing configurations can be supplied at 30 FPM by default. The product references the ICAO Low Intensity Obstacle Lighting Standard and FAA L-810.
The light is designed for outdoor installation with an aluminium alloy body, polycarbonate light cover, IP65 protection and a specified operating temperature range from -40°C to +55°C.
Product Specifications
Brand
Rubik
Product Type
Low Intensity LED Aviation Obstruction Light
ICAO Classification
Low Intensity Type B
FAA Reference
FAA L-810
Light Source
LED
Light Colour
Red
Effective Light Intensity
≥32.5 cd
Horizontal Light Output
360°
Vertical Beam Angle
≥10°
Operating Mode
Flashing or Steady Burning
Available Flash Rates
30 FPM
AC Operating Voltage
220V AC
DC Operating Voltage
Not applicable to this unit
Average Power Consumption
<4 W in flashing mode
Light Control Threshold
50–500 Lux
LED Life Reference
100,000 hours
Operating Temperature
-40°C to +55°C
Working Humidity
≤95% RH, non-condensing
Ingress Protection
IP65
Body Material
Aluminium Alloy
Light Cover Material
Polycarbonate (PC)
Mounting Connection
G3/4 inch threaded pipe
Reference Weight
Approximately 0.65 kg
Light Characteristics
The optical system uses a Fresnel lens to control and distribute the LED light output. The light provides full 360° horizontal coverage around the obstruction with a specified minimum vertical beam angle of 10°.
Characteristic
Specification
Light Colour
Red
Light Source
LED
Effective Intensity
≥32.5 cd
Horizontal Coverage
360°
Vertical Beam Angle
≥10°
Operating Mode
Steady or Flashing
Available Flash Rates
30 flashes per minute
ICAO and FAA Reference
ICAO Reference
ICAO Low Intensity Obstacle Lighting Standard
ICAO Light Type
Low Intensity Type B
FAA Reference
FAA L-810
Light Colour
Red
Effective Intensity
≥32.5 cd
Steady and Flashing Operation
The obstruction light supports steady burning or flashing operation. Where flashing operation is required, the flash frequency can be configured according to the selected product configuration.
Steady Burning
Supported
30 FPM
Available
40 FPM
Customization
60 FPM
Customization
Optical System
The light uses an LED source together with a Fresnel optical lens system. The optical arrangement is designed to control the emitted beam while providing circumferential visibility around the installed obstruction.
The polycarbonate light cover provides impact resistance and thermal stability. The datasheet also specifies an anti-bird-point design as part of the lamp cover construction.
Housing and Construction
The main body is manufactured from aluminium alloy, providing a lightweight mounting structure with corrosion resistance suitable for outdoor installations.
The light cover is manufactured from polycarbonate (PC). The enclosure has an IP65 ingress protection rating and is specified for operation in temperatures from -40°C to +55°C and humidity levels up to 95% RH without condensation.
Electrical Specifications
AC Supply
220V AC
DC Supply
Not applicable to this unit
Average Power Consumption
<4 W in flashing mode
Light Control Threshold
50–500 Lux
Lightning Surge Protection
IEC 61000-4-5, L-N 6 kV / 3 kA
Lightning Surge Protection to PE
IEC 61000-4-5, L/N-PE 6 kV / 3 kA
Electrostatic Discharge
IEC 61000-4-2, 15 kV air discharge / 8 kV contact discharge
EMC Reference
EN55015 / CISPR 15
Light Control
The technical specification lists a 50–500 Lux light control threshold. This allows the obstruction lighting system to be configured for light-controlled operation according to the selected product configuration.
Fault Alarm Output
The design includes a lamp fault alarm function. In the event of a lamp malfunction, a dry contact signal can be provided for connection to an external monitoring or alarm system.
Installation
The obstruction light is designed for installation using a G3/4 inch threaded pipe connection. The mounting surface or supporting bracket should provide sufficient mechanical strength for secure installation.
Before connecting the light, verify that the available power supply matches the specified 220V AC operating voltage of this unit.
The product also incorporates an anti-fall protection arrangement for installation and wiring.
Typical Applications
The Rubik Low Intensity Type B Aviation Obstruction Light is intended for aircraft warning and obstacle marking installations where low intensity red obstruction lighting is required by the applicable project specification or aviation authority.
Telecommunication towers
Power transmission towers
Microwave towers
Industrial chimneys
Thermal power plant structures
Chemical plant structures
High-rise buildings
Airport clear zone structures
Large bridges
Port machinery
Heavy construction equipment
Wind turbines
Elevated industrial structures
Environmental Specifications
Operating Temperature
-40°C to +55°C
Working Humidity
≤95% RH, non-condensing
Ingress Protection
IP65
Body Material
Aluminium Alloy
Light Cover
Polycarbonate (PC)
The Rubik 24volt Low Intensity Type B LED Aviation Obstruction Light is a red aircraft warning light designed for marking fixed obstacles and structures that require low intensity aviation obstruction lighting.
The light uses a red LED source with an effective light intensity of ≥32.5 cd. The optical system provides 360° horizontal light distribution and a vertical beam angle of ≥10°.
The unit supports both steady burning or flashing operation. Flashing configurations can be supplied at 30 FPM by default. The product meets references the ICAO Low Intensity Obstacle Lighting Standard and FAA L-810.
The light is designed for outdoor installation with an aluminium alloy body, polycarbonate light cover, IP65 protection and a specified operating temperature range from -40°C to +55°C.
Product Specifications
Brand
Rubik
Product Type
Low Intensity LED Aviation Obstruction Light
ICAO Classification
Low Intensity Type B
FAA Reference
FAA L-810
Light Source
LED
Light Colour
Red
Effective Light Intensity
≥32.5 cd
Horizontal Light Output
360°
Vertical Beam Angle
≥10°
Operating Mode
Flashing or Steady Burning
Available Flash Rates
30 FPM
AC Operating Voltage
NA
DC Operating Voltage
24 VDC
Average Power Consumption
<4 W in flashing mode
Light Control Threshold
50–500 Lux
LED Life Reference
100,000 hours
Operating Temperature
-40°C to +55°C
Working Humidity
≤95% RH, non-condensing
Ingress Protection
IP65
Body Material
Aluminium Alloy
Light Cover Material
Polycarbonate (PC)
Mounting Connection
G3/4 inch threaded pipe
Reference Weight
Approximately 0.65 kg
Light Characteristics
The optical system uses a Fresnel lens to control and distribute the LED light output. The light provides full 360° horizontal coverage around the obstruction with a specified minimum vertical beam angle of 10°.
Characteristic
Specification
Light Colour
Red
Light Source
LED
Effective Intensity
≥32.5 cd
Horizontal Coverage
360°
Vertical Beam Angle
≥10°
Operating Mode
Steady or Flashing
Available Flash Rates
30 flashes per minute
ICAO and FAA Reference
ICAO Reference
ICAO Low Intensity Obstacle Lighting Standard
ICAO Light Type
Low Intensity Type B
FAA Reference
FAA L-810
Light Colour
Red
Effective Intensity
≥32.5 cd
Steady and Flashing Operation
The obstruction light supports steady burning or flashing operation. Where flashing operation is required, the flash frequency can be configured according to the selected product configuration.
Steady Burning
Supported
30 FPM
Available
40 FPM
Customization
60 FPM
Customization
Optical System
The light uses an LED source together with a Fresnel optical lens system. The optical arrangement is designed to control the emitted beam while providing circumferential visibility around the installed obstruction.
The polycarbonate light cover provides impact resistance and thermal stability. The datasheet also specifies an anti-bird-point design as part of the lamp cover construction.
Housing and Construction
The main body is manufactured from aluminium alloy, providing a lightweight mounting structure with corrosion resistance suitable for outdoor installations.
The light cover is manufactured from polycarbonate (PC). The enclosure has an IP65 ingress protection rating and is specified for operation in temperatures from -40°C to +55°C and humidity levels up to 95% RH without condensation.
Electrical Specifications
AC Supply
n/a
DC Supply Options
24 VDC
Average Power Consumption
<4 W in flashing mode
Light Control Threshold
50–500 Lux
Lightning Surge Protection
IEC 61000-4-5, L-N 6 kV / 3 kA
Lightning Surge Protection to PE
IEC 61000-4-5, L/N-PE 6 kV / 3 kA
Electrostatic Discharge
IEC 61000-4-2, 15 kV air discharge / 8 kV contact discharge
EMC Reference
EN55015 / CISPR 15
Light Control
The technical specification lists a 50–500 Lux light control threshold. This allows the obstruction lighting system to be configured for light-controlled operation according to the selected product configuration.
Fault Alarm Output
The design includes a lamp fault alarm function. In the event of a lamp malfunction, a dry contact signal can be provided for connection to an external monitoring or alarm system.
Installation
The obstruction light is designed for installation using a G3/4 inch threaded pipe connection. The mounting surface or supporting bracket should provide sufficient mechanical strength for secure installation.
Before connecting the light, verify that the available power supply matches the specified operating voltage of the selected unit.
The product also incorporates an anti-fall protection arrangement for installation and wiring.
Typical Applications
The Rubik Low Intensity Type B Aviation Obstruction Light is intended for aircraft warning and obstacle marking installations where low intensity red obstruction lighting is required by the applicable project specification or aviation authority.
Telecommunication towers
Power transmission towers
Microwave towers
Industrial chimneys
Thermal power plant structures
Chemical plant structures
High-rise buildings
Airport clear zone structures
Large bridges
Port machinery
Heavy construction equipment
Wind turbines
Elevated industrial structures
Environmental Specifications
Operating Temperature
-40°C to +55°C
Working Humidity
≤95% RH, non-condensing
Ingress Protection
IP65
Body Material
Aluminium Alloy
Light Cover
Polycarbonate (PC)

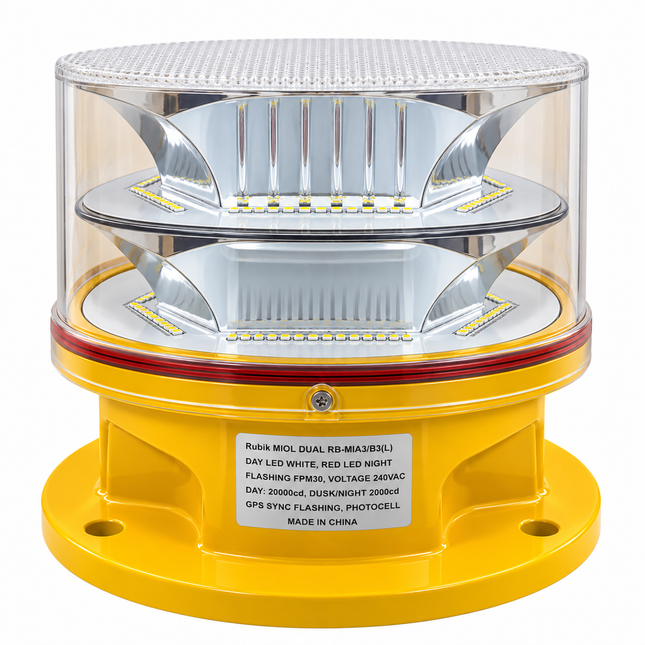

The Rubik RB-MIA3/B3(L) is a dual color LED medium intensity aviation obstruction light combining a medium intensity white flashing light for daytime and twilight operation with a red flashing light for night operation. ICAO and FAA compliant. The white daytime mode provides a nominal intensity of 20,000 cd, while the red nighttime mode provides a nominal intensity of 2,000 cd. The optical system provides 360° horizontal coverage with a specified 3° vertical divergence.
The unit is designed for aviation obstacle marking applications requiring automatic transition between daytime white obstruction lighting and nighttime red obstruction lighting. A built in photocell controls the operating mode according to ambient light conditions.
Product Specifications
Brand
Rubik
Model
RB-MIA3/B3(L)
Product Type
LED Medium Intensity Dual Color Aviation Obstruction Light
Light Configuration
White Day / Twilight and Red Night
ICAO White Light Classification
Medium Intensity Type A
ICAO Red Light Classification
Medium Intensity Type B / C
FAA White Light Reference
L-865
FAA Red Light Reference
L-864
Day Light Colour
White
Twilight Light Colour
White
Night Light Colour
Red
Day Intensity
≥20,000 cd White
Night Intensity
≥2,000 cd Red
Light Source
Medium Intensity LED
Horizontal Light Output
360°
Vertical Divergence
3°
Flash Rate
30 flashes per minute
Standard Factory Flash Rate
30 FPM
Day / Night Switching
Automatic
Photocell
Built in
GPS Synchronization
Available
Operating Voltage
110 to 240 VAC
Instantaneous Power, Red Mode
40 W
Instantaneous Power, White Mode
600 W
Average Power, Red Mode
7.5 W at 30 FPM
Average Power, White Mode
19 W at 30 FPM
Circuit Protection
Integrated
Body Material
UV protected polycarbonate
Base Material
Powder coated die cast aluminium
Mounting
190 × 190 mm, Ø12 mm mounting holes
Overall Dimensions
236 × 236 × 215 mm
Weight
Approximately 4 kg
Humidity
0% to 100%
Wind Speed Rating
80 m/s
Ingress Protection
IP66
LED Life Reference
>100,000 hours
Product Life Expectancy
10+ years, manufacturer stated specification
Day, Twilight and Night Operation
Operating Mode
Colour
Intensity
Operation
Day
White
≥20,000 cd
Flashing
Twilight
White
Medium intensity white operating mode
Flashing
Night
Red
≥2,000 cd
Flashing
ICAO and FAA References
ICAO Standard Reference
ICAO Annex 14 Volume I, Aerodrome Design and Operations
ICAO White Day Mode
Medium Intensity Type A White Obstruction Light
ICAO Red Night Mode
Medium Intensity Type B Red Obstruction Light
FAA White Light Reference
FAA L-865
FAA Red Light Reference
FAA L-864
Ingress Protection
IP66
Dual Color Operation
The RB-MIA3/B3(L) combines white and red LED obstruction lighting in a single housing. The built in photocell automatically changes the operating mode according to ambient lighting conditions.
During daylight and twilight conditions, the unit operates using the white LED obstruction light. At night, the unit changes to the red LED obstruction light.
This arrangement allows one obstruction light assembly to provide both daytime white and nighttime red aviation obstacle marking.
Optical Characteristics
The optical system provides 360° horizontal light distribution with a specified vertical divergence of 3°.
The daytime white LED section is rated at 20,000 cd or greater, while the nighttime red LED section is rated at 2,000 cd or greater.
Automatic Photocell Control
A built in photocell detects ambient light conditions and automatically switches between the white daytime operating mode and red nighttime operating mode.
This eliminates the need for manual switching between daytime and nighttime obstruction lighting modes during normal operation.
GPS synchronized flashing is available for installations requiring multiple compatible obstruction lights to flash at coordinated intervals.
GPS synchronization allows individual units to maintain coordinated flash timing without requiring a synchronization cable between each obstruction light.
The optical housing is manufactured from UV protected polycarbonate. The base is manufactured from powder coated die cast aluminium for outdoor installation.
The enclosure provides IP66 ingress protection and is specified for wind speeds up to 80 m/s.
Electrical Characteristics
Input Voltage
110 to 240 VAC
Red Mode Instantaneous Power
40 W
White Mode Instantaneous Power
600 W
Red Mode Average Power
7.5 W at 30 FPM
White Mode Average Power
19.5 W at 30 FPM
Circuit Protection
Integrated
Physical Dimensions
Overall Diameter / Width
236 mm
Overall Height
215 mm
Overall Dimensions
236 × 236 × 215 mm
Mounting Pattern
190 × 190 mm
Mounting Hole Diameter
Ø12 mm
Weight
Approximately 4 kg
Typical Applications
The Rubik RB-MIA3/B3(L) is intended for marking elevated structures where a dual color medium intensity aviation obstruction lighting system is specified by the applicable aviation authority, consultant or approved obstacle lighting design.
High rise buildings
High chimneys
Telecommunication towers
GSM towers
Microwave towers
Television towers
High poles and masts
Tower cranes
Wind turbines
Industrial structures
Other elevated fixed obstacles
The manufacturer's reference application covers obstacle heights approximately 45 to 150 metres. The required light quantity, mounting levels, spacing and complete obstruction lighting arrangement must be determined according to the applicable aviation authority requirements and the approved obstacle lighting design.
Available Functions and Options
Built In Photocell
Available
GPS Synchronized Flashing
Available
Dry Contact Alarm Output
Optional - Customized
RS485 Communication
Optional - Customized
NVG Compatible Infrared LED
Optional - Customized
Bird Deterrent Spike
Optional - Customized
Important Installation Information
The mounting bracket is not included unless specifically stated in the quotation or order. Mounting brackets can be selected or fabricated according to the installation structure.
Final obstacle lighting configuration, mounting height, quantity, spacing and approval remain subject to the requirements of the applicable civil aviation authority, airport authority, consultant and approved project specification.
The Rubik MIOL RB-MIA3(L) is a white flashing LED medium intensity aviation obstruction light designed for obstacle marking applications requiring ICAO Medium Intensity Type A / FAA L-865 light characteristics. (ICAO and FAA Compliant).
The light operates at 20,000 cd during daytime and twilight and 2,000 cd at night. It is supplied with a 30 flashes per minute (FPM) configuration, built in photocell for automatic day and night operation, and GPS synchronized flashing for installations using multiple compatible obstruction lights.
Product Specifications
Brand
Rubik
Model
RB-MIA3(L)
Product Type
LED Medium Intensity Aviation Obstruction Light
ICAO Classification
Medium Intensity Type A
Light Colour
White
Operation
Flashing
Day Intensity
20,000 cd
Twilight Intensity
20,000 cd
Night Intensity
2,000 cd
Flash Rate
30 FPM
Light Source
High Intensity LED
Horizontal Light Output
360°
Vertical Divergence
3°
Photocell
Built in
Day / Night Control
Automatic photocell controlled operation
Synchronization
Built in GPS synchronized flashing
Operating Voltage
110 to 240 VAC
Instantaneous Power
600 W
Average Power
≤19 W at 30 FPM, manufacturer reference specification
Circuit Protection
Integrated
Surge Protection L to N
IEC 61000-4-5, ±3 kV
Surge Protection L to PE
IEC 61000-4-5, ±6 kV
Surge Protection N to PE
IEC 61000-4-5, ±6 kV
Electrostatic Protection
IEC 61000-4-2, 8 kV contact discharge
Optical Body Material
UV protected polycarbonate
Base Material
Powder coated die cast aluminium
Housing Colour
Yellow
Overall Dimensions
229 × 229 × 168 mm
Mounting
190 × 190 mm, Ø12 mm mounting holes
Weight
Approximately 3.5 kg
Operating Temperature
-40°C to +55°C
Storage Temperature
-55°C to +70°C
Humidity
10% to 95% RH, non condensing
Wind Speed Rating
240 km/h
Ingress Protection
IP66
LED Life Reference
>100,000 hours
Product Life Expectancy
10+ years, manufacturer stated specification
Country of Manufacture
China
Light Intensity and Operating Modes
Operating Condition
Colour
Intensity
Operation
Day
White
20,000 cd
Flashing
Twilight
White
20,000 cd
Flashing
Night
White
2,000 cd
Flashing
Flash Rate
White
30 FPM
GPS synchronized
Standards and References
ICAO
ICAO Annex 14, Volume I, Medium Intensity Type A
FAA Reference
FAA L-865
Ingress Protection
IP66
Surge Protection Standard
IEC 61000-4-5
Electrostatic Discharge Standard
IEC 61000-4-2
The obstruction light uses a high intensity LED optical system inside a UV protected polycarbonate enclosure. The optical system provides 360° horizontal output with a specified 3° vertical divergence.
The base is manufactured from powder coated die cast aluminium. The enclosure is rated IP66 and is specified for outdoor operation from -40°C to +55°C, relative humidity from 10% to 95% RH without condensation, and wind speeds up to 240 km/h.
The RB-MIA3(L) includes GPS synchronization for coordinated flashing between multiple compatible obstruction lights. This allows separate installed units to maintain synchronized flash timing without a direct synchronization cable between each light.
Automatic Day and Night Operation
The built in photocell automatically controls the operating intensity according to ambient light conditions.
Day
20,000 cd
Twilight
20,000 cd
Night
2,000 cd
Typical Applications
The Rubik RB-MIA3(L) is intended for fixed obstacle marking applications where a white flashing medium intensity obstruction light is specified by the applicable aviation authority or approved obstruction lighting design.
High rise buildings
High chimneys
Telecommunication towers
GSM towers
Microwave towers
TV towers
High poles and masts
Tower cranes
Wind turbines
Industrial structures
Other elevated fixed obstacles
The required number of obstruction lights, mounting height, spacing, intermediate lighting levels and complete obstruction lighting arrangement should be determined according to the applicable aviation authority requirements and the approved obstacle lighting design for the structure.
Note: Mounting brackets, mounting structures and project specific accessories are not included unless specifically stated in the quotation or order.

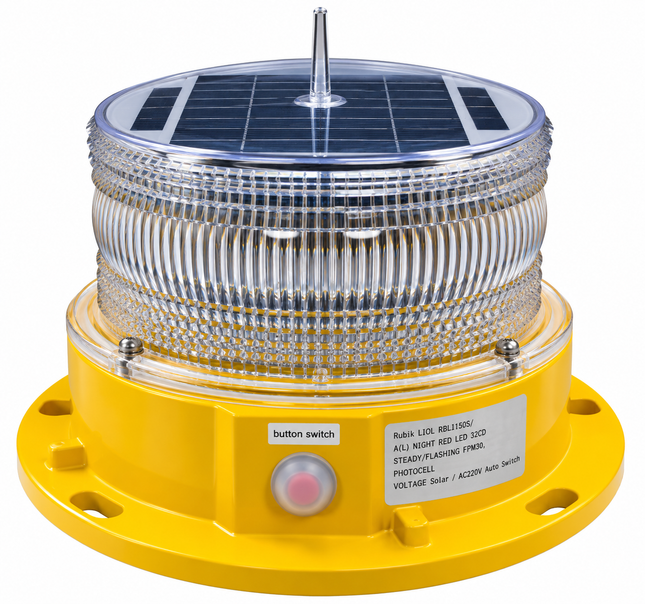

Protect tall and exposed structures with the Rubik Low Intensity Aviation Obstruction Light (LIOL), featuring a red CREE LED with USA origin. Choose steady or flashing operation, with the flashing mode producing 30 flashes per minute.
Solar power and simple power selection
Solar powered with a built in 3.7 V, 8 Ah lithium battery. A power switch button lets you select battery power or direct 220 V power. The 2.5 W, 5 V solar panel charges the battery when installed with adequate sunlight.
Best use cases
Aircraft warning for power transmission towers, telecommunications towers, microwave sites, chimneys at thermal power, coking and chemical plants, high rise buildings, large bridges, port machinery, heavy construction equipment and wind turbines. Confirm the required obstruction light type and installation with the project engineer and relevant aviation authority.
Technical data sheet
Brand
Rubik
Model
RBMI150T-B1
Light category
Low Intensity Aviation Obstruction Light (LIOL)
LED brand
CREE
LED origin
USA
LED warranty
2 years
Standards references
ICAO Annex 14 Standard for Low-Intensity Obstruction Lights and FAA L-810 Compliant.
Light source
CREE LED
Light color
Red
Operating modes
Steady or flashing
Flashing rate
30 FPM, 30 flashes per minute
Effective light intensity
> 32.5 cd
Horizontal viewing angle
360°
Vertical viewing angle
≥ 10°
Light source lifespan
≥ 100,000 h
Power selection
Solar charging with built in battery or direct 220 V power, selected by switch button
Battery
3.7 V / 8 Ah lithium battery
Solar panel
2.5 W / 5 V
Photosensitive switch illumination level
70/100 lux as shown in the supplied specification
Consecutive rainy day operation
7 days at 25 °C. The supplied specification notes that ambient temperatures below 0 °C or above 40 °C may affect battery discharge.
Operating temperature
−40 °C to +55 °C
Operating humidity
10% to 95%
Protection rating
IP65
Reference weight
4.6 kg
Materials
Aluminum alloy base and PC lampshade
Lampshade flame retardancy
UL94-V0
Installation and care
Install with a flange in a location with adequate sunlight. The supplied manual describes a light control function that begins flashing below the preset ambient light threshold. To test this function in daylight, cover the solar panel. For storage longer than six months, the manual recommends exposing the product to sunlight for three days to fully charge the battery. The manual recommends replacing the battery regularly, with annual replacement suggested. Avoid organic solvents on PC components because they may cause damage. Handle the bird-repellent tip carefully because it is sharp.

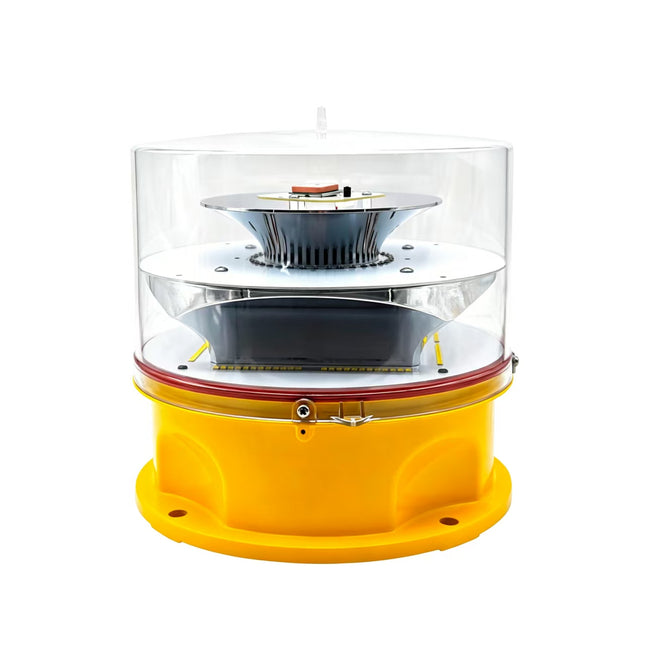

The Rubik RBMAB02(L) is a medium intensity Type AB dual-color LED aviation obstruction light designed for marking tall structures and potential aviation obstacles. It provides a flashing white warning light with an effective intensity of 20,000 candela during daytime and a flashing red warning light with an effective intensity of 2,000 candela at night. The standard configuration operates at 30 flashes per minute (FPM), with a complete flash cycle of 2 seconds.
This dual aviation warning light combines daytime and nighttime obstruction marking in a single unit, using an integrated photocell for automatic switching between white and red lighting modes according to ambient light conditions. The optical assembly incorporates high-efficiency SMT LEDs and a multi-layer reflective structure, providing 360° horizontal light distribution with a 3° vertical beam divergence.
The light features a cast aviation aluminum alloy housing, a transparent optical polycarbonate cover, and a fully sealed construction with an IP68 protection rating. Integrated surge protection, over-current protection, and thermal management features support outdoor operation under varying environmental conditions.
The RBMAB02(L) is intended for aviation obstruction marking on telecommunications towers, high-rise buildings, industrial chimneys, transmission towers, bridges, structural pylons, and other elevated structures where medium intensity aircraft warning lights are required. The final installation arrangement and lighting classification should follow the applicable aviation authority requirements.
Key Product Features
Medium intensity Type AB dual-color LED aviation obstruction light.
Daytime white flashing light with 20,000cd effective intensity.
Nighttime red flashing light with 2,000cd effective intensity.
Standard flashing frequency of 30 FPM.
Complete flash cycle of 2 seconds.
Automatic day and night switching through an integrated photocell.
360° horizontal light output and 3° vertical beam divergence.
High-efficiency SMT LED light source with multi-layer reflective optical system.
Cast aviation aluminum alloy housing with transparent polycarbonate optical cover.
IP68 ingress protection rating for outdoor installations.
Integrated 5kA surge protection and over-current protection.
Operating temperature range from -46°C to +66°C.
Manufacturer-specified wind resistance up to 240km/h.
Fixed mounting base with four M10 mounting positions.
AC 220V, 50/60Hz electrical supply.
Estimated average power consumption of 15.75W at 30 FPM, based on proportional calculation from an assumed 20 FPM baseline.
Technical Specifications
Parameter
Specification
Brand
Rubik
Model
RBMAB02(L)
Product Type
Aviation Obstruction Warning Light
Classification
Medium Intensity Type AB
Light Configuration
Dual Color, White and Red
Light Source
SMT LED
Daytime Light Color
Flashing White
Daytime Effective Intensity
20,000cd
Nighttime Light Color
Flashing Red
Nighttime Effective Intensity
2,000cd
Standard Flashing Frequency
30 FPM
Flash Cycle
2 seconds
Flashes per Hour
1,800
Operating Mode
Automatic Day/Night Switching
Photocell Switching Levels
50/100 lux
Horizontal Light Distribution
360°
Vertical Beam Divergence
3°
Rated Power Supply
AC 220V
Power Frequency
50/60Hz
Estimated Average Power Consumption at 30 FPM
15.75W, calculated estimate
Estimated Energy Consumption per Hour
0.01575 kWh
Estimated Energy Consumption per 24 Hours
0.378 kWh
LED Lifespan
≥200,000 hours, manufacturer specified
Housing Material
Cast Aviation Aluminum Alloy
Optical Cover Material
Polycarbonate (PC)
Optical System
Multi-Layer Reflective Structure
Ingress Protection Rating
IP68
Surge Protection Rating
5kA
Over-Current Protection
Included
Electric Shock Protection
Included
Operating Temperature
-46°C to +66°C
Relative Humidity
0% to 95%
Wind Resistance
240km/h
Overall Dimensions
267 × 267 × 295mm
Mounting Arrangement
Ø245mm PCD, 4 × M10
Net Weight
Approx. 4.6kg, excluding mounting bracket
Manufacturer Altitude Specification
≥5,500m
Leakage Current
<10µA
Insulation Test
1.414kV DC for 10 seconds without breakdown
Vibration Resistance
10–500Hz, 2G
Mean Time Between Failures
≥200,000 hours, MIL-HDBK-217F at 25°C, manufacturer specified
EMC Reference
EN55022 (CISPR22) Class A; EN61000-3-2 and EN61000-3-3
Aviation Standards Referenced
ICAO Annex 14 Volume I, FAA AC 150/5345-43J, CAAC MH/T 6012-2015 and AC-137-CA-2017
Installation Type
Fixed Surface Mounting
Mounting Bracket
Subject to separate supply configuration
Product Dimensions and Mounting Schematic
The manufacturer dimensional schematic identifies an overall diameter of 267mm and a total height of 295mm. The mounting base incorporates four M10 fixing positions arranged on a 245mm pitch circle diameter (PCD).
Dimension Parameter
Measurement
Overall Diameter
267mm
Overall Height
295mm
Mounting PCD
Ø245mm
Mounting Holes
4 × M10
Approximate Net Weight
4.6kg
The mounting arrangement is intended for installation on a suitable structural support or mounting bracket. Installation should provide secure mechanical fixing, appropriate electrical connections, and suitable waterproof cable entry arrangements.
Applicable Aviation Standards
The supplied manufacturer documentation references the following aviation obstruction lighting standards:
ICAO Annex 14, Volume I, Aerodrome Design and Operations.
FAA Advisory Circular AC 150/5345-43J, Specification for Obstruction Lighting Equipment.
CAAC MH/T 6012-2015, Aviation Obstruction Light.
CAAC AC-137-CA-2017.
These are manufacturer-referenced standards. Compliance and certification for a particular installation or jurisdiction should be confirmed against the applicable requirements.
Typical Applications
Telecommunications and communication towers
High-rise buildings and rooftop structures
Industrial chimneys and smokestacks
Electrical transmission towers
Bridges and structural pylons
Industrial facilities and elevated equipment structures
Airport-related obstruction marking installations
Other tall structures requiring medium intensity aviation warning lights
Configurable Options for Special Orders
The following options may be available for special orders, subject to manufacturer confirmation, technical feasibility, and order requirements:
Alternative power supply configurations, including DC options.
Adjustable flashing frequency within the manufacturer's supported range of 20–60 FPM.
GPS/BeiDou wireless flash synchronization.
LoRa wireless synchronization, with manufacturer-stated range up to 10km.
Remote monitoring and control functions.
Customized synchronization and control arrangements.
Special-order configurations must be specified and confirmed before ordering. They are not included in the standard product configuration unless expressly stated in the quotation.

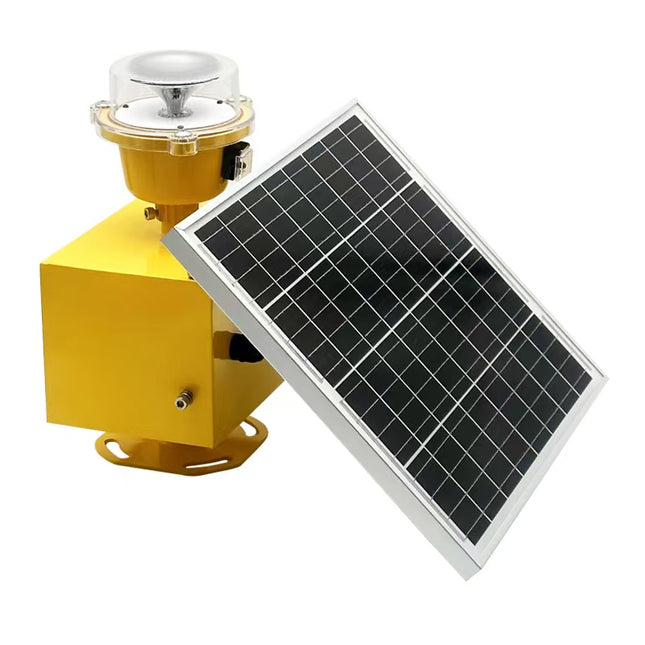

Rubik Solar Low Intensity Type B Aviation Obstruction Light RBRLB01(L)-SOLAR is a fully self-contained solar unit delivering consistent 32.5cd steady red illumination for towers, chimneys, bridges, telecom masts, and high-rise buildings. Compliant with ICAO Annex 14 (8th Edition), CAAC MH/T 6012-2015, AC-137-CA-2017, and FAA Advisory Circular 150/5345-43J, this off-grid ready light eliminates cabling costs and operates reliably across the World, UAE, Dubai, and the wider Middle East.
Key Features
Housing adopts high intensity casting stainless steel, fully sealed structure for maximum durability and corrosion resistance
High efficiency SMT LED chip with reflecting optical structure for high brightness and long lifespan
Advanced independent R&D optical lighting system, spotlight angle meets CAAC and ICAO requirements
Surge protection device rated 3KA for extremely harsh working environments
High conversion efficiency monocrystalline silicon chip with service life of more than 20 years
Impact resistant, anti-lightning, resistant to sunlight, anti-snow, withstands typhoons, hail and severe weather up to 240 km/h
Built-in independent battery charge and discharge management module for easy maintenance
Lithium iron phosphate battery with lifespan more than 2 times that of ordinary lead-acid battery
Integrated high-power 25W solar panel design with high charging efficiency
Remote control and telemetry can be customized
IP65 protection rating, dustproof and waterproof for permanent outdoor installation
Operates at altitudes of 5500m or more above sea level
Performed Standards
Authority
Standard
Scope
CAAC
MH/T 6012-2015 and AC-137-CA-2017
Aviation obstruction light
ICAO
ICAO Annex 14 Volume I The 8th Edition
Airport design and operation
FAA
Advisory Circular 150/5345-43J
Specification for Obstruction Lighting Equipment
Specifications
Specification
Details
Model Number
RBRLB01(L)-SOLAR
Item Number
Type
Low Intensity Type B Single Light
Power Supply
Solar power supply (DC)
Power Frequency
DC supply
Average Power Consumption
2.6W or less
Solar Panel Power
25W monocrystalline silicon
Battery Type
Lithium iron phosphate battery (LiFePO4)
Battery Capacity
12.8V 12AH
Working Mode
Steady light
Effective Intensity (Night)
32.5 cd or more
Light Source
LED
Light Source Lifespan
200,000 hours or more
Emitted Color
Red
Shell Material
Stainless steel
Luminous Mirror Material
Optical PC
Vertical Divergence
More than 10 degrees
Horizontal Output
360 degrees
Overall Size
450 x 433 x 302 mm (L x W x H)
Installation Size
80 x 80 mm, M8
Photocell Stage
50 / 100 Lux
Ambient Temperature
-40 degrees C to +55 degrees C
Relative Humidity
0% to 95%
Protection Grade
IP65
Wind Load
240 km/h
Weight
6.5 kg
Surge Protection Rating
3KA
Seismic Resistance
10 to 500Hz, 2G, 10 min/cycle, XYZ 60 minutes per axis
Mean Time Between Failure
200,000 hours or more, MIL-HDBK-217F (25 degrees C)
EMC Standards
Emitted EN55022 (CISPR22) Class A, Harmonic EN61000-3-2 and -3
Operating Altitude
5500 m or more above sea level
Rain Resistance
Can be exposed to rain in any wind direction
Salt Spray
Can be exposed to salt spray
Radiation
Can be exposed to solar radiation
Insulation Characteristic
Not applicable
Applications
Ideal for off-grid and remote aviation safety marking across the UAE and Middle East on airports, communication towers, chimneys, bridges, high mast lamps, super high-rise buildings, blocks, and telecom towers requiring compact, ICAO and FAA-compliant solar low intensity Type B aviation warning lights without grid power access.
Usage Notes
If storage time exceeds 3 months, place the product outdoors in sunshine for 3 days every 3 months to prevent battery damage.
Installation personnel must check that the power switch is on and fixing screws are tightened after installation.
Non-professional personnel should not repair the equipment to avoid enlarging the fault and personal injury.
For solar product storage, strictly comply with the provisions provided in the product documentation.
The Rubik RBLB01(L) is a low intensity Type B LED aviation obstruction light for marking elevated structures and aviation obstacles. It emits a steady red light rated at 32 candela and operates continuously without flashing. The unit is designed for communication towers, high-rise buildings, industrial chimneys, bridges, transmission structures and rooftop installations.
The optical system uses SMT LEDs with reflective optics providing 360-degree horizontal light distribution and a vertical divergence of at least 10 degrees. The housing is constructed from aviation aluminum alloy with a transparent polycarbonate optical cover. The sealed assembly has an IP65 protection rating and includes surge and overcurrent protection.
The product label identifies an AC 220V, 60Hz single-phase / DC 180V configuration. Average power consumption is no more than 2.6W. The mounting interface uses a G3/4 cylindrical pipe thread, with optional flange disc mounting accessories.
Key Product Features
Low intensity Type B aviation obstruction warning light
Steady red light, 32cd
Continuous illumination without flashing
360-degree horizontal light distribution
At least 10-degree vertical divergence
AC 220V, 60Hz single-phase / DC 180V
Average power consumption ≤2.6W
Aluminum alloy housing and polycarbonate optical cover
IP65 ingress protection
5kA surge protection and overcurrent protection
G3/4 threaded mounting interface
Technical Specifications
Parameter
Specification
Brand
Rubik
Model
RBLB01(L)
Product
Low Intensity Type B Aviation Obstruction Light
Light Color
Red
Luminous Intensity
32cd
Working Mode
Steady Burning
Light Source
SMT LED
Horizontal Distribution
360°
Vertical Divergence
≥10°
Power Supply
AC 220V, 60Hz, Single Phase / DC 180V
Average Power Consumption
≤2.6W
Energy Efficiency
≥95%
Housing Material
Cast Aviation Aluminum Alloy
Optical Cover
Optical Polycarbonate (PC)
Ingress Protection
IP65
Surge Protection
5kA
Overcurrent Protection
Integrated
Operating Temperature
-40°C to +55°C
Relative Humidity
0% to 95%
Wind Resistance
240km/h
Overall Dimensions
126 × 132 × 125mm
Mounting Interface
G3/4 Cylindrical Pipe Thread
Net Weight
1.1kg, Excluding Mounting Bracket
LED Lifespan
≥200,000 Hours
Mean Time Between Failures
≥200,000 Hours, MIL-HDBK-217F at 25°C
Vibration Resistance
10–500Hz, 2G
Insulation
1.414kV DC for 10 Seconds
Leakage Current
<10µA
Operating Altitude
≥2,500m
Photocell Switching Levels
50/100 Lux
EMC Standards
EN55022 (CISPR22) Class A; EN61000-3-2; EN61000-3-3
Environmental Resistance
Rain, Salt Spray and Solar Radiation
Applicable Aviation Standards
ICAO Annex 14, Volume I, 8th Edition
FAA AC 150/5345-43J
CAAC MH/T 6012-2015
CAAC AC-137-CA-2017
Typical Applications
Communication towers, high-rise buildings, industrial chimneys, electrical transmission towers, bridges, rooftop structures and other elevated aviation obstacles.
Options for Special Orders
GPS/BeiDou synchronization
LoRa wireless synchronization up to 10km
Remote monitoring and telemetry
Customized control arrangements
Optional flange disc mounting accessories

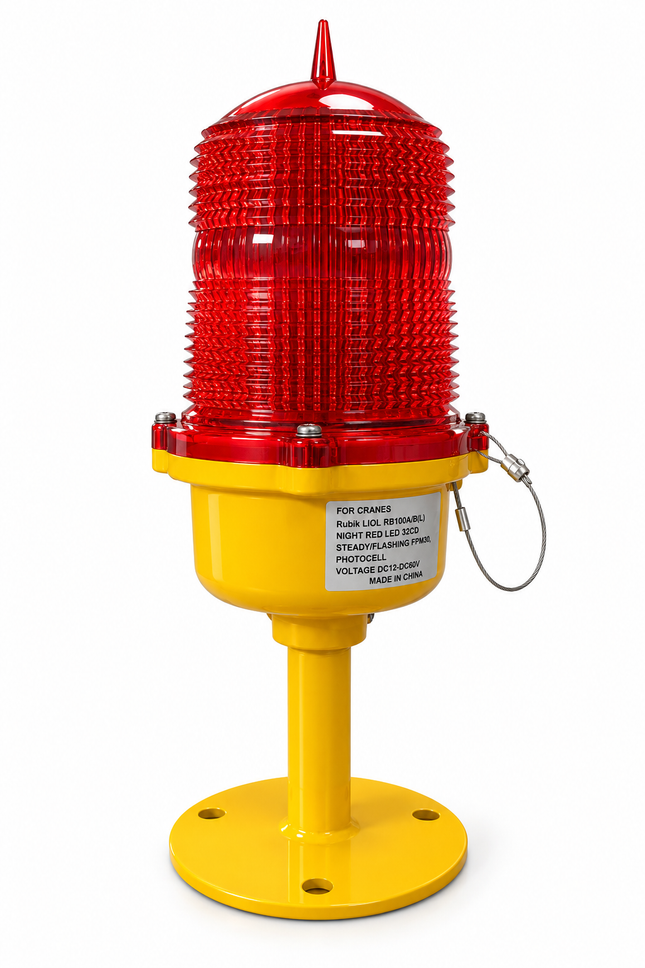

The Rubik RBLIB is a low intensity Type B LED aviation obstruction light designed for marking elevated structures and aviation obstacles. It produces red warning illumination rated at 32 candela. The standard configuration operates in steady-burning mode, while a flashing version operating at 30 flashes per minute (30 FPM) is available as a customized option.
The aviation obstruction light is suitable for telecommunications towers, high-rise buildings, industrial chimneys, electrical transmission structures, bridges, rooftop installations and other elevated obstacles requiring low intensity red warning lighting.
The optical assembly incorporates an LED light source and a Fresnel-type polycarbonate lens providing 360° horizontal light distribution and a vertical beam divergence of at least 10°. The housing is constructed from aviation aluminum alloy with a sealed structure and IP67 ingress protection for outdoor installation.
The Rubik RBLIB operates on AC 220V power and incorporates automatic photocell control for dusk-to-dawn operation. The electrical system includes lightning and overcurrent protection. The product can be supplied with or without a mounting base, depending on installation requirements.
Key Product Features
Low intensity Type B red LED aviation obstruction warning light.
Red luminous intensity of 32cd.
Default operating mode: steady-burning red.
Optional customized flashing mode: 30 FPM.
Flashing cycle of 2 seconds when configured for 30 FPM.
360° horizontal light distribution.
Vertical beam divergence of at least 10°.
Fresnel-type optical polycarbonate lens.
AC 220V power supply.
Power consumption of 3W or less.
Automatic photocell control for dusk-to-dawn operation.
Aviation aluminum alloy housing.
IP67 ingress protection.
Lightning and overcurrent protection.
Operating temperature range from -40°C to +70°C.
Available with or without mounting base.
Technical Specifications
Parameter
Specification
Brand
Rubik
Model
RBLIB
Product Type
LED Aviation Obstruction Warning Light
Classification
Low Intensity Type B / FAA L-810
Light Color
Red
Luminous Intensity
32cd
Standard Operating Mode
Steady Burning
Customized Operating Mode
Flashing, 30 FPM
Flashing Frequency
30 Flashes per Minute (Customized Version)
Flash Cycle
2 Seconds (Customized Flashing Version)
Light Source
LED
Horizontal Light Distribution
360°
Vertical Beam Divergence
≥10°
Power Supply
AC 220V
Power Supply Frequency
50–60Hz
Power Consumption
≤3W
Automatic Light Control
Integrated Photocell
Photocell Switching Threshold
50/100 Lux
Housing Material
Aviation Aluminum Alloy
Optical Cover Material
Polycarbonate (PC)
Optical Lens
Fresnel-Type Lens
Ingress Protection Rating
IP67
Electrical Protection
Lightning and Overcurrent Protection
Operating Temperature
-40°C to +70°C
Wind Resistance
120m/s
LED Service Life
Up to 100,000 Hours
Weight
Approx. 1kg
Dimensions Without Mounting Base
Ø136 × 220mm
Overall Height With Mounting Base
260mm
Mounting Base Diameter
Ø161mm
Mounting Arrangement
3/4-inch Threaded Connection or Mounting Base
Mounting Base
Available With or Without Base
Weather Resistance
UV, Rain, Snow, Hail and Outdoor Weather Exposure
Product Dimensions and Mounting
The Rubik RBLIB can be installed using a 3/4-inch threaded mounting connection or a circular mounting base. The light body measures approximately 136mm in diameter and 220mm in height without the mounting base. The complete assembly with mounting base has an overall height of approximately 260mm and a base diameter of 161mm.
Aviation Standards and Classification
ICAO Annex 14, Volume I – Low Intensity Type B Obstacle Lighting
FAA L-810 – Low Intensity Red Obstruction Lighting Classification
Typical Applications
Telecommunications towers and communication masts
High-rise buildings and rooftop structures
Industrial chimneys and smokestacks
Electrical transmission towers and pylons
Bridges and elevated structures
Tower cranes and construction structures
Industrial facilities and other aviation obstacles
Options for Special Orders
Customized flashing operation at 30 FPM instead of standard steady-burning operation
Alternative supply voltages: AC 120V, DC 12V, DC 24V or DC 48V
Dry-contact alarm function
Mounting base configuration
The Rubik RBMB01(L)-SOLAR is a solar-powered, dual-color medium intensity LED aviation obstruction light designed for marking tall buildings, telecommunications towers, chimneys, transmission towers, bridges, and other elevated structures. The light operates with a white flashing signal of 20,000 candela during daytime and a red flashing signal of 2,000 candela at night, with a flashing frequency of 30 flashes per minute (FPM).
The unit incorporates a double-layer LED light source with primary and secondary lighting assemblies. If the primary light source fails, the system automatically switches to the secondary light source. The reflective optical system provides 360° horizontal light distribution with a 3° vertical beam divergence.
The solar power system includes a 25W monocrystalline solar panel and a 12.8V 12Ah lithium iron phosphate (LiFePO4) battery with an integrated charging and discharging management system. An automatic photocell controls daytime and nighttime operation according to ambient light conditions.
The aviation obstruction light is constructed with a cast aluminum alloy housing and transparent polycarbonate optical cover. The assembly has an IP68 ingress protection rating and incorporates surge protection, weather-resistant construction, and an adjustable solar panel mounting bracket.
Key Product Features
Solar-powered dual-color medium intensity aviation obstruction warning light.
White daytime flashing light with 20,000cd effective intensity.
Red nighttime flashing light with 2,000cd effective intensity.
Standard flashing frequency of 30 FPM with a 2-second flash cycle.
Double-layer LED optical assembly with automatic standby light source activation.
Integrated 25W monocrystalline solar panel.
12.8V 12Ah lithium iron phosphate rechargeable battery.
Automatic day and night switching through an integrated photocell.
Independent battery charging and discharging management system.
360° horizontal light distribution and 3° vertical beam divergence.
Cast aluminum alloy housing with polycarbonate optical cover.
IP68 ingress protection for outdoor installation.
Operating temperature range from -40°C to +55°C.
Wind resistance rating of 240km/h.
Adjustable solar panel mounting assembly.
Technical Specifications
Parameter
Specification
Brand
Rubik
Model
RBMB01(L)-SOLAR
Product Type
Solar Aviation Obstruction Warning Light
Light Classification
Medium Intensity, Dual Color
Light Source
SMT LED
Light Source Configuration
Double-Layer Primary and Secondary LED
Backup Light Operation
Automatic Switching
Daytime Light
White Flashing, 20,000cd
Nighttime Light
Red Flashing, 2,000cd
Flashing Frequency
30 FPM
Flash Cycle
2 Seconds
Flashes per Hour
1,800
Operating Mode
Automatic Day/Night Switching
Photocell Switching Levels
50/100 Lux
Horizontal Light Distribution
360°
Vertical Beam Divergence
3°
Power Supply
Solar Power, DC
Solar Panel Type
Monocrystalline Silicon
Solar Module Model
DG25W-16.5V
Solar Panel Peak Power
25W
Maximum Power Voltage (Vmp)
16.5V
Maximum Power Current (Imp)
1.52A
Open Circuit Voltage (Voc)
19.47V
Short Circuit Current (Isc)
1.67A
Solar Panel Power Tolerance
±3%
Maximum Solar Module System Voltage
1000V
Maximum Solar Module Series Fuse
15A
Battery Type
Lithium Iron Phosphate (LiFePO4)
Battery Voltage
12.8V
Battery Capacity
12Ah
Battery Nominal Energy
153.6Wh
Battery Management
Integrated Charge and Discharge Controller
Average Power at 20 FPM
≤2.5W
Estimated Average Power at 30 FPM
3.75W, Proportional Estimate
Housing Material
Cast Aviation Aluminum Alloy
Optical Cover
Polycarbonate (PC)
Ingress Protection
IP68
Operating Temperature
-40°C to +55°C
Relative Humidity
0% to 95%
Wind Resistance
240km/h
Overall Dimensions
515 × 450 × 350mm
Installation Size
Ø90mm, 4 × M8
Net Weight
Approx. 6.2kg
LED Lifespan
≥200,000 Hours
Mean Time Between Failures
≥200,000 Hours, MIL-HDBK-217F at 25°C
Vibration Resistance
10–500Hz, 2G
Operating Altitude
5,500m
EMC Standards
EN55022 (CISPR22) Class A, EN61000-3-2, EN61000-3-3
Product Dimensions and Mounting
The complete solar aviation obstruction light assembly measures 515mm in overall horizontal projection, 450mm in solar panel width, and 350mm in overall height. The mounting arrangement incorporates four M8 fixing positions on a 90mm diameter mounting pattern. The solar panel is supported by an adjustable bracket attached to the light assembly.
Applicable Aviation Standards
ICAO Annex 14, Volume I, Aerodrome Design and Operations, 8th Edition.
FAA Advisory Circular AC 150/5345-43J, Specification for Obstruction Lighting Equipment.
CAAC MH/T 6012-2015, Aviation Obstruction Light.
CAAC AC-137-CA-2017.
Typical Applications
Telecommunications and communication towers
High-rise buildings and rooftop structures
Industrial chimneys and smokestacks
Electrical transmission towers
Bridges and structural pylons
Industrial facilities and elevated structures
Remote locations requiring solar-powered aviation obstruction lighting
Configurable Options for Special Orders
The following configurations may be arranged for special orders, subject to technical requirements and order quantities:
GPS/BeiDou wireless flash synchronization.
LoRa wireless synchronization with a range of up to 10km.
Remote monitoring and telemetry.
Customized control and synchronization arrangements.
Power your aviation safety infrastructure without grid dependency. The Rubik RBMB01(L)-SOLAR Solar Powered Medium Intensity Type B Aviation Obstruction Light delivers reliable 2000cd red flashing illumination for towers, chimneys, bridges, and high-rise structures, fully compliant with ICAO Annex 14, CAAC MH/T 6012-2015, AC-137-CA-2017, and FAA Advisory Circular 150/5345-43J. Engineered for demanding environments across world and specially for the UAE, Dubai, and the wider Middle East, this self-contained solar unit eliminates cabling costs and operates in complete off-grid locations.
Key Features
Housing adopts high intensity casting aviation aluminum, fully sealed and corrosion-resistant structure
Advanced independent R&D optical lighting system, spotlight angle meets CAAC and ICAO requirements
Surge protection device rated for extremely harsh working environments
High conversion efficiency monocrystalline silicon chip with service life of more than 20 years
Impact resistant, anti-lightning, resistant to sunlight, anti-snow, withstands typhoons, hail and severe weather up to 240 km/h
Built-in independent battery charge and discharge management module for easy maintenance
Optional GPS Beidou wireless synchronization, LORA-10KM wireless sync, remote control and telemetering
Integrated high-power 25W solar panel design with high charging efficiency
IP68 protection rating, fully waterproof and dustproof for permanent outdoor installation
Lithium iron phosphate battery with 12.8V 12AH capacity for reliable overnight operation
Performed Standards
Authority
Standard
Scope
CAAC
MH/T 6012-2015 and AC-137-CA-2017
Aviation obstruction light
ICAO
ICAO Annex 14 Volume I The 8th Edition
Airport design and operation
FAA
Advisory Circular 150/5345-43J
Specification for Obstruction Lighting Equipment
Specifications
Specification
Details
Model Number
RBMB01(L)-SOLAR
Item Number
TX-MB-01(L)
Type
Medium Intensity Type B
Power Supply
Solar power supply (DC)
Average Power Consumption
2.5W or less
Solar Panel Power
25W monocrystalline silicon
Battery Type
Lithium iron phosphate battery
Battery Capacity
12.8V 12AH
Working Mode
Flashing
Flash Frequency
20 times per minute
Effective Intensity (Night)
2000 cd (default 1600 cd or more)
Light Source
LED
Light Source Lifespan
200,000 hours or more
Emitted Color
Red
Shell Material
Aviation dedicated aluminum alloy
Luminous Mirror Material
Optical PC
Vertical Divergence
3 degrees
Horizontal Output
360 degrees
Overall Size (with panel)
466 x 370 x 350 mm (L x W x H)
Installation Size
80 x 80 mm, M8
Photocell Stage
50 / 100 Lux
Ambient Temperature
-40 degrees C to +55 degrees C
Relative Humidity
0% to 95%
Protection Grade
IP68
Wind Load
240 km/h
Weight
Approximately 6 kg
Seismic Resistance
10 to 500Hz, 2G, 10 min/cycle, XYZ 60 minutes per axis
Mean Time Between Failure
200,000 hours or more, MIL-HDBK-217F (25 degrees C)
EMC Standards
Emitted EN55022 (CISPR22) Class A, Harmonic EN61000-3-2 and -3
Operating Altitude
5500 m or more above sea level
Rain Resistance
Can be exposed to rain in any wind direction
Salt Spray
Can be exposed to salt spray
Radiation
Can be exposed to solar radiation
Applications
Ideal for off-grid and remote installations across the World, as well as in UAE and Middle East including airports, communication towers, chimneys, bridges, high mast lamps, high-rise buildings, blocks, and telecom towers requiring durable, ICAO FAA CAAC GCAA - compliant medium intensity aviation warning lights without grid power access.
Usage Notes
If storage time exceeds 3 months, place the product outdoors in sunshine for 3 days every 3 months to prevent battery damage.
Installation personnel must check that the power switch is on and fixing screws are tightened after installation.
Non-professional personnel should not repair the equipment to avoid enlarging the fault and personal injury.
For solar product storage, strictly comply with the provisions provided in the product documentation.
The Rubik RBMB01(L) is a medium intensity Type B red LED aviation obstruction light designed for marking tall structures and aviation obstacles. It produces a flashing red warning light with an effective luminous intensity of 2,000 candela and operates at 30 flashes per minute (FPM), equivalent to one flash cycle every 2 seconds.
The aircraft warning light is suitable for telecommunications towers, high-rise buildings, industrial chimneys, electrical transmission towers, bridges, rooftop structures and other elevated installations requiring medium intensity red obstruction lighting.
The optical assembly incorporates high-efficiency SMT LED technology and a reflective optical system providing 360° horizontal light distribution with a 3° vertical beam divergence. The light features a cast aviation aluminum alloy housing, a transparent polycarbonate optical cover and a sealed construction with IP65 ingress protection.
The RBMB01(L) operates with an AC 220V, 50Hz single-phase power supply or DC 180V configuration. The unit incorporates 5kA surge protection, thermal management and a fixed mounting base with four M8 mounting positions.
Key Product Features
Medium intensity Type B red LED aviation obstruction warning light.
Flashing red light with 2,000cd luminous intensity.
Standard flashing frequency of 30 FPM.
Complete flash cycle of 2 seconds.
1,800 flashes per hour.
360° horizontal light distribution.
3° vertical beam divergence.
High-efficiency SMT LED optical assembly.
Cast aviation aluminum alloy housing.
Transparent polycarbonate optical cover.
IP65 ingress protection for outdoor installation.
Integrated 5kA surge protection.
AC 220V, 50Hz single-phase or DC 180V power supply.
Operating temperature range from -56°C to +66°C.
Wind resistance up to 240km/h.
Four M8 mounting positions.
Technical Specifications
Parameter
Specification
Brand
Rubik
Model
RBMB01(L)
Product Type
LED Aviation Obstruction Warning Light
Classification
Medium Intensity Type B
Light Color
Red
Effective Luminous Intensity
2,000cd
Light Source
SMT LED
Operating Mode
Flashing
Flashing Frequency
30 FPM
Flash Cycle
2 Seconds
Flashes per Hour
1,800
Horizontal Light Distribution
360°
Vertical Beam Divergence
3°
Power Supply
AC 220V, Single Phase / DC 180V
AC Power Frequency
50Hz
Reference Average Power
≤2.5W at 20 FPM
Housing Material
Cast Aviation Aluminum Alloy
Optical Cover Material
Optical Polycarbonate (PC)
Optical System
Reflective Optical Structure
Ingress Protection Rating
IP65
Surge Protection
5kA
Operating Temperature
-56°C to +66°C
Relative Humidity
0% to 95%
Wind Resistance
240km/h
Overall Dimensions
215mm Diameter × 204mm Height
Mounting Arrangement
Ø185–200mm, 4 × M8
Net Weight
Approx. 2.3kg, Excluding Mounting Bracket
LED Lifespan
≥200,000 Hours
Mean Time Between Failures
≥200,000 Hours, MIL-HDBK-217F at 25°C
Vibration Resistance
10–500Hz, 2G
Insulation Test
1.414kV DC, 10 Seconds
Leakage Current
<10µA
Environmental Resistance
Rain, Salt Spray and Solar Radiation
EMC Standards
EN55022 (CISPR22) Class A, EN61000-3-2, EN61000-3-3
Product Dimensions and Mounting
The Rubik RBMB01(L) has an overall diameter of 215mm and a total height of 204mm. The mounting base incorporates four M8 fixing positions with an adjustable mounting diameter range of 185mm to 200mm. The assembly is suitable for installation on a compatible structural mounting bracket or fixed support.
Dimension Parameter
Measurement
Overall Diameter
215mm
Overall Height
204mm
Mounting Diameter
Ø185–200mm
Mounting Positions
4 × M8
Approximate Net Weight
2.3kg
Applicable Aviation Standards
ICAO Annex 14, Volume I, Aerodrome Design and Operations, 8th Edition.
FAA Advisory Circular AC 150/5345-43J, Specification for Obstruction Lighting Equipment.
CAAC MH/T 6012-2015, Aviation Obstruction Light.
CAAC AC-137-CA-2017.
Typical Applications
Telecommunications towers and communication masts.
High-rise buildings and rooftop structures.
Industrial chimneys and smokestacks.
Electrical transmission towers and pylons.
Bridges and elevated structural installations.
Industrial facilities and tall equipment structures.
Other aviation obstacles requiring medium intensity Type B red warning lights.
Options for Special Orders
The following configurations may be arranged for special orders, subject to technical requirements and order quantities:
GPS/BeiDou wireless flash synchronization.
LoRa wireless synchronization with a range of up to 10km.
Remote monitoring and telemetry.
Customized synchronization and control arrangements.
The Rubik RBLB01(L) is a low intensity Type B LED aviation obstruction light for marking elevated structures and aviation obstacles. It emits a steady red light rated at 32 candela and operates continuously without flashing. The unit is designed for communication towers, high-rise buildings, industrial chimneys, bridges, transmission structures and rooftop installations.
The optical system uses SMT LEDs with reflective optics providing 360-degree horizontal light distribution and a vertical divergence of at least 10 degrees. The housing is constructed from aviation aluminum alloy with a transparent polycarbonate optical cover. The sealed assembly has an IP65 protection rating and includes surge and overcurrent protection.
The product label identifies an AC 220V, 60Hz single-phase / DC 180V configuration. Average power consumption is no more than 2.6W. The mounting interface uses a G3/4 cylindrical pipe thread, with optional flange disc mounting accessories.
Key Product Features
Low intensity Type B aviation obstruction warning light
Steady red light, 32cd
Continuous illumination without flashing
360-degree horizontal light distribution
At least 10-degree vertical divergence
AC 220V, 60Hz single-phase / DC 180V
Average power consumption ≤2.6W
Aluminum alloy housing and polycarbonate optical cover
IP65 ingress protection
5kA surge protection and overcurrent protection
G3/4 threaded mounting interface
Technical Specifications
Parameter
Specification
Brand
Rubik
Model
RBLB01(L)
Product
Low Intensity Type B Aviation Obstruction Light
Light Color
Red
Luminous Intensity
32cd
Working Mode
Steady Burning
Light Source
SMT LED
Horizontal Distribution
360°
Vertical Divergence
≥10°
Power Supply
AC 220V, 60Hz, Single Phase / DC 180V
Average Power Consumption
≤2.6W
Energy Efficiency
≥95%
Housing Material
Cast Aviation Aluminum Alloy
Optical Cover
Optical Polycarbonate (PC)
Ingress Protection
IP65
Surge Protection
5kA
Overcurrent Protection
Integrated
Operating Temperature
-40°C to +55°C
Relative Humidity
0% to 95%
Wind Resistance
240km/h
Overall Dimensions
126 × 132 × 125mm
Mounting Interface
G3/4 Cylindrical Pipe Thread
Net Weight
1.1kg, Excluding Mounting Bracket
LED Lifespan
≥200,000 Hours
Mean Time Between Failures
≥200,000 Hours, MIL-HDBK-217F at 25°C
Vibration Resistance
10–500Hz, 2G
Insulation
1.414kV DC for 10 Seconds
Leakage Current
<10µA
Operating Altitude
≥2,500m
Photocell Switching Levels
50/100 Lux
EMC Standards
EN55022 (CISPR22) Class A; EN61000-3-2; EN61000-3-3
Environmental Resistance
Rain, Salt Spray and Solar Radiation
Applicable Aviation Standards
ICAO Annex 14, Volume I, 8th Edition
FAA AC 150/5345-43J
CAAC MH/T 6012-2015
CAAC AC-137-CA-2017
Typical Applications
Communication towers, high-rise buildings, industrial chimneys, electrical transmission towers, bridges, rooftop structures and other elevated aviation obstacles.
Options for Special Orders
GPS/BeiDou synchronization
LoRa wireless synchronization up to 10km
Remote monitoring and telemetry
Customized control arrangements
Optional flange disc mounting accessories
ICAO and LIOL compliant Flight Light, This Single LED Low-Intensity Aviation Obstruction Light is designed for reliable visual warning and marking of structures. It features high-quality Cree LED (American brand) light sources and supports LED illumination (White lens cover) for enhanced visibility in different operating conditions.
Compliance: As specified by Annex 14 of ICAO regulations, Low Intensity Obstruction Lights (LIOL) should be used to warn the presence of obstacles up to 45m height, such as telecommunication towers, wind turbines, chimneys, cranes, buildings and other structures.
These lights are used to mark fixed obstacles such as buildings, antennas, towers, cranes, and other structures that may extend into airspace. Units are available in single-head or single-head configurations and use a red or transparent lens/globe for obstruction marking. Designed for AC 220V, 50/60Hz power and can be connected directly to an existing power circuit. A photocell (optical sensor) is included for automatic operation at night.
The lamp operates in a single-head flashing mode, providing consistent warning signals while maintaining low power consumption and long service life. With a service life exceeding 100,000 hours, it is suitable for continuous operation in outdoor environments.
Technical Specifications
Light Source Brand: CREE (American brand LED)
Light Color: White
Lens/Globe Cover: Transparent
Luminous Intensity: ≥ 32.5 cd
Operating Mode: Flashing Burning
Input Voltage: AC 220V
Power Frequency: 50Hz / 60Hz
Control: Photocell (Automatic dusk-to-dawn activation)
Configuration: Single lamp head
Housing: Die-cast aluminum
Finish: Aviation yellow powder coat
Hardware: Stainless steel
Compliance
FAA AC: 150/5345-43J
ETL L-810
ICAO Annex 14, Vol. 1, Type B
Typical Use Cases
Obstruction marking on buildings and rooftops
Parking structures (canopies, entrances, exits)
External structures for real estate companies and offices leasing units
Fixed installations requiring low-intensity flashing warning light
ICAO and FAA compliant LIOL Flight Light, This Single LED Low-Intensity Aviation Obstruction Light is designed for reliable visual warning and marking of structures. It features high-quality Cree LED (American brand) light sources and supports single LED illumination (Red lens cover) for enhanced visibility in different operating conditions.
Compliance: As specified by Annex 14 of ICAO regulations, Low Intensity Obstruction Lights (LIOL) should be used to warn the presence of obstacles up to 45m height, such as telecommunication towers, wind turbines, chimneys, cranes, buildings and other structures.
These lights are used to mark fixed obstacles such as buildings, antennas, towers, cranes, and other structures that may extend into airspace. Units are available in single-head or single-head configurations and use a red or transparent lens/globe for obstruction marking. Designed for AC 220V, 50/60Hz power and can be connected directly to an existing power circuit. A photocell (optical sensor) is included for automatic operation at night.
The lamp operates in a single Steady mode, providing consistent warning signals while maintaining low power consumption and long service life. With a service life exceeding 100,000 hours, it is suitable for continuous operation in outdoor environments.
Technical Specifications
Light Source Brand: CREE (American brand LED)
Light Color: Red
Lens/Globe Cover: Red
Luminous Intensity: ≥ 32.5 cd
Operating Mode: Steady Burning
Input Voltage: AC 220V
Power Frequency: 50Hz / 60Hz
Control: Photocell (Automatic dusk-to-dawn activation)
Configuration: Single lamp head
Housing: Die-cast aluminum
Finish: Aviation yellow powder coat
Hardware: Stainless steel
Compliance
FAA AC: 150/5345-43J
ETL L-810
ICAO Annex 14, Vol. 1, Type B
Typical Use Cases
Obstruction marking on buildings and rooftops
Parking structures (canopies, entrances, exits)
External structures for real estate companies and offices leasing units
Fixed installations requiring low-intensity Steady warning light
Fade proof Transparent Lens with Red LED, this Flight Light FAA L-810 is compliant. This Dual LED Low-Intensity Aviation Obstruction Light is designed for reliable visual warning and marking of structures. It features high-quality Cree LED (American brand) light sources and supports dual-LED illumination (Red LED and Transparent lens cover) for enhanced visibility in different operating conditions.
Compliance: As specified by Annex 14 of ICAO regulations, Low Intensity Obstruction Lights (LIOL) should be used to warn the presence of obstacles up to 45m height, such as telecommunication towers, wind turbines, chimneys, cranes, buildings and other structures.
These lights are used to mark fixed obstacles such as buildings, antennas, towers, cranes, and other structures that may extend into airspace. Units are available in single-head or dual-head configurations and use a red or transparent lens/globe for obstruction marking. Designed for AC 220V, 50/60Hz power and can be connected directly to an existing power circuit. A photocell (optical sensor) is included for automatic operation at night.
The lamp operates in a dual-head flashing mode, providing consistent warning signals while maintaining low power consumption and long service life. With a service life exceeding 100,000 hours, it is suitable for continuous operation in outdoor environments.
Technical Specifications
Light Source Brand: Taiwan brand LED
Light Color: Red
Lens/Globe Cover: Transparent
Luminous Intensity: ≥ 32.5 cd
Operating Mode: Steady Burning (Simultaneously)
Input Voltage: AC 220V
Power Frequency: 50Hz / 60Hz
Control: Photocell (Automatic dusk-to-dawn activation)
Configuration: Dual lamp head
Housing: Die-cast aluminum
Finish: Aviation yellow powder coat
Hardware: Stainless steel
Compliance
FAA AC: 150/5345-43J
ETL L-810
ICAO Annex 14, Vol. 1, Type B
Typical Use Cases
Obstruction marking on buildings and rooftops
Parking structures (canopies, entrances, exits)
External structures for real estate companies and offices leasing units
Fixed installations requiring low-intensity flashing warning light
Flight Light FAA L-810 compatible This Dual LED Low-Intensity Aviation Obstruction Light is designed for reliable visual warning and marking of structures. It features high-quality Cree LED (American brand) light sources and supports dual-LED illumination (Red LED and Red lens cover) for enhanced visibility in different operating conditions.
Compliance: As specified by Annex 14 of ICAO regulations, Low Intensity Obstruction Lights (LIOL) should be used to warn the presence of obstacles up to 45m height, such as telecommunication towers, wind turbines, chimneys, cranes, buildings and other structures.
These lights are used to mark fixed obstacles such as buildings, antennas, towers, cranes, and other structures that may extend into airspace. Units are available in single-head or dual-head configurations and use a red or transparent lens/globe for obstruction marking. Designed for AC 220V, 50/60Hz power and can be connected directly to an existing power circuit. A photocell (optical sensor) is included for automatic operation at night.
The lamp operates in a dual-head flashing mode, providing consistent warning signals while maintaining low power consumption and long service life. With a service life exceeding 100,000 hours, it is suitable for continuous operation in outdoor environments.
Technical Specifications
Light Source Brand: Taiwan brand LED
Light Color: Red
Lens/Globe Cover: Transparent Red
Luminous Intensity: ≥ 32.5 cd
Operating Mode: Steady Burning (Simultaneously)
Input Voltage: AC 220V
Power Frequency: 50Hz / 60Hz
Control: Photocell (Automatic dusk-to-dawn activation)
Configuration: Dual lamp head
Housing: Die-cast aluminum
Finish: Aviation yellow powder coat
Hardware: Stainless steel
Compliance
FAA AC: 150/5345-43J
ETL L-810
ICAO Annex 14, Vol. 1, Type B
Typical Use Cases
Obstruction marking on buildings and rooftops
Parking structures (canopies, entrances, exits)
External structures for real estate companies and offices leasing units
Fixed installations requiring low-intensity flashing warning light
Flight Light FAA L-810 compatible This Dual LED Low-Intensity Aviation Obstruction Light is designed for reliable visual warning and marking of structures. It features high-quality Cree LED (American brand) light sources and supports dual-LED illumination (White and Red LED and Transparent and Red lens cover) for enhanced visibility in different operating conditions.
Compliance: As specified by Annex 14 of ICAO regulations, Low Intensity Obstruction Lights (LIOL) should be used to warn the presence of obstacles up to 45m height, such as telecommunication towers, wind turbines, chimneys, cranes, buildings and other structures.
These lights are used to mark fixed obstacles such as buildings, antennas, towers, cranes, and other structures that may extend into airspace. Units are available in single-head or dual-head configurations and use a red or transparent lens/globe for obstruction marking. Designed for AC 220V, 50/60Hz power and can be connected directly to an existing power circuit. A photocell (optical sensor) is included for automatic operation at night.
The lamp operates in a dual-head flashing mode, providing consistent warning signals while maintaining low power consumption and long service life. With a service life exceeding 100,000 hours, it is suitable for continuous operation in outdoor environments.
Technical Specifications
Light Source Brand: CREE (American brand LED)
Light Color: White and Red
Lens/Globe Cover: Transparent + Red
Luminous Intensity: ≥ 32.5 cd
Operating Mode: Steady Burning (Simultaneously)
Input Voltage: AC 220V
Power Frequency: 50Hz / 60Hz
Control: Photocell (Automatic dusk-to-dawn activation)
Configuration: Dual lamp head
Housing: Die-cast aluminum
Finish: Aviation yellow powder coat
Hardware: Stainless steel
Compliance
FAA AC: 150/5345-43J
ETL L-810
ICAO Annex 14, Vol. 1, Type B
Typical Use Cases
Obstruction marking on buildings and rooftops
Parking structures (canopies, entrances, exits)
External structures for real estate companies and offices leasing units
Fixed installations requiring low-intensity flashing warning light
Flight Light FAA L-810 compatible This Dual LED Low-Intensity Aviation Obstruction Light is designed for reliable visual warning and marking of structures. It features high-quality Cree LED (American brand) light sources and supports dual-LED illumination (red and red LED and Red lens cover) for enhanced visibility in different operating conditions.
Compliance: As specified by Annex 14 of ICAO regulations, Low Intensity Obstruction Lights (LIOL) should be used to warn the presence of obstacles up to 45m height, such as telecommunication towers, wind turbines, chimneys, cranes, buildings and other structures.
These lights are used to mark fixed obstacles such as buildings, antennas, towers, cranes, and other structures that may extend into airspace. Units are available in single-head or dual-head configurations and use a red or transparent lens/globe for obstruction marking. Designed for AC 220V, 50/60Hz power and can be connected directly to an existing power circuit. A photocell (optical sensor) is included for automatic operation at night.
The lamp operates in a dual-head flashing mode, providing consistent warning signals while maintaining low power consumption and long service life. With a service life exceeding 100,000 hours, it is suitable for continuous operation in outdoor environments.
Technical Specifications
Light Source Brand: CREE (American brand LED)
Light Color: Red
Lens/Globe Cover: Red
Luminous Intensity: ≥ 32.5 cd
Operating Mode: Alternate Flashing Burning
Input Voltage: AC 220V
Power Frequency: 50Hz / 60Hz
Control: Photocell (Automatic dusk-to-dawn activation)
Configuration: Dual lamp head
Housing: Die-cast aluminum
Finish: Aviation yellow powder coat
Hardware: Stainless steel
Compliance
FAA AC: 150/5345-43J
ETL L-810
ICAO Annex 14, Vol. 1, Type B
Typical Use Cases
Obstruction marking on buildings and rooftops
Parking structures (canopies, entrances, exits)
External structures for real estate companies and offices leasing units
Fixed installations requiring low-intensity flashing warning light
Flight Light FAA L-810 compatible This Dual LED Low-Intensity Aviation Obstruction Light is designed for reliable visual warning and marking of structures. It features high-quality Cree LED (American brand) light sources and supports dual-LED illumination (red and red LED, And Red lens cover) for enhanced visibility in different operating conditions.
Compliance: As specified by Annex 14 of ICAO regulations, Low Intensity Obstruction Lights (LIOL) should be used to warn the presence of obstacles up to 45m height, such as telecommunication towers, wind turbines, chimneys, cranes, buildings and other structures.
These lights are used to mark fixed obstacles such as buildings, antennas, towers, cranes, and other structures that may extend into airspace. Units are available in single-head or dual-head configurations and use a red or transparent lens/globe for obstruction marking. Designed for AC 220V, 50/60Hz power and can be connected directly to an existing power circuit. A photocell (optical sensor) is included for automatic operation at night.
The lamp operates in a dual-head STEADY mode, providing consistent warning signals while maintaining low power consumption and long service life. With a service life exceeding 100,000 hours, it is suitable for continuous operation in outdoor environments.
Technical Specifications
Light Source Brand: CREE (American brand LED)
Light Color: Red
Lens/Globe Cover: Red
Luminous Intensity: ≥ 32.5 cd
Operating Mode: Steady Burning (Simultaneously)
Input Voltage: AC 220V
Power Frequency: 50Hz / 60Hz
Control: Photocell (Automatic dusk-to-dawn activation)
Configuration: Dual lamp head
Housing: Die-cast aluminum
Finish: Aviation yellow powder coat
Hardware: Stainless steel
Compliance
FAA AC: 150/5345-43J
ETL L-810
ICAO Annex 14, Vol. 1, Type B
Typical Use Cases
Obstruction marking on buildings and rooftops
Parking structures (canopies, entrances, exits)
External structures for real estate companies and offices leasing units
Fixed installations requiring low-intensity steady warning light
Flight Light FAA L-810 compatible This Dual LED Low-Intensity Aviation Obstruction Light is designed for reliable visual warning and marking of structures. It features high-quality Cree LED (American brand) light sources and supports dual-LED illumination (red and red, white lens cover) for enhanced visibility in different operating conditions.
Compliance: As specified by Annex 14 of ICAO regulations, Low Intensity Obstruction Lights (LIOL) should be used to warn the presence of obstacles up to 45m height, such as telecommunication towers, wind turbines, chimneys, cranes, buildings and other structures.
These lights are used to mark fixed obstacles such as buildings, antennas, towers, cranes, and other structures that may extend into airspace. Units are available in single-head or dual-head configurations and use a red or transparent lens/globe for obstruction marking. Designed for AC 220V, 50/60Hz power and can be connected directly to an existing power circuit. A photocell (optical sensor) is included for automatic operation at night.
The lamp operates in a dual-head steady mode, providing consistent warning signals while maintaining low power consumption and long service life. With a service life exceeding 100,000 hours, it is suitable for continuous operation in outdoor environments.
Technical Specifications
Light Source Brand: CREE (American brand LED)
Light Color: Red
Lens/Globe Cover: Transparent
Luminous Intensity: ≥ 32.5 cd
Operating Mode: Steady Burning (Simultaneously)
Input Voltage: AC 220V
Power Frequency: 50Hz / 60Hz
Control: Photocell (Automatic dusk-to-dawn activation)
Configuration: Dual lamp head
Housing: Die-cast aluminum
Finish: Aviation yellow powder coat
Hardware: Stainless steel
Compliance
FAA AC: 150/5345-43J
ETL L-810
ICAO Annex 14, Vol. 1, Type B
Typical Use Cases
Obstruction marking on buildings and rooftops
Parking structures (canopies, entrances, exits)
External structures for real estate companies and offices leasing units
Fixed installations requiring low-intensity steady burning warning light
