Description

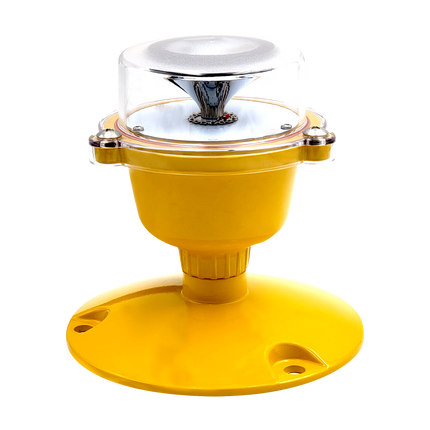

Rubik RBRLB01(L) Low Intensity Type B Aviation Obstruction Light (FAA L-810), engineered to meet ICAO Annex 14 (8th Edition), CAAC MH/T 6012-2015, AC-137-CA-2017, and FAA Advisory Circular 150/5345-43J. Built for permanent outdoor installation across world, UAE, Dubai, and the wider Middle East, this steady-burning red LED light delivers consistent 32.5cd nighttime illumination with ultra-low 2.6W power consumption for towers, chimneys, bridges, telecom masts, and high-rise buildings.
Key Features
- Housing adopts high intensity casting aviation aluminum, fully sealed structure for maximum durability
- High efficiency SMT LED chip with reflecting optical structure for high brightness and long lifespan
- Advanced independent R&D optical lighting system, spotlight angle meets CAAC and ICAO requirements
- Surge protection device rated 5KA for extremely harsh working environments
- Advanced thermal conductive stoving varnish technology for excellent heat dissipation, reduced weight and volume
- Impact resistant, anti-lightning, resistant to sunlight, anti-snow, withstands typhoons, hail and severe weather up to 240 km/h
- Over-current protection function for long-term reliability
- Optional GPS Beidou wireless synchronization, LORA-10KM wireless sync, remote control and telemetering
- IP65 protection rating, dustproof and waterproof for outdoor installation
- Energy efficiency of 95% or more
- Electric shock protection built in

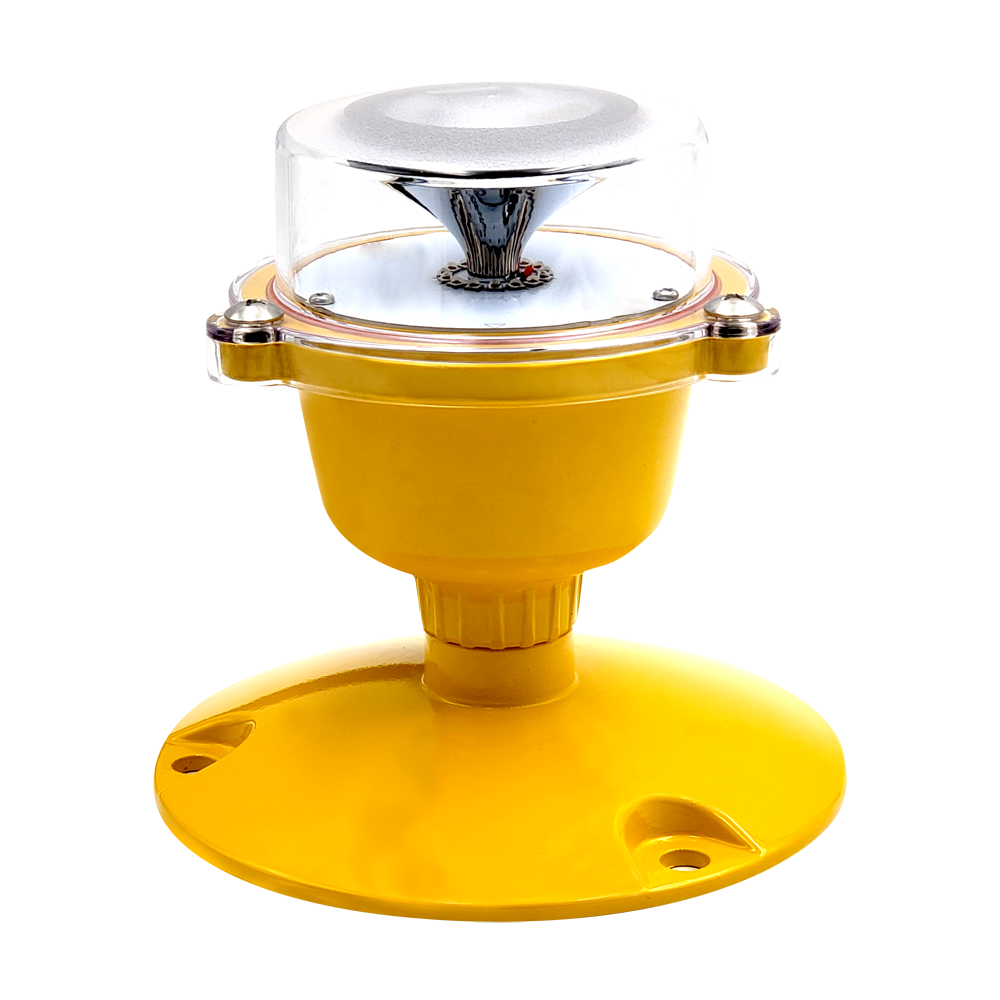

- Optional flange disc mounting accessories for flexible installation
Performed Standards
| Authority |
Standard |
Scope |
| CAAC |
MH/T 6012-2015 and AC-137-CA-2017 |
Aviation obstruction light |
| ICAO |
ICAO Annex 14 Volume I The 8th Edition |
Airport design and operation |
| FAA |
Advisory Circular 150/5345-43J |
Specification for Obstruction Lighting Equipment |
Specifications
| Specification |
Details |
| Model Number |
RBRLB01(L) |
| Item Number |
|
| Type |
Low Intensity Type B |
| Power Supply |
AC 220V / DC 180V / DC 48V |
| Power Frequency |
50Hz to 60Hz / DC |
| Average Power Consumption |
2.6W or less |
| Working Mode |
Steady light |
| Effective Intensity (Night) |
32.5 cd or more |
| Light Source |
LED |
| Light Source Lifespan |
200,000 hours or more |
| Emitted Color |
Red |
| Shell Material |
Aviation aluminum alloy |
| Luminous Mirror Material |
Optical PC |
| Mounting Structure |
Optional flange disc mounting accessories |
| Vertical Divergence |
More than 10 degrees |
| Horizontal Output |
360 degrees |

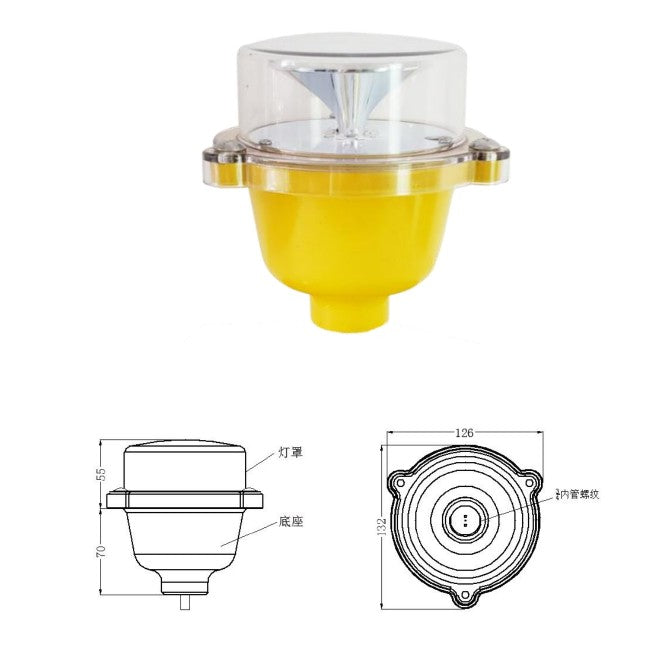

| Overall Size |
132 x 126 x 125 mm |
| Installation Size |
G3/4 cylindrical pipe thread |
| Photocell Ambient Brightness |
50 / 100 Lux |
| Ambient Temperature |
-40 degrees C to +55 degrees C |
| Relative Humidity |
0% to 95% |
| Protection Grade |
IP65 |
| Wind Load |
240 km/h |
| Weight |
1.1 kg (mounting bracket not included) |
| Energy Efficiency |
95% or more |
| Surge Protection Rating |
5KA |
| Seismic Resistance |
10 to 500Hz, 2G, 10 min/cycle, XYZ 60 minutes per axis |
| Mean Time Between Failure |
200,000 hours or more, MIL-HDBK-217F (25 degrees C) |
| EMC Standards |
Emitted EN55022 (CISPR22) Class A, Harmonic EN61000-3-2 and -3 |
| Leakage Current |
Less than 10uA |
| Electric Shock Protection |
Yes |
| Insulation Characteristic |
1.414kVDC, 10s no breakdown between input and shell |
| Operating Altitude |
2500 m or more above sea level |
| Rain Resistance |
Can be exposed to rain in any wind direction |
| Salt Spray |
Can be exposed to salt spray |
| Radiation |
Can be exposed to solar radiation |
Applications
Ideal for aviation safety marking across the UAE and Middle East on airports, communication towers, chimneys, bridges, high mast lamps, super high-rise buildings, blocks, and telecom towers requiring compact, ICAO and FAA-compliant low intensity Type B aviation warning lights.
Usage Notes
- Use only within the specified nominal voltage range to avoid equipment damage.
- Do not open the device while out of operation due to internal high pressure risk.
- After installation, verify waterproofing and confirm all screw spikes are tightened.
- Device maintenance must be performed by qualified professionals only.
