Description

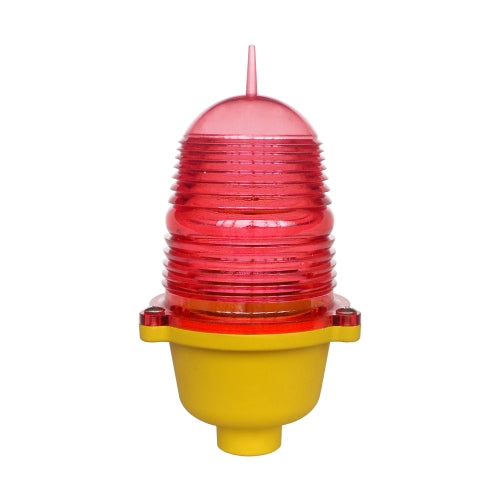

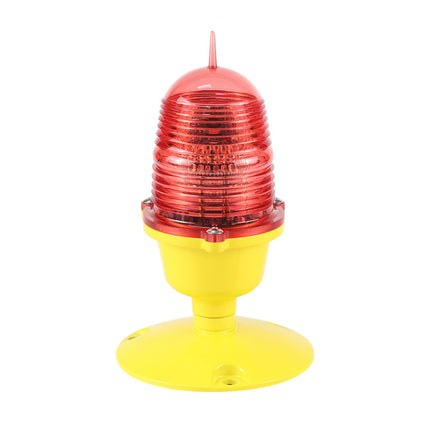

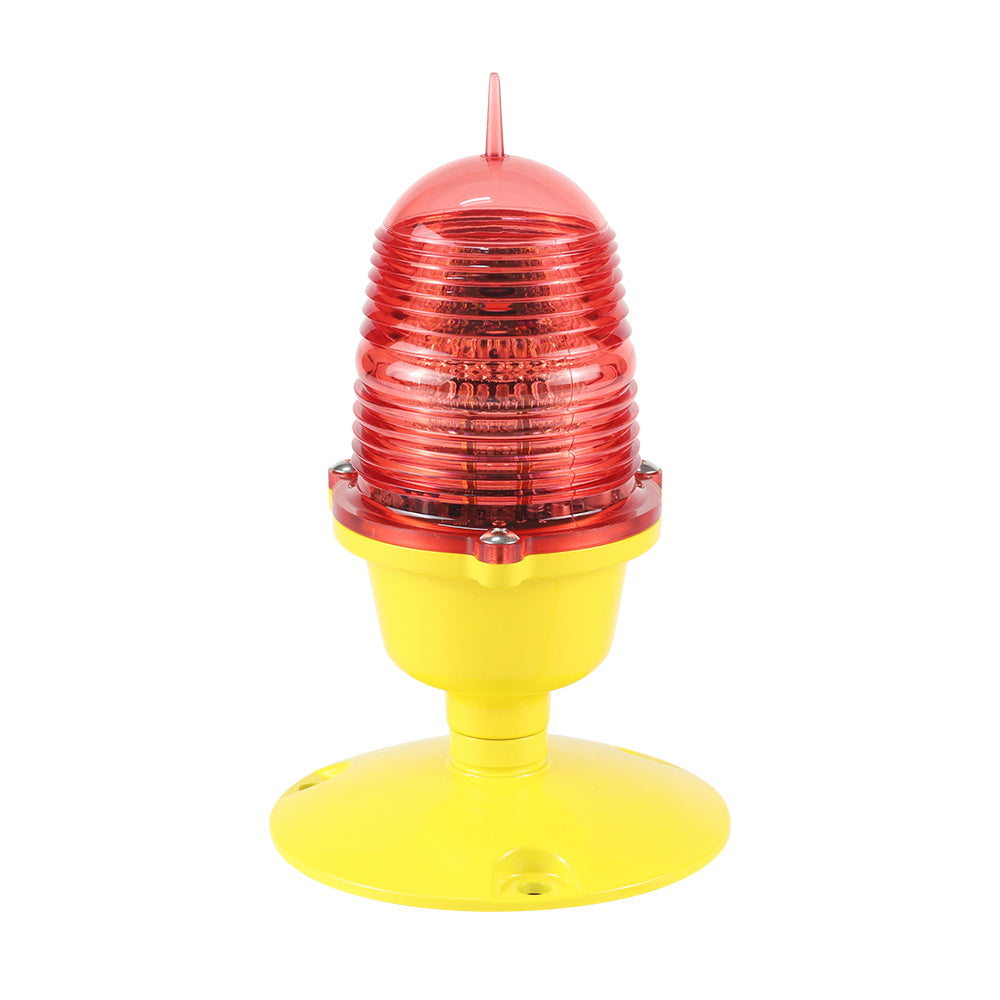

Rubik RBLI/B Low Intensity LED Aviation Obstruction Light, a compact and reliable FAA L-810 classified warning light engineered for towers, chimneys, telecom masts, bridges, and high-rise buildings. Compliant with ICAO Annex 14 and FAA regulations, this steady-burning red LED light delivers consistent 32.5cd illumination with ultra-low power consumption, making it the trusted choice for aviation safety marking across the world, including the UAE, Dubai, and the wider Middle East.
Key Features
- High intensity aviation aluminum casting chassis for maximum durability and corrosion resistance
- PC material lampshade with anti-UV, anti-shock, and corrosion-resistant properties
- International-advanced cold LED chip with low power consumption and 100,000 hour service life
- LED lasts 15 times longer than traditional incandescent light sources
- About 96% less power consumption compared to 116W incandescent light
- Built-in lightning and surge protection device
- Dawn to dusk automatic operation via built-in photocell, lights on at night and off during the day
- One switch to convert between steady burning mode (Optional: flashing mode (20 to 60 times per minute, can be customized on order)
- Bird spike included to prevent bird landing and damage
- 3/4 inch or 1 inch installation size, compact volume ideal for telecom and flag-pole mounting
- IP67 protection rating, fully dustproof and waterproof for outdoor installation
- Two years warranty period
Specifications
| Specification |
Details |
| Model Number |
RBLI/B |
| Item Number |
LI/B and LI/A |
| FAA Classification |
L-810 |
| Type |
RBLI/B (Type B) and RBLI/A (Type A) |
| Operating Voltage |
AC 110V/220V or DC 12V/24V/48V |
| Power Supply Frequency |
50Hz to 60Hz |
| Power Consumption |
3W or less |
| Working Mode |
Steady burning (default) or flashing 20 to 60 times per minute customized on order |
| Light Intensity (Type B) |
32.5 cd or more |
| Light Intensity (Type A) |
10 cd or more |
| Horizontal Output |
360 degrees |
| Vertical Divergence |
10 degrees |
| Light Source |
LED |
| Light Source Service Life |
100,000 hours |
| Light Source Lifespan (rated) |
20 years or more |
| Emitted Color |
Red |
| Overall Size |
136 x 136 x 220 mm |
| Installation Size |
3/4 inch or 1 inch, chassis install |
| Protection Grade |
IP67 |
| Optical Ambient Brightness |
50 / 100 Lux (photocell auto switching) |
| Ambient Temperature |
-40 degrees C to +70 degrees C |
| Weight |
1.2 kg |
| Anti-Wind Ability |
120 m/s |
| Warranty |
2 years |
Applications
Designed for aviation safety marking across the UAE and Middle East on airports, communication towers, chimneys, bridges, high mast lamps, telecom towers, GSM towers, electric towers, high-rise buildings, blocks, and flag poles requiring compact, FAA L-810 compliant low intensity aviation warning lights.
Usage Notes
- Check whether the supply voltage complies with the rated voltage of the device before installation.
- Do not open the device while out of operation due to internal high pressure risk.
- After installation, verify waterproofing is complete and confirm all screw spikes are tightened.
- Non-professional personnel should not repair the equipment to avoid enlarging the fault and personal injury.
