Description

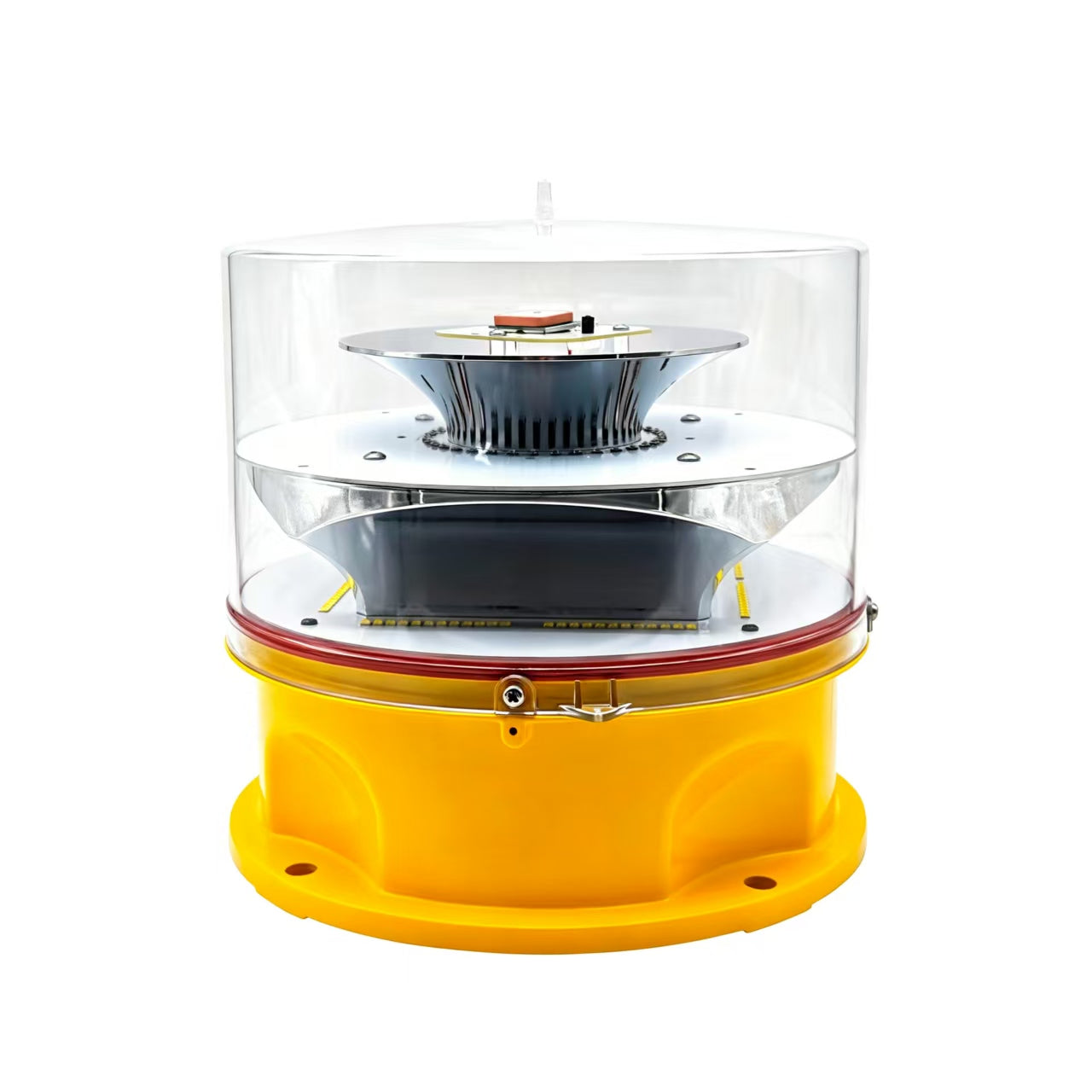

Rubik dual-mode RBMAB029(L) Medium Intensity Type AB Aviation Obstruction Light. Delivering 20,000cd white flashing illumination in daytime and 2,000cd red flashing at night, automatically controlled by photocell, this Type AB unit meets ICAO Annex 14 (8th Edition), CAAC MH/T 6012-2015, AC-137-CA-2017, and FAA Advisory Circular 150/5345-43J meeting FAA L-865 and FAA L-864.
Built for demanding environments across the world including UAE, Dubai, and the wider Middle East, it is the complete single-unit solution for towers, chimneys, bridges, and high-rise structures requiring full day and night aviation safety marking.
Key Features
- Housing adopts high intensity casting aviation aluminum, fully sealed structure for maximum durability
- High efficiency SMT LED chip combined with three layers overlay reflective optical structure for high brightness and long lifespan
- Advanced independent R&D optical lighting system, spotlight angle meets CAAC and ICAO requirements
- Surge protection device rated 5KA for extremely harsh working environments
- Advanced thermal conductive stoving varnish technology for excellent heat dissipation, reduced weight and volume
- Impact resistant, anti-lightning, resistant to sunlight, anti-snow, withstands typhoons, hail and severe weather up to 240 km/h
- Over-current protection function for long-term reliability
- Optional GPS Beidou wireless synchronization, LORA-10KM wireless sync, remote control and telemetering
- IP68 protection rating, fully waterproof and dustproof for permanent outdoor installation
- Automatic day/night switching via built-in photocell at 50/100 Lux
- Electric shock protection built in
- Operates at altitudes of 5500m or more above sea level
Performed Standards
| Authority |
Standard |
Scope |
| CAAC |
MH/T 6012-2015 and AC-137-CA-2017 |
Aviation obstruction light |
| ICAO |
ICAO Annex 14 Volume I The 8th Edition |
Airport design and operation |
| FAA |
Advisory Circular 150/5345-43J |
Specification for Obstruction Lighting Equipment |
Specifications
| Specification |
Details |
| Model Number |
RBMAB029(L) |
| Item Number |
|
| Type |
Medium Intensity Type AB / FAA L-865 and FAA L-864 |
| Power Supply |
AC 220V / DC 180V |
| Power Frequency |
50Hz to 60Hz |
| Average Power Consumption |
10.5W or less |
| Working Mode |
Flash 20 to 60 times per minute |
| Effective Intensity (Daytime) |
20,000 cd white |
| Effective Intensity (Nighttime) |
2,000 cd red |
| Emitted Color |
White at daytime, red at night (auto photocell switching) |
| Light Source |
LED |
| Light Source Lifespan |
200,000 hours or more |
| Shell Material |
Aviation aluminum alloy |
| Luminous Mirror Material |
Optical PC |
| Vertical Divergence |
3 degrees |
| Horizontal Output |
360 degrees |
| Overall Size |
267 x 267 x 295 mm |
| Installation Size |
Phi 245 x 4 x M10 |
| Photocell Ambient Brightness |
50 / 100 Lux |
| Ambient Temperature |
-46 degrees C to +66 degrees C |
| Relative Humidity |
0% to 95% |
| Protection Grade |
IP68 |
| Wind Load |
240 km/h |
| Weight |
4.6 kg (mounting bracket not included) |
| Surge Protection Rating |
5KA |
| Electric Shock Protection |
Yes |
| Leakage Current |
Less than 10uA |
| Insulation Characteristic |
1.414kVDC, 10s no breakdown between input and shell |
| Seismic Resistance |
10 to 500Hz, 2G, 10 min/cycle, XYZ 60 minutes per axis |
| Mean Time Between Failure |
200,000 hours or more, MIL-HDBK-217F (25 degrees C) |
| EMC Standards |
Emitted EN55022 (CISPR22) Class A, Harmonic EN61000-3-2 and -3 |
| Operating Altitude |
5500 m or more above sea level |
| Rain Resistance |
Can be exposed to rain in any wind direction |
| Salt Spray |
Can be exposed to salt spray |
| Radiation |
Can be exposed to solar radiation |
Applications
Designed for aviation safety marking across the UAE and Middle East on airports, communication towers, chimneys, bridges, high mast lamps, super high-rise buildings, blocks, and telecom towers requiring a single-unit ICAO and FAA-compliant medium intensity Type AB aviation warning light covering both daytime and nighttime requirements.
Usage Notes
- Use only within the specified nominal voltage range to avoid equipment damage.
- Do not open the device while out of operation due to internal high pressure risk.
- After installation, verify waterproofing and confirm all screw spikes are tightened.
- Device maintenance must be performed by qualified professionals only.
