Description

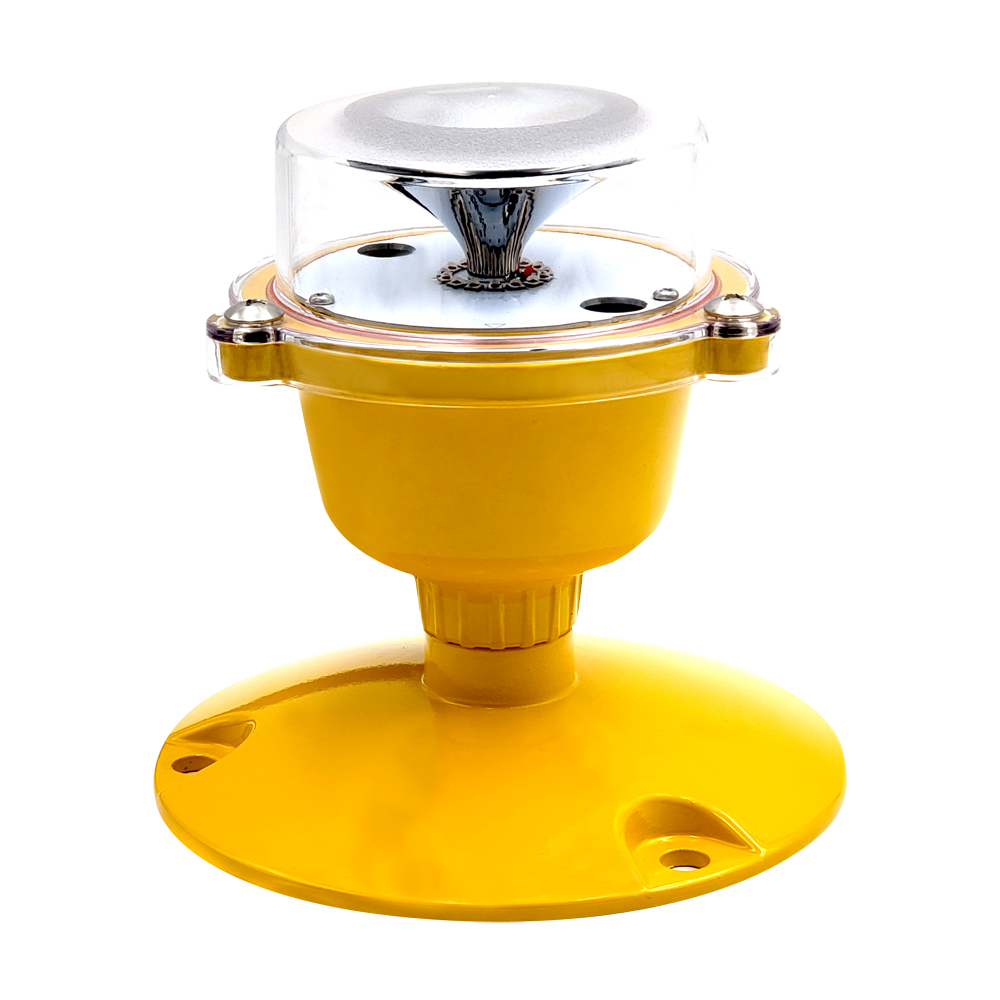

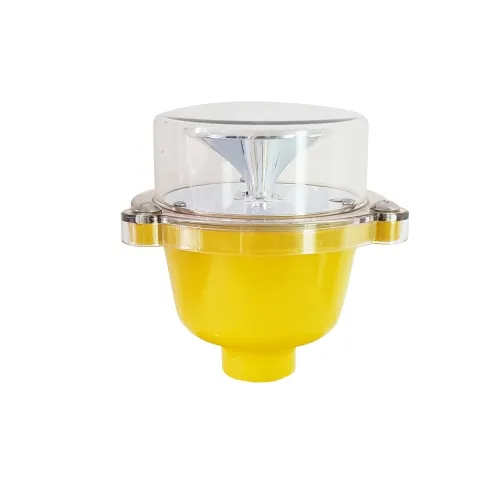

Rubik RBLB01(L) Low-Intensity Type B Aviation Obstruction Light, engineered to meet ICAO Annex 14 and CAAC MH6012-2015 standards. Trusted by aviation authorities Worldwide including UAE, Dubai, and the wider Middle East, this premium LED obstruction light delivers reliable, high-performance steady-state illumination for towers, chimneys, bridges, and high-rise buildings.
Key Features
- High-intensity casting aviation aluminum housing, fully sealed and corrosion-resistant structure
- High-efficiency SMT LED chip with high brightness and ultra-low power consumption of 2.5W or less
- Advanced optical lighting system meeting CAAC and ICAO spotlight angle requirements
- Built-in surge protection device for extreme working environments
- Advanced thermal conductive stoving varnish for excellent heat dissipation, reduced weight and volume
- Impact resistant, anti-lightning, anti-snow, anti-sunlight, withstands typhoons and hail up to 240 km/h
- Over-current protection function for long-term durability
- Optional GPS Beidou wireless sync, LORA-10KM wireless sync, remote control and telemetering
- Photocell auto on/off at 50 or 100 Lux ambient brightness
- 20 years or more LED light source lifespan for minimal maintenance and maximum reliability
Specifications
| Specification |
Details |
| Model Number |
RBLB01(L) |
| Standard |
CAAC MH6012-2015 / ICAO Annex 14 Volume I 6th Edition |
| FAA Classification |
L-810 |
| Power Supply |
AC 220V / DC 180V (Optional)
|
| Power Frequency |
50Hz to 60Hz |
| Power Consumption |
2.5W or less |
| Working Mode |
Steady Light |
| Light Intensity |
More than 32 cd |
| Light Source |
LED |
| Light Source Lifespan |
20 Years or more |
| Emitted Color |
Red |
| Vertical Divergence |
More than 10 degrees |
| Horizontal Output |
360 degrees |
| Overall Dimensions |
132 x 126 x 125 mm |
| Installation Size |
G3/4 Cylindrical Pipe Thread |
| Ambient Temperature |
-40°C to +55°C |
| Weight |
1.1 kg (bracket not included) |
| Photocell Brightness |
50 / 100 Lux |
| Anti-Wind Ability |
240 km/h |
| Protection Grade |
IP65 |
Applications
Ideal for use across on airports, communication towers, chimneys, bridges, high-pole lamps, super high-rise buildings, and construction sites requiring durable, ICAO-compliant aviation warning lights. A trusted security and safety solution for infrastructure projects and regional aviation compliance.
Usage Notes
- Use only within the specified nominal voltage range to avoid equipment damage.
- Do not open the device while in operation due to internal high pressure risk.
- After installation, verify waterproofing and confirm all screw spikes are tightened.
- Device maintenance must be performed by qualified professionals only.
