Description

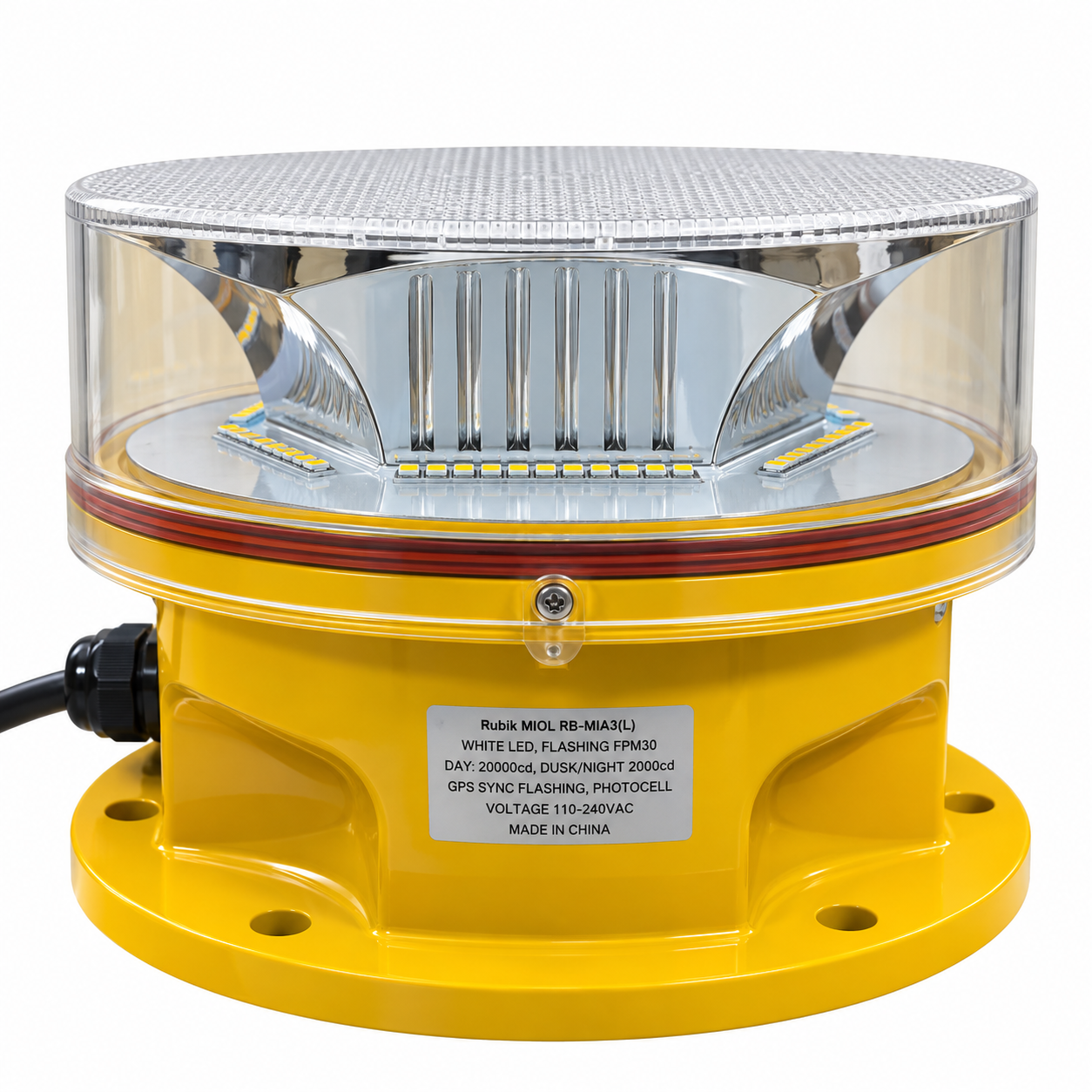

The Rubik MIOL RB-MIA3(L) is a white flashing LED medium intensity aviation obstruction light designed for obstacle marking applications requiring ICAO Medium Intensity Type A / FAA L-865 light characteristics. (ICAO and FAA Compliant).
The light operates at 20,000 cd during daytime and twilight and 2,000 cd at night. It is supplied with a 30 flashes per minute (FPM) configuration, built in photocell for automatic day and night operation, and GPS synchronized flashing for installations using multiple compatible obstruction lights.
Product Specifications
| Brand |
Rubik |
| Model |
RB-MIA3(L) |
| Product Type |
LED Medium Intensity Aviation Obstruction Light |
| ICAO Classification |
Medium Intensity Type A |
| Light Colour |
White |
| Operation |
Flashing |
| Day Intensity |
20,000 cd |
| Twilight Intensity |
20,000 cd |
| Night Intensity |
2,000 cd |
| Flash Rate |
30 FPM |
| Light Source |
High Intensity LED |
| Horizontal Light Output |
360° |
| Vertical Divergence |
3° |
| Photocell |
Built in |
| Day / Night Control |
Automatic photocell controlled operation |
| Synchronization |
Built in GPS synchronized flashing |
| Operating Voltage |
110 to 240 VAC |
| Instantaneous Power |
600 W |
| Average Power |
≤19 W at 30 FPM, manufacturer reference specification |
| Circuit Protection |
Integrated |
| Surge Protection L to N |
IEC 61000-4-5, ±3 kV |
| Surge Protection L to PE |
IEC 61000-4-5, ±6 kV |
| Surge Protection N to PE |
IEC 61000-4-5, ±6 kV |
| Electrostatic Protection |
IEC 61000-4-2, 8 kV contact discharge |
| Optical Body Material |
UV protected polycarbonate |
| Base Material |
Powder coated die cast aluminium |
| Housing Colour |
Yellow |
| Overall Dimensions |
229 × 229 × 168 mm |
| Mounting |
190 × 190 mm, Ø12 mm mounting holes |
| Weight |
Approximately 3.5 kg |
| Operating Temperature |
-40°C to +55°C |
| Storage Temperature |
-55°C to +70°C |
| Humidity |
10% to 95% RH, non condensing |
| Wind Speed Rating |
240 km/h |
| Ingress Protection |
IP66 |
| LED Life Reference |
>100,000 hours |
| Product Life Expectancy |
10+ years, manufacturer stated specification |
| Country of Manufacture |
China |
Light Intensity and Operating Modes
| Operating Condition |
Colour |
Intensity |
Operation |
| Day |
White |
20,000 cd |
Flashing |
| Twilight |
White |
20,000 cd |
Flashing |
| Night |
White |
2,000 cd |
Flashing |
| Flash Rate |
White |
30 FPM |
GPS synchronized |
Standards and References
| ICAO |
ICAO Annex 14, Volume I, Medium Intensity Type A |
| FAA Reference |
FAA L-865 |
| Ingress Protection |
IP66 |
| Surge Protection Standard |
IEC 61000-4-5 |
| Electrostatic Discharge Standard |
IEC 61000-4-2 |
The obstruction light uses a high intensity LED optical system inside a UV protected polycarbonate enclosure. The optical system provides 360° horizontal output with a specified 3° vertical divergence.
The base is manufactured from powder coated die cast aluminium. The enclosure is rated IP66 and is specified for outdoor operation from -40°C to +55°C, relative humidity from 10% to 95% RH without condensation, and wind speeds up to 240 km/h.
The RB-MIA3(L) includes GPS synchronization for coordinated flashing between multiple compatible obstruction lights. This allows separate installed units to maintain synchronized flash timing without a direct synchronization cable between each light.
Automatic Day and Night Operation
The built in photocell automatically controls the operating intensity according to ambient light conditions.
| Day |
20,000 cd |
| Twilight |
20,000 cd |
| Night |
2,000 cd |
Typical Applications
The Rubik RB-MIA3(L) is intended for fixed obstacle marking applications where a white flashing medium intensity obstruction light is specified by the applicable aviation authority or approved obstruction lighting design.
- High rise buildings
- High chimneys
- Telecommunication towers
- GSM towers
- Microwave towers
- TV towers
- High poles and masts
- Tower cranes
- Wind turbines
- Industrial structures
- Other elevated fixed obstacles
The required number of obstruction lights, mounting height, spacing, intermediate lighting levels and complete obstruction lighting arrangement should be determined according to the applicable aviation authority requirements and the approved obstacle lighting design for the structure.
Note: Mounting brackets, mounting structures and project specific accessories are not included unless specifically stated in the quotation or order.
