Description

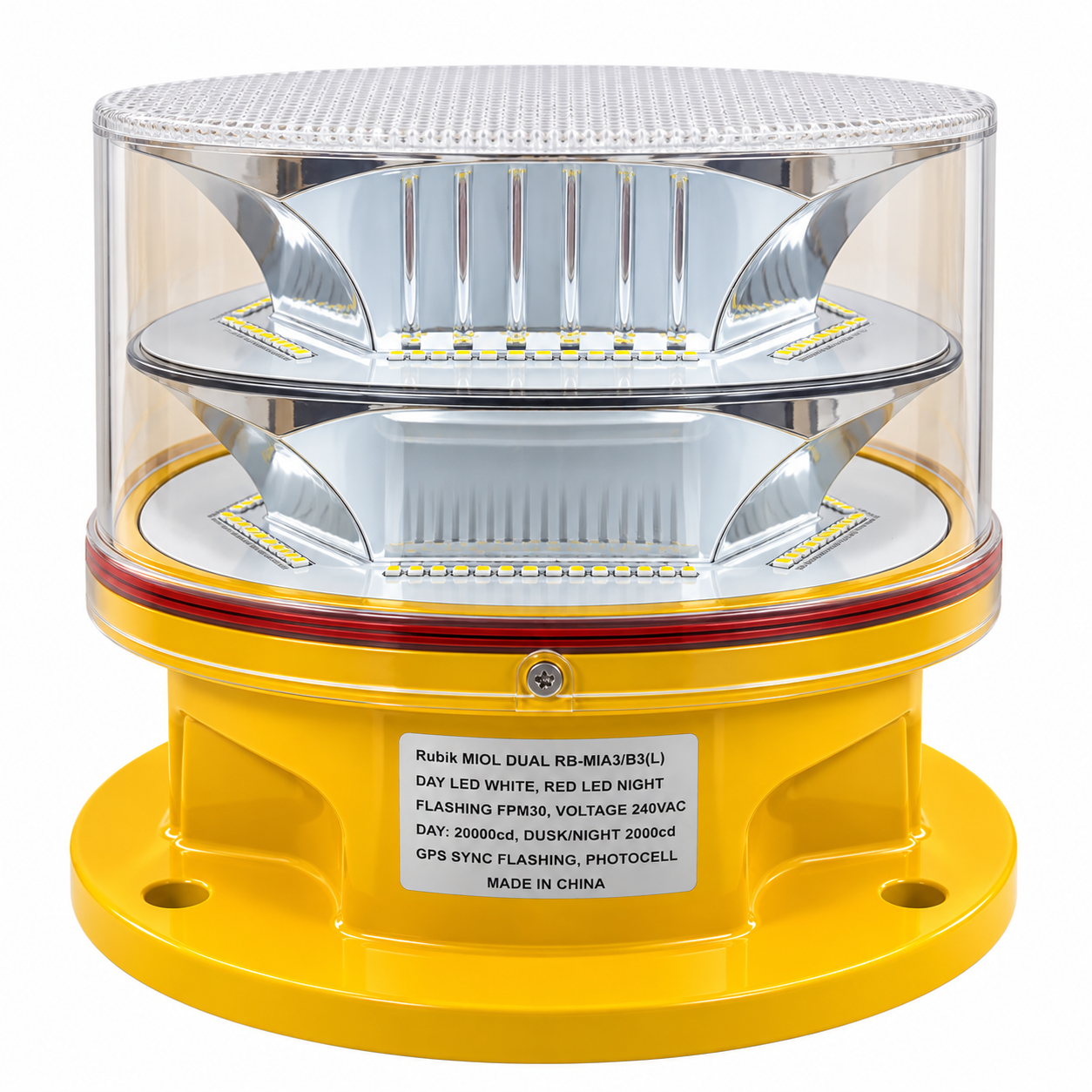

The Rubik RB-MIA3/B3(L) is a dual color LED medium intensity aviation obstruction light combining a medium intensity white flashing light for daytime and twilight operation with a red flashing light for night operation. ICAO and FAA compliant. The white daytime mode provides a nominal intensity of 20,000 cd, while the red nighttime mode provides a nominal intensity of 2,000 cd. The optical system provides 360° horizontal coverage with a specified 3° vertical divergence.
The unit is designed for aviation obstacle marking applications requiring automatic transition between daytime white obstruction lighting and nighttime red obstruction lighting. A built in photocell controls the operating mode according to ambient light conditions.
Product Specifications
| Brand |
Rubik |
| Model |
RB-MIA3/B3(L) |
| Product Type |
LED Medium Intensity Dual Color Aviation Obstruction Light |
| Light Configuration |
White Day / Twilight and Red Night |
| ICAO White Light Classification |
Medium Intensity Type A |
| ICAO Red Light Classification |
Medium Intensity Type B / C |
| FAA White Light Reference |
L-865 |
| FAA Red Light Reference |
L-864 |
| Day Light Colour |
White |
| Twilight Light Colour |
White |
| Night Light Colour |
Red |
| Day Intensity |
≥20,000 cd White |
| Night Intensity |
≥2,000 cd Red |
| Light Source |
Medium Intensity LED |
| Horizontal Light Output |
360° |
| Vertical Divergence |
3° |
| Flash Rate |
30 flashes per minute |
| Standard Factory Flash Rate |
30 FPM |
| Day / Night Switching |
Automatic |
| Photocell |
Built in |
| GPS Synchronization |
Available |
| Operating Voltage |
110 to 240 VAC |
| Instantaneous Power, Red Mode |
40 W |
| Instantaneous Power, White Mode |
600 W |
| Average Power, Red Mode |
7.5 W at 30 FPM |
| Average Power, White Mode |
19 W at 30 FPM |
| Circuit Protection |
Integrated |
| Body Material |
UV protected polycarbonate |
| Base Material |
Powder coated die cast aluminium |
| Mounting |
190 × 190 mm, Ø12 mm mounting holes |
| Overall Dimensions |
236 × 236 × 215 mm |
| Weight |
Approximately 4 kg |
| Humidity |
0% to 100% |
| Wind Speed Rating |
80 m/s |
| Ingress Protection |
IP66 |
| LED Life Reference |
>100,000 hours |
| Product Life Expectancy |
10+ years, manufacturer stated specification |
Day, Twilight and Night Operation
| Operating Mode |
Colour |
Intensity |
Operation |
| Day |
White |
≥20,000 cd |
Flashing |
| Twilight |
White |
Medium intensity white operating mode |
Flashing |
| Night |
Red |
≥2,000 cd |
Flashing |
ICAO and FAA References
| ICAO Standard Reference |
ICAO Annex 14 Volume I, Aerodrome Design and Operations |
| ICAO White Day Mode |
Medium Intensity Type A White Obstruction Light |
| ICAO Red Night Mode |
Medium Intensity Type B Red Obstruction Light |
| FAA White Light Reference |
FAA L-865 |
| FAA Red Light Reference |
FAA L-864 |
| Ingress Protection |
IP66 |
Dual Color Operation
The RB-MIA3/B3(L) combines white and red LED obstruction lighting in a single housing. The built in photocell automatically changes the operating mode according to ambient lighting conditions.
During daylight and twilight conditions, the unit operates using the white LED obstruction light. At night, the unit changes to the red LED obstruction light.
This arrangement allows one obstruction light assembly to provide both daytime white and nighttime red aviation obstacle marking.
Optical Characteristics
The optical system provides 360° horizontal light distribution with a specified vertical divergence of 3°.
The daytime white LED section is rated at 20,000 cd or greater, while the nighttime red LED section is rated at 2,000 cd or greater.
Automatic Photocell Control
A built in photocell detects ambient light conditions and automatically switches between the white daytime operating mode and red nighttime operating mode.
This eliminates the need for manual switching between daytime and nighttime obstruction lighting modes during normal operation.
GPS synchronized flashing is available for installations requiring multiple compatible obstruction lights to flash at coordinated intervals.
GPS synchronization allows individual units to maintain coordinated flash timing without requiring a synchronization cable between each obstruction light.
The optical housing is manufactured from UV protected polycarbonate. The base is manufactured from powder coated die cast aluminium for outdoor installation.
The enclosure provides IP66 ingress protection and is specified for wind speeds up to 80 m/s.
Electrical Characteristics
| Input Voltage |
110 to 240 VAC |
| Red Mode Instantaneous Power |
40 W |
| White Mode Instantaneous Power |
600 W |
| Red Mode Average Power |
7.5 W at 30 FPM |
| White Mode Average Power |
19.5 W at 30 FPM |
| Circuit Protection |
Integrated |
Physical Dimensions
| Overall Diameter / Width |
236 mm |
| Overall Height |
215 mm |
| Overall Dimensions |
236 × 236 × 215 mm |
| Mounting Pattern |
190 × 190 mm |
| Mounting Hole Diameter |
Ø12 mm |
| Weight |
Approximately 4 kg |
Typical Applications
The Rubik RB-MIA3/B3(L) is intended for marking elevated structures where a dual color medium intensity aviation obstruction lighting system is specified by the applicable aviation authority, consultant or approved obstacle lighting design.
- High rise buildings
- High chimneys
- Telecommunication towers
- GSM towers
- Microwave towers
- Television towers
- High poles and masts
- Tower cranes
- Wind turbines
- Industrial structures
- Other elevated fixed obstacles
The manufacturer's reference application covers obstacle heights approximately 45 to 150 metres. The required light quantity, mounting levels, spacing and complete obstruction lighting arrangement must be determined according to the applicable aviation authority requirements and the approved obstacle lighting design.
Available Functions and Options
| Built In Photocell |
Available |
| GPS Synchronized Flashing |
Available |
| Dry Contact Alarm Output |
Optional - Customized |
| RS485 Communication |
Optional - Customized |
| NVG Compatible Infrared LED |
Optional - Customized |
| Bird Deterrent Spike |
Optional - Customized |
Important Installation Information
The mounting bracket is not included unless specifically stated in the quotation or order. Mounting brackets can be selected or fabricated according to the installation structure.
Final obstacle lighting configuration, mounting height, quantity, spacing and approval remain subject to the requirements of the applicable civil aviation authority, airport authority, consultant and approved project specification.
