Description
Convertible hand truck that transforms between a 2-wheel upright dolly cart /trolley and a 4-wheel platform cart. Model RB-FW90TP features aluminum and steel construction with foldable design for compact storage. Available in black and blue color scheme.
Specifications Summary
- Material: Aluminum, High Carbon Steel, Polypropylene, Rubber, TPR
- Color: Black/Blue
- Net Weight: 7kg (7.1kg)
- 2-wheel capacity: 68-70kg
- 4-wheel capacity: 136-137kg
- Platform size (4-wheel): L45 x W78 x H68/80/92cm
- Hand truck size (2-wheel): L45 x W42 x H100cm
- Folded size: L45 x W41 x H110cm
- Base plate: 45cm x 16cm
- Handle heights: 68cm, 80cm, 92cm
- Wheel diameter: 3.5 inches (9cm)
- Wheels: Fully foldable
- Assembly: Pre-assembled

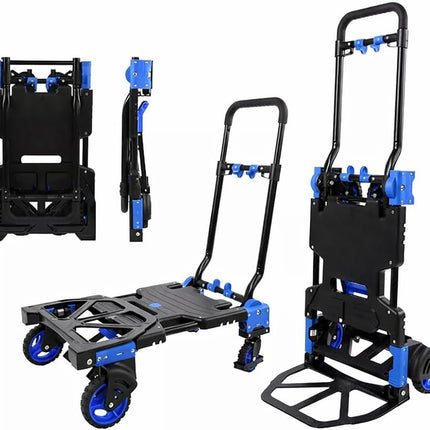

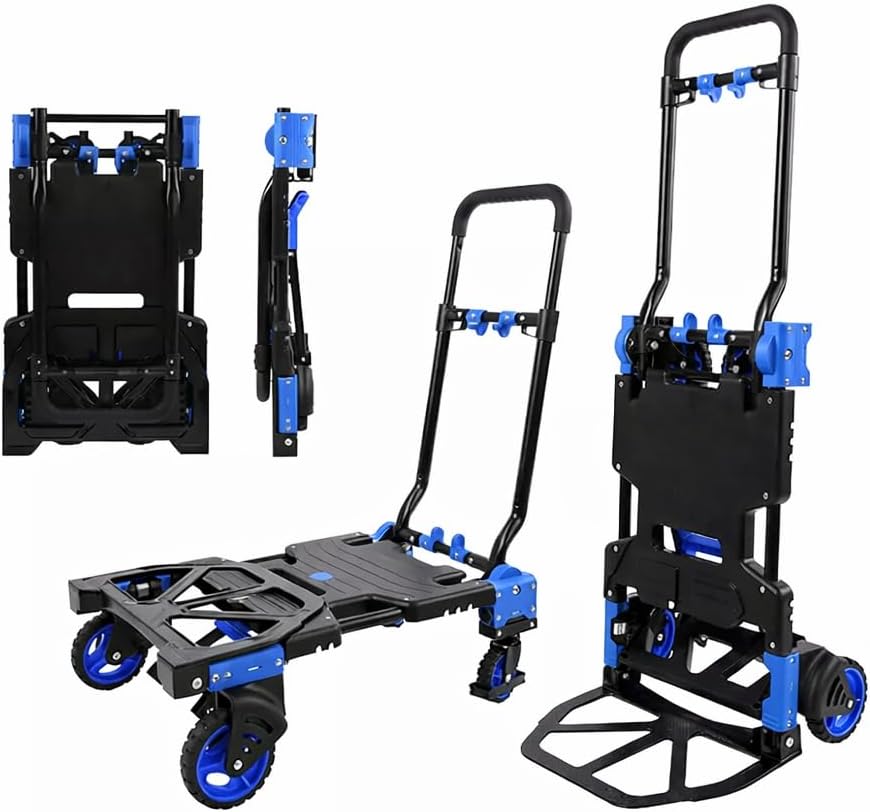

2-in-1 Convertible Design
The RB-FW90TP can be configured as either a 2-wheel hand truck or a 4-wheel platform cart. To switch between modes, press the levers to unlock the handle and adjust the base plate position. Push the handle slightly forward and backward while pressing levers to unlock, then lift the handle up for 2-wheel cart usage. The conversion process takes seconds and requires no tools.

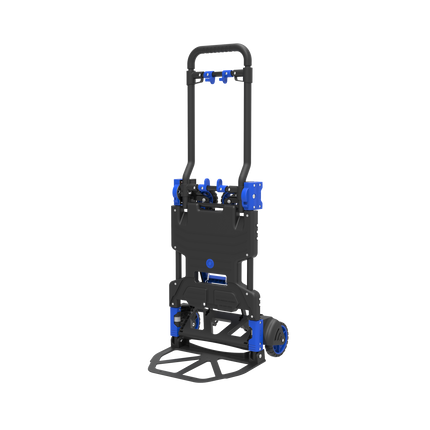

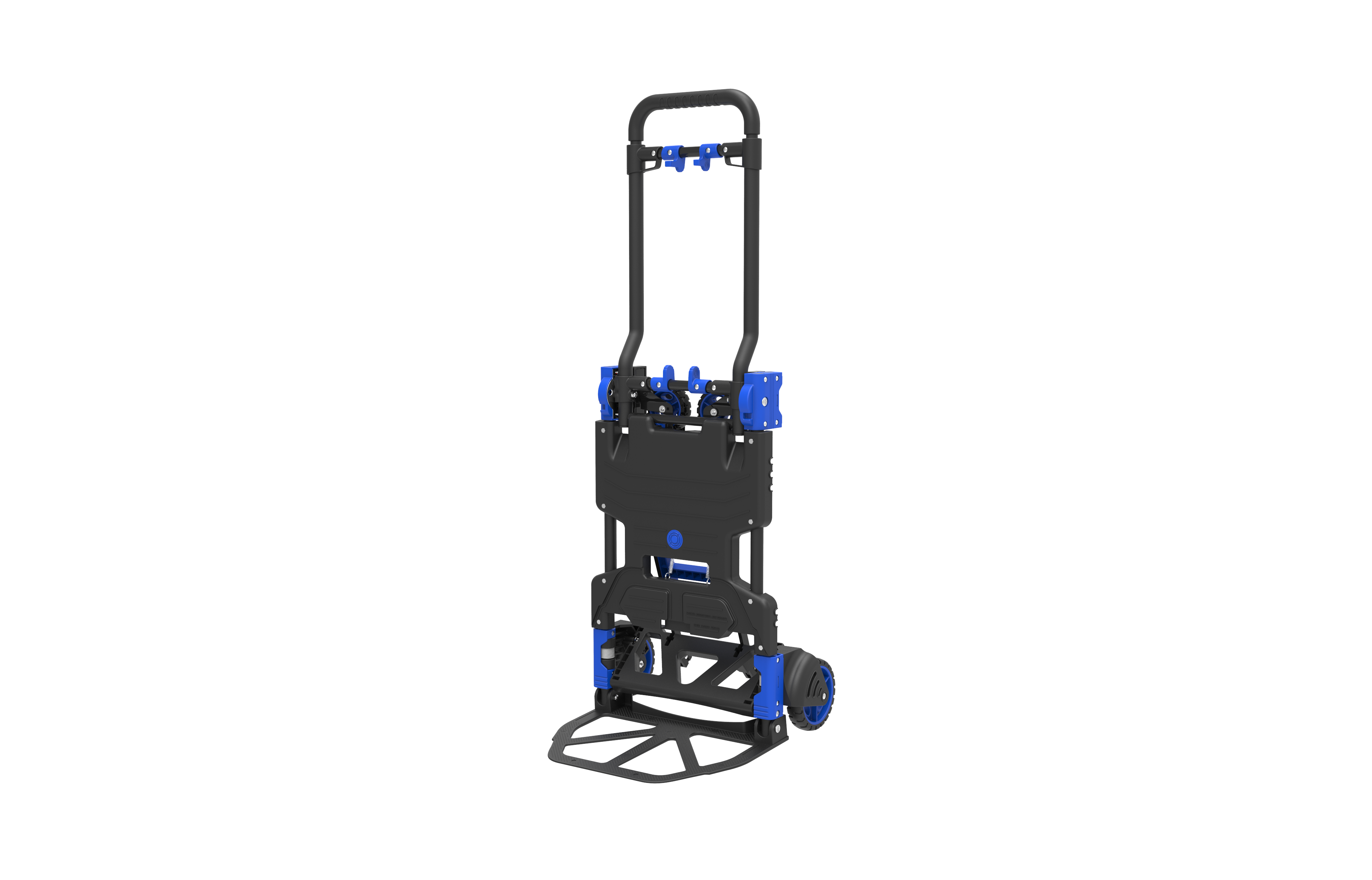

Two-Wheel Hand Truck Mode
In the 2-wheel configuration, the unit can be tilted back so the weight of the load is supported by the wheels. This mode is designed for maneuvering through narrow spaces, doorways, and up or down stairs. The 2-wheel mode supports loads up to 68kg (70kg in some specifications). The upright position provides better control when navigating tight areas or uneven surfaces.

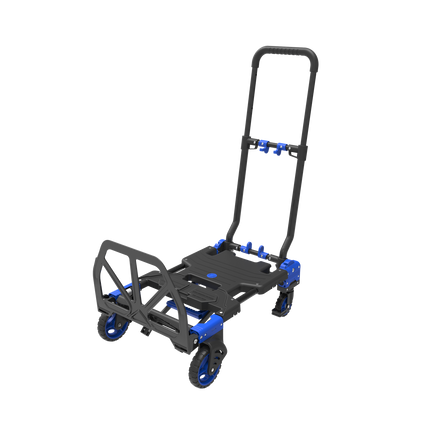

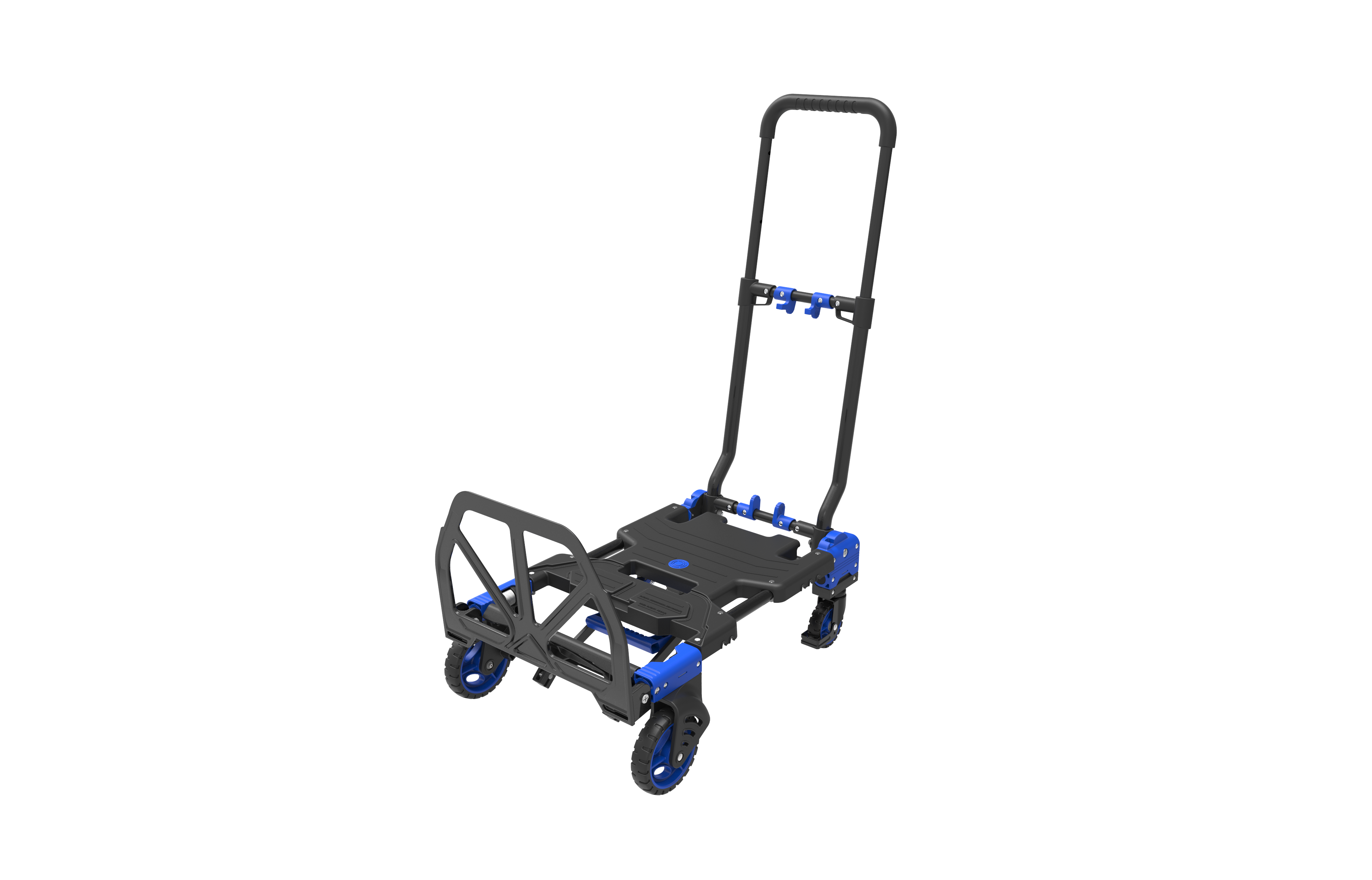

Four-Wheel Platform Cart Mode
By flipping down the additional two wheels, the hand truck converts to a stable 4-wheel platform cart. This configuration provides increased stability and support for larger or bulkier loads. The 4-wheel mode supports loads up to 137kg. This mode is suitable for transporting large boxes, furniture, appliances, or multiple items simultaneously over longer distances on flat surfaces.
Load Capacity
The unit has dual load capacity ratings depending on configuration. As a 2-wheel hand truck, it supports up to 68-70kg. As a 4-wheel platform cart, it supports up to 136-137kg. The increased capacity in 4-wheel mode is due to the distributed weight across four contact points and the stable platform base.
Construction and Materials
The frame is constructed from aluminum and high carbon steel for strength while maintaining light weight. Stress points are reinforced with nylon components. Additional parts are made from polypropylene and rubber materials. The TPR (thermoplastic rubber) grip handle provides comfortable handling. The entire unit weighs 7kg (7.1kg), making it portable and easy to maneuver when empty.
Adjustable Handle
The handle features multiple height positions at 68cm, 80cm, and 92cm. Height adjustment is controlled by press levers located on the handle assembly. Users can select the height that provides the most comfortable operating position based on their height and the task requirements. The TPR grip provides a non-slip surface for secure handling.
Dimensions
As a platform hand truck (4-wheel mode): 45cm length x 78cm width x 68/80/92cm height (depending on handle position). As a hand truck (2-wheel mode): 45cm length x 42cm width x 100cm height. The base plate measures 45cm x 16cm. The overall size when folded is 45cm x 41cm x 110cm.
Wheels and Mobility
The unit is equipped with wheels that can be completely folded for storage. Wheel specifications from the uploaded image show 3.5-inch/9cm diameter wheels. The wheels are made from materials suitable for indoor and outdoor use on various surfaces.

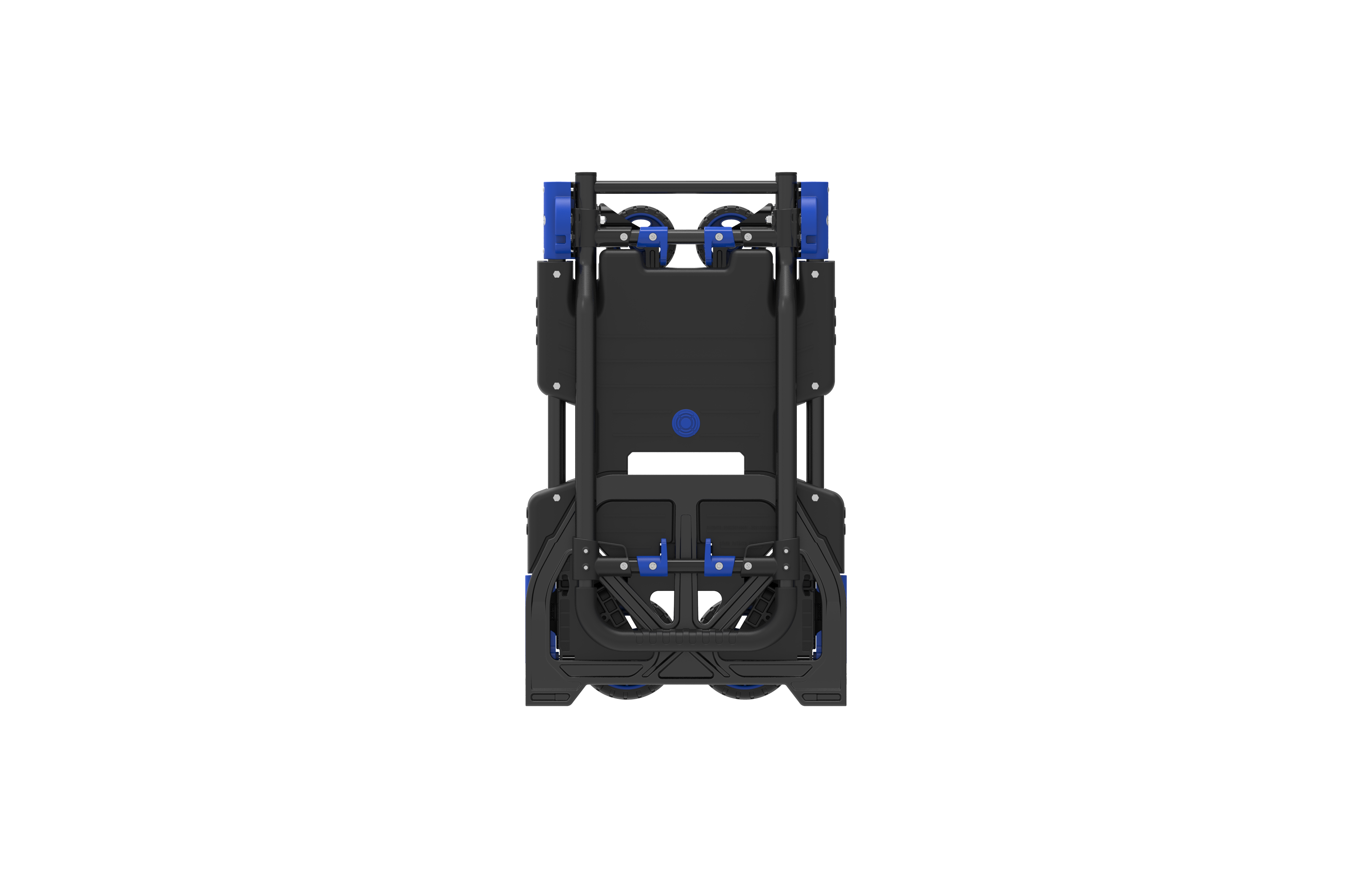

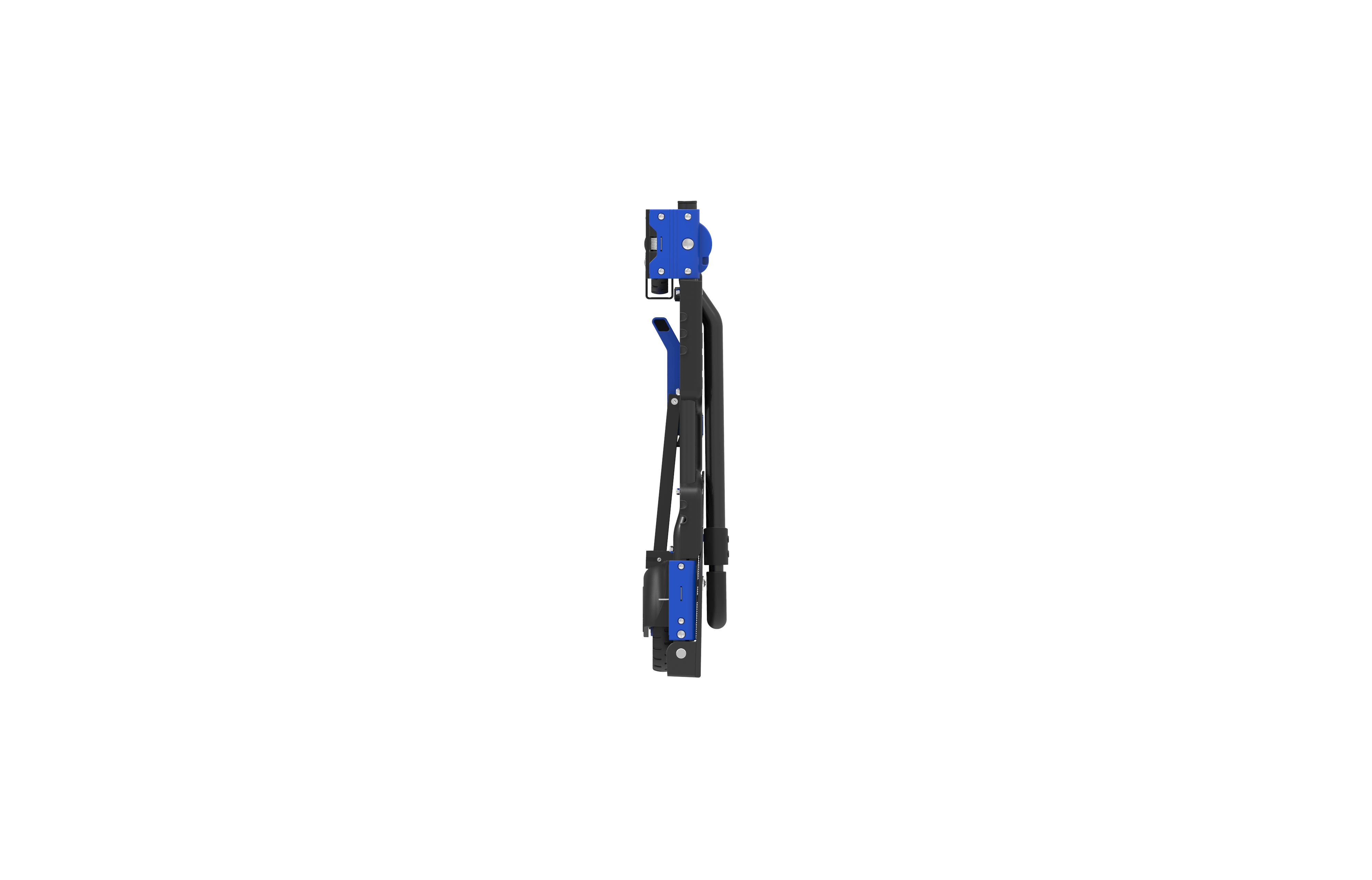

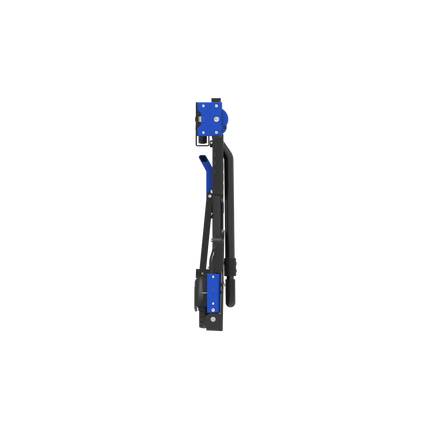

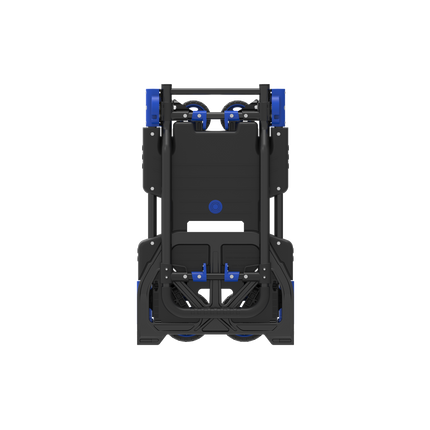

Foldable Storage Design
The hand truck folds flat in seconds for space-saving storage. The wheels fold completely against the frame, and the handle collapses down. When folded, the unit can be stored in closets, vehicle trunks, or against walls. The compact folded dimensions minimize storage space requirements.
Assembly
The unit arrives fully assembled and ready to use straight out of the box. No assembly or setup is required.
Applications
Suitable for warehouses, offices, homes, delivery services, retail stores, hotels, and any environment requiring material transport. Can be used for moving boxes, equipment, furniture, appliances, inventory, supplies, and general cargo.
