Description
Product Description

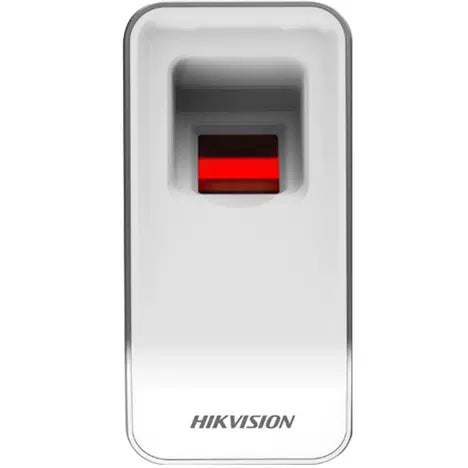

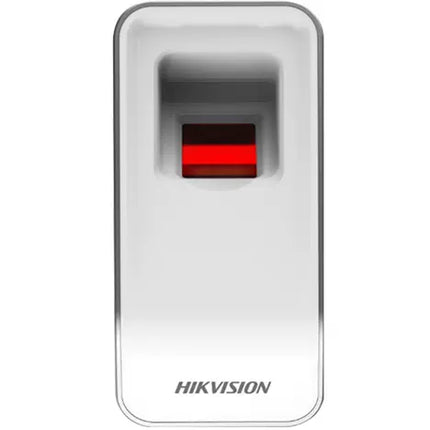

The Hikvision DS-K1F181-F is a compact and efficient fingerprint enrollment device designed for use in access control systems, time attendance solutions, and identity registration applications. It uses an optical fingerprint module to capture accurate and high-quality fingerprint images quickly. The device connects via USB 2.0 and supports plug-and-play functionality for easy installation. It is intended for indoor desktop use in locations such as hotels, office buildings, residential properties, and registration counters.
DS-K1F181-F Fingerprint Enrollment Device Specifications
| Model |
DS-K1F181-F |
| Processor |
32-bit MCU |
| Fingerprint Module |
Optical, red backlight |
| Supported Operating System |
Windows |
| Image Resolution |
500 ppi |
| Fingerprint Image Size |
256 × 288 pixels |
| Communication Interface |
USB 2.0 |
| Working Voltage |
DC 5V, 200 mA |
| Operating Temperature |
-30 °C to 70 °C |
| Operating Humidity |
20% – 80% |
| Dimensions |
100 × 48 × 35 mm |
