Description

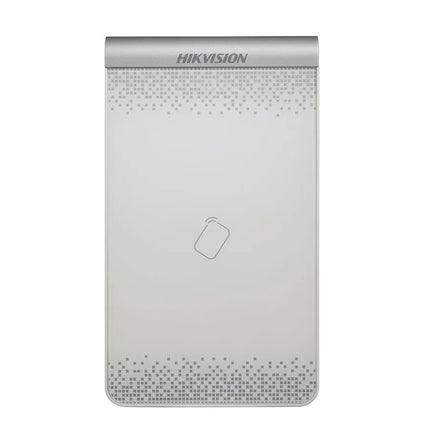

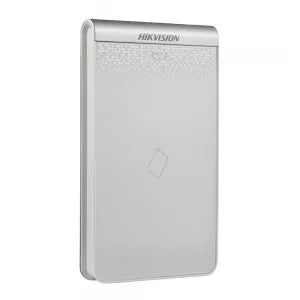

The DS-K1F180A-D8E is a dual-frequency smart card reader designed for high compatibility, security, and ease of use. It supports both 13.56 MHz and 125 kHz frequencies, allowing it to read Mifare cards, ID (EM) cards, and CPU card serial numbers, making it suitable for a wide range of access control and identification applications.
The device communicates with a PC through a USB 2.0 interface and features driver-free, plug-and-play functionality, ensuring fast installation and stable operation. Its data transmission is protected by advanced encryption algorithms, providing a secure environment for card issuance and communication.
For software development, the DS-K1F180A-D8E comes with a comprehensive SDK and API (Download from Hikvision, not provided by the seller)RFID, supporting multiple operating systems and development platforms, making integration flexible and efficient. In addition, the device supports online firmware upgrades, enabling easy maintenance and functionality updates over time.
Compact in design, reliable in performance, and equipped with high-standard encryption and compatibility features, this model is ideal for secure ID verification, attendance systems, and card issuance environments.
| • Complies with ISO 14443 A/B and ISO 7816 standards. Supports card reading frequencies of 13.56 MHz and 125 KHz, and can read Mifare cards, ID (EM) cards, and CPU card serial numbers. |
| • Communicates with PC via USB 2.0 interface, supports driver-free technology, plug and play. |
| • Uses advanced encryption algorithms for card issuing, ensuring secure and reliable data transmission. |
| • Provides complete development kit and API functions, compatible with various operating systems and development platforms. |
| • Supports firmware upgrades, allowing online device updates. |
Specifications
| Performance Parameters |
| Card Reading Frequency |
13.56 MHz, 125 KHz |
| Communication Interface |
USB 2.0 |
| Working Voltage |
DC 5V, 200 mA |
| Dimensions |
117 mm × 67.5 mm × 14.3 mm |
| Card Types Supported |
Mifare Card, CPU Card, ID Card |
| PSAM Slots |
2 or more |
| Status Indicator |
LED Indicator |
| Fingerprint Collection |
None |
| Fingerprint Collection Area |
None |
| Supported Operating Systems |
Windows XP, Windows 7, Windows 8 |
| Protocols |
ISO 14443 A/B Standard, ISO 7816 Standard |
| Environmental Parameters |
| Operating Temperature |
-20 °C ~ 65 °C |
| Relative Humidity |
20% to 80% |
| Order Model |
| Model Number |
DS-K1F180A-D8E |
