Description

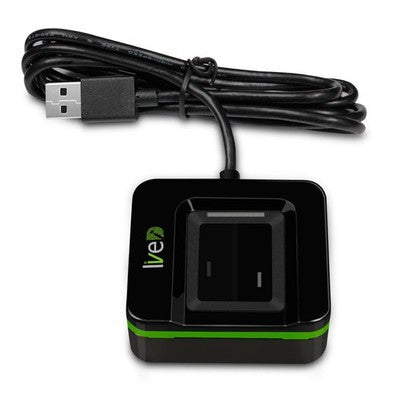

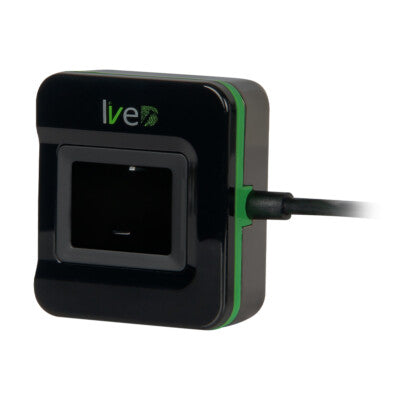

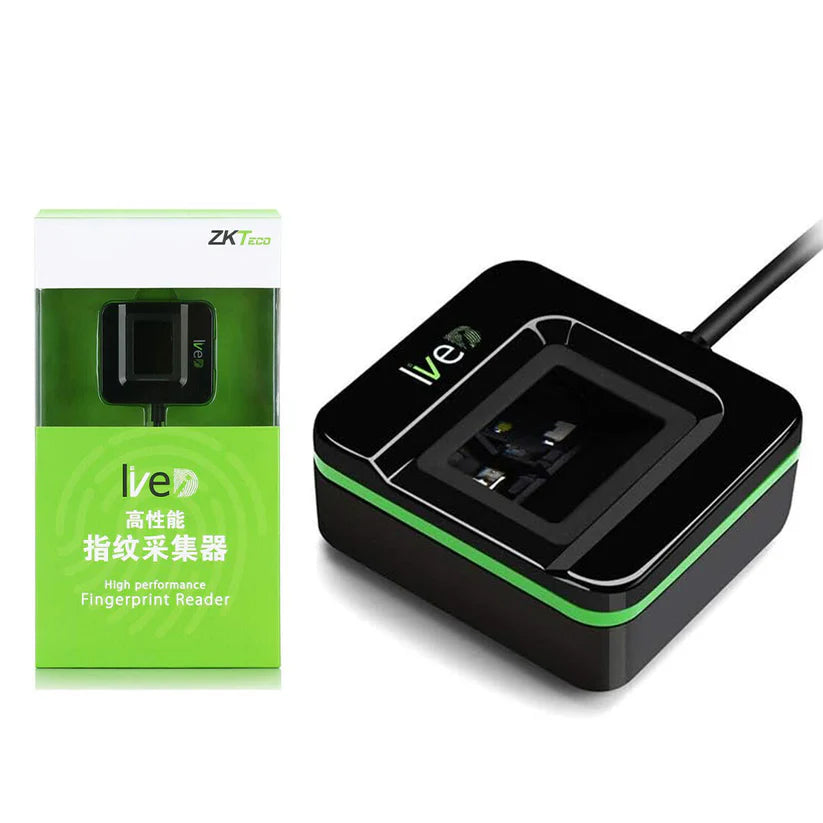

Live20R, a latest optical fingerprint scanner, is developed by ZKTeco. It supports fingerprint detection and captures fingerprint image fast, with high resolution. The product is tiny in size and easy to perform fingerprint registration on the desktop. Low power consumption, it can be applies to Android tablet and mobile phone. We provide SDKs for customers to develop their own applications.
(ZKTeco Entropy Live20R fingerprint reader collector browser web page docking BS framework WEB/JS call)
Features
- Support fingerprint detection function
- Quick scanning of fingerprint on dry, wet or rough fingertips
- SDK for development from ZKTeco
- High Speed USB 2.0
- Work reliably under extreme lighting condition such as direct sunlight or dim light
ZKTeco LIVE 20R Specifications
| Product Model |
LIVE 20R |
| Sensor Type |
Optical fingerprint |
| Effective Sensing Window |
15.2 × 20.3 mm |
| Image Size |
300 × 400 pixels |
| Image Resolution |
500 DPI |
| Distortion Rate |
<1% |
| Gray Scale |
8 bit |
| Data Encryption |
AES-256 |
| Template Size |
<2048 bytes |
| Interface Type |
Standard USB port |
| Operating System |
Windows / Linux / Android |
| Domestic Operating Systems |
Supported (Galaxy Kirin, Zhongbiao Kirin, Tongxin OS — including Phytium, Loongson, Feiteng, Haiguang, Zhaoxin platforms) |
| Working Voltage |
5V |
| Working Temperature |
-10 ~ 55 °C |
| Working Humidity |
0% ~ 93% (non-condensing) |
| Communication Method |
USB 1.1 / 2.0 |
| Supported Algorithm |
ZKFINGER V10.0 |
| Product Dimensions (L × W × H) |
49.5 × 43 × 20 mm |
| Net Weight |
<120 g |
