Description
King Buckle-Free Packaging Pliers KG-15-C
The King KG-15-C Buckle-Free Packaging Pliers is a world-first innovation in PP plastic strapping and bundling. It permanently replaces traditional metal buckle strapping - eliminating the risk of metal clips cutting goods or injuring hands, while delivering a cleaner, stronger, and more professional finish every time.
Powered by a safe 12V low-voltage transformer (220V/12V) and supplied with a UK standard plug, this tool is ready to use straight out of the box in the UK and compatible markets. It can also run directly from a 12V car or motorcycle battery - ideal for warehouse, retail, and field use.

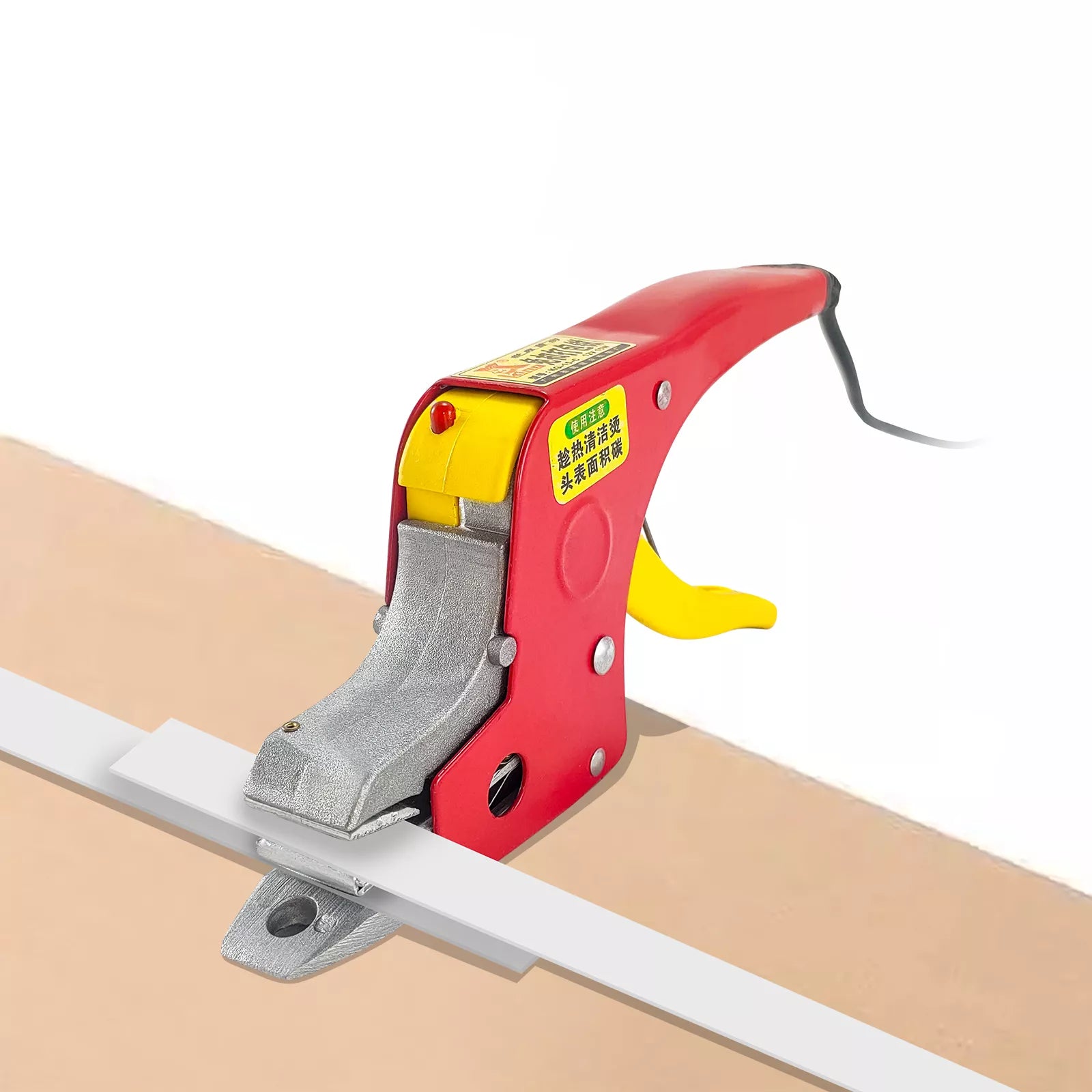

How It Works
- Plug in and wait 30-60 seconds for the heating iron to reach working temperature (indicator light turns on).
- Insert the heating iron between two overlapping PP straps.
- Grip the plier handle firmly - the jaws clamp the two straps together and fuse them in approximately 1 second.
- Apply firm pressure to the handle; the iron retracts quickly and the jaws press the joint for approximately 2 seconds.
- Release the handle - the iron automatically extends back to its ready position.
Tip: Before first use, practice a few test fusions to find the optimal fusion time for your strap thickness.
Key Benefits
-
No metal buckles needed - safer for goods and operators
-
Eco-friendly and low-carbon - used PP straps can be recycled
-
Fast and efficient - 1-second fusion, 2-second press, ready for the next strap
-
Smooth, flat joints - professional appearance with firm hold
-
Continuous operation - built for long working sessions without overheating
-
Dual power - 220V mains (UK plug included) or 12V battery
-

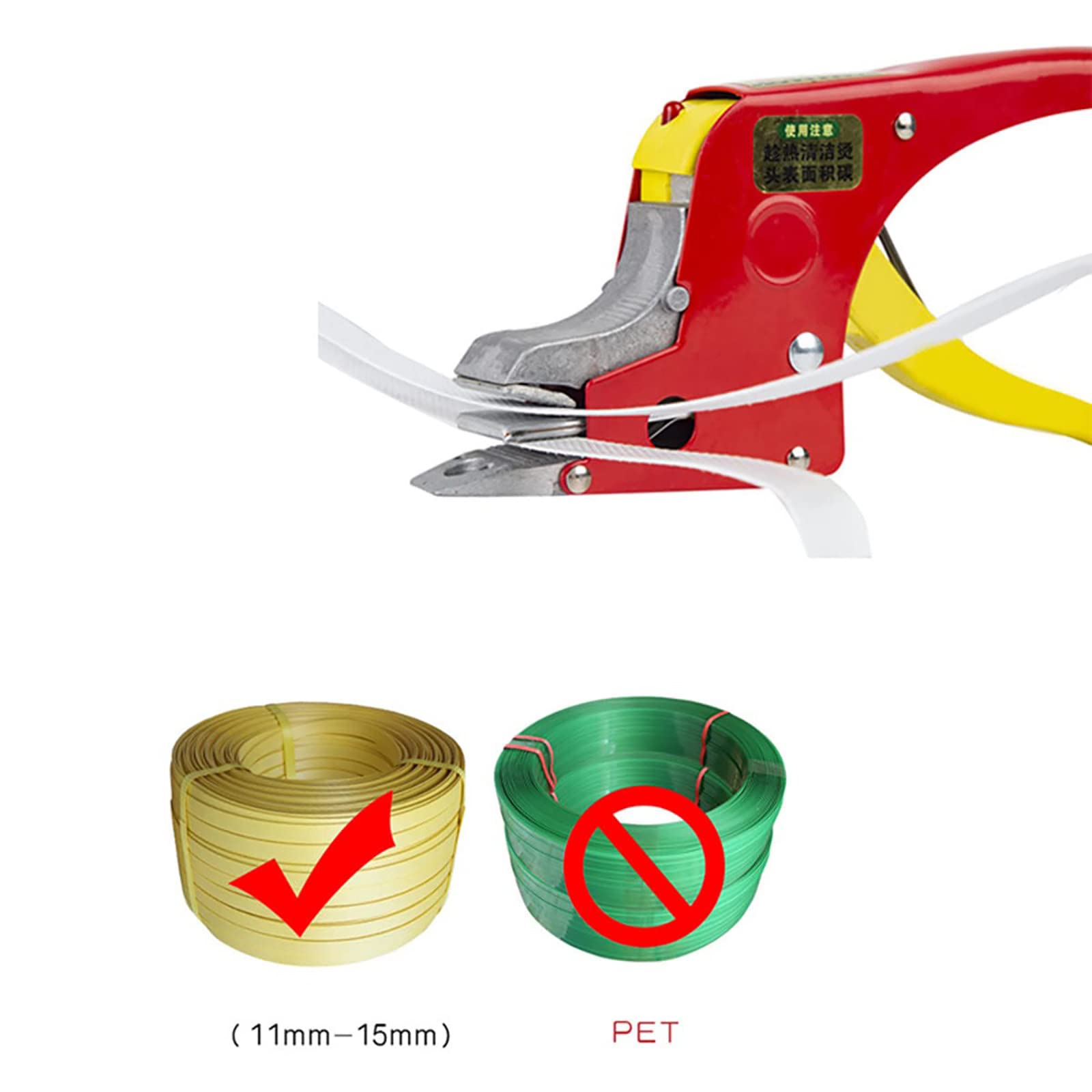

Wide strap compatibility - works with 6-16mm PP strapping
-
Strap thickness - compatible with 0.6-1.2mm strap thickness
-
Maximum bundle tension - up to 50kg
Product Specifications
| Parameter |
Value |
| Model |
KG-15-C |
| Power Supply |
12V (via 220V/12V transformer, UK plug included) |
| Rated Power |
15W |
| Strap Width |
6-16mm |
| Strap Thickness |
0.6-1.2mm |
| Minimum Bundle Size |
200 x 200mm |
| Maximum Bundle Size |
Unlimited |
| Maximum Strap Tension |
50kg |
| Strapping Speed |
Depends on operator proficiency |
| Dimensions (Tool) |
25cm x 6cm x 12cm |
| Net Weight (Tool) |
400g |
| Retail Box Dimensions |
255 x 115 x 57mm |
| Retail Box Weight |
640g |
| Carton (Master Box) |
59 x 27 x 25cm, 20 units, 14kg |
| Expected Service Life |
Approx. 2 years (6 hours/day normal use) |
| Patent No. |
ZL99236380.2 |
| Inspection No. |
DQ01128 |
Maintenance Notes
- Ensure the transformer plug is firmly connected to avoid damage from drops or strong impacts.
- After use, unplug the transformer and clean the heating iron surface while still warm - do not clean when cold to prevent deformation.

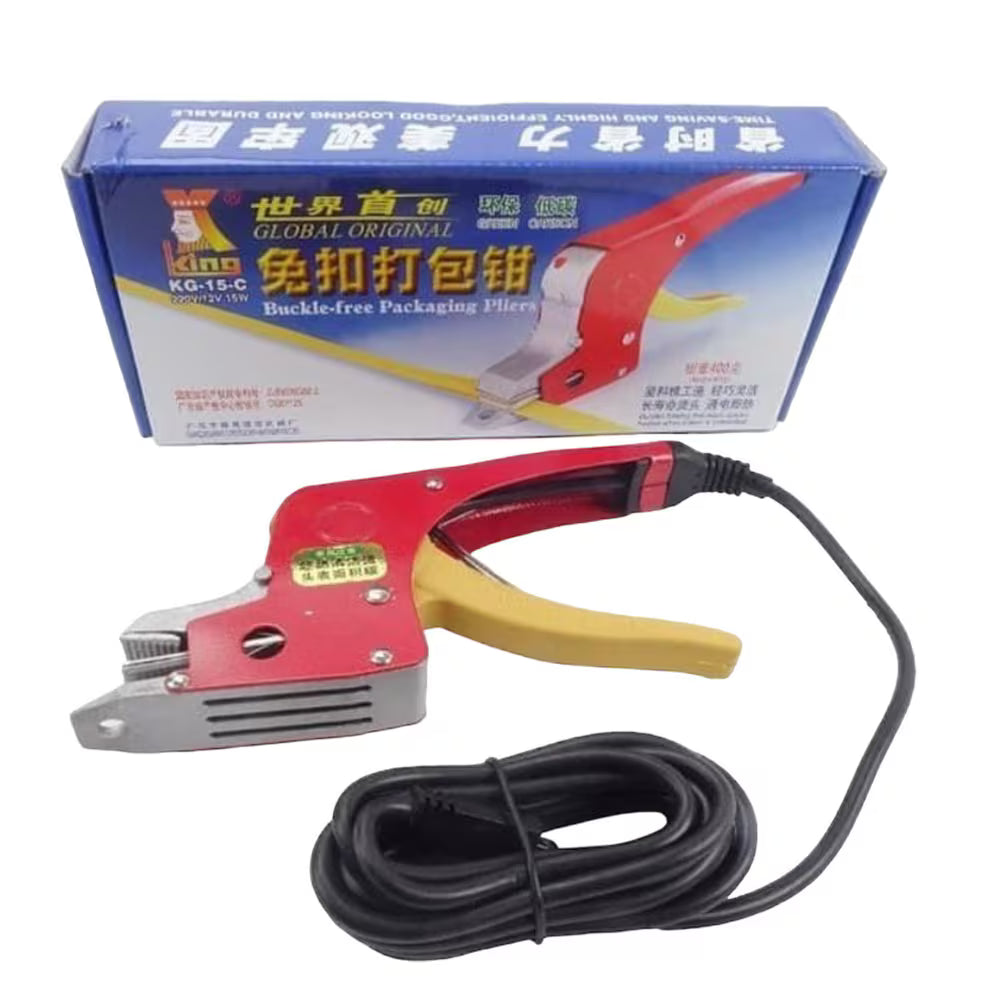

In the Box
- 1 x King KG-15-C Buckle-Free Packaging Pliers
- 1 x 220V/12V Transformer with UK Standard Plug
