Description

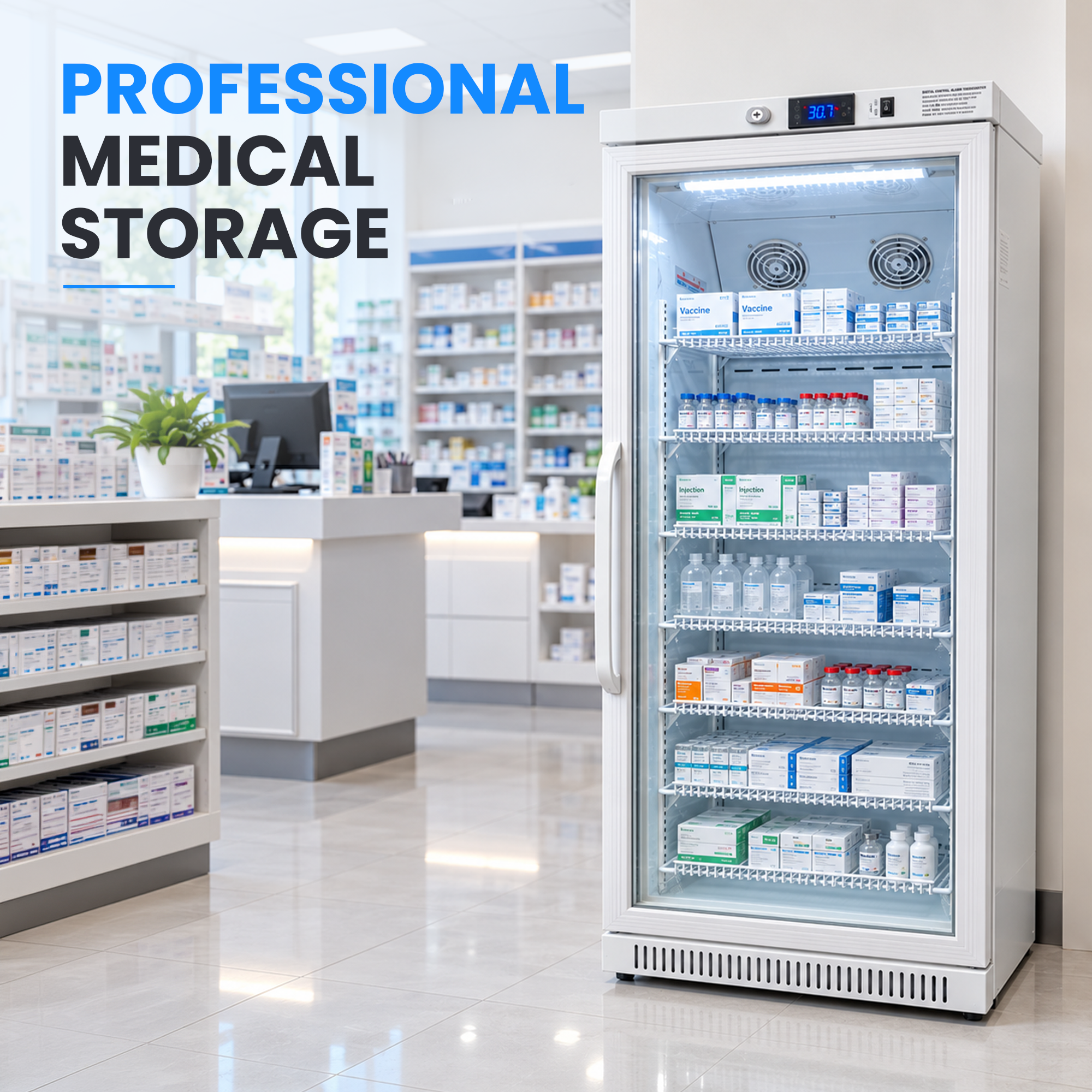

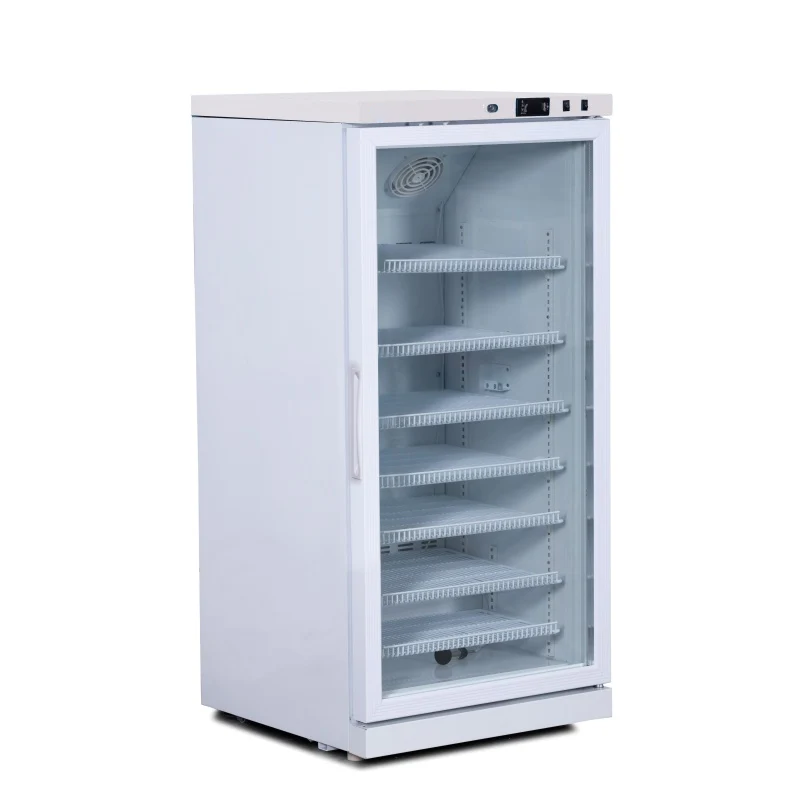

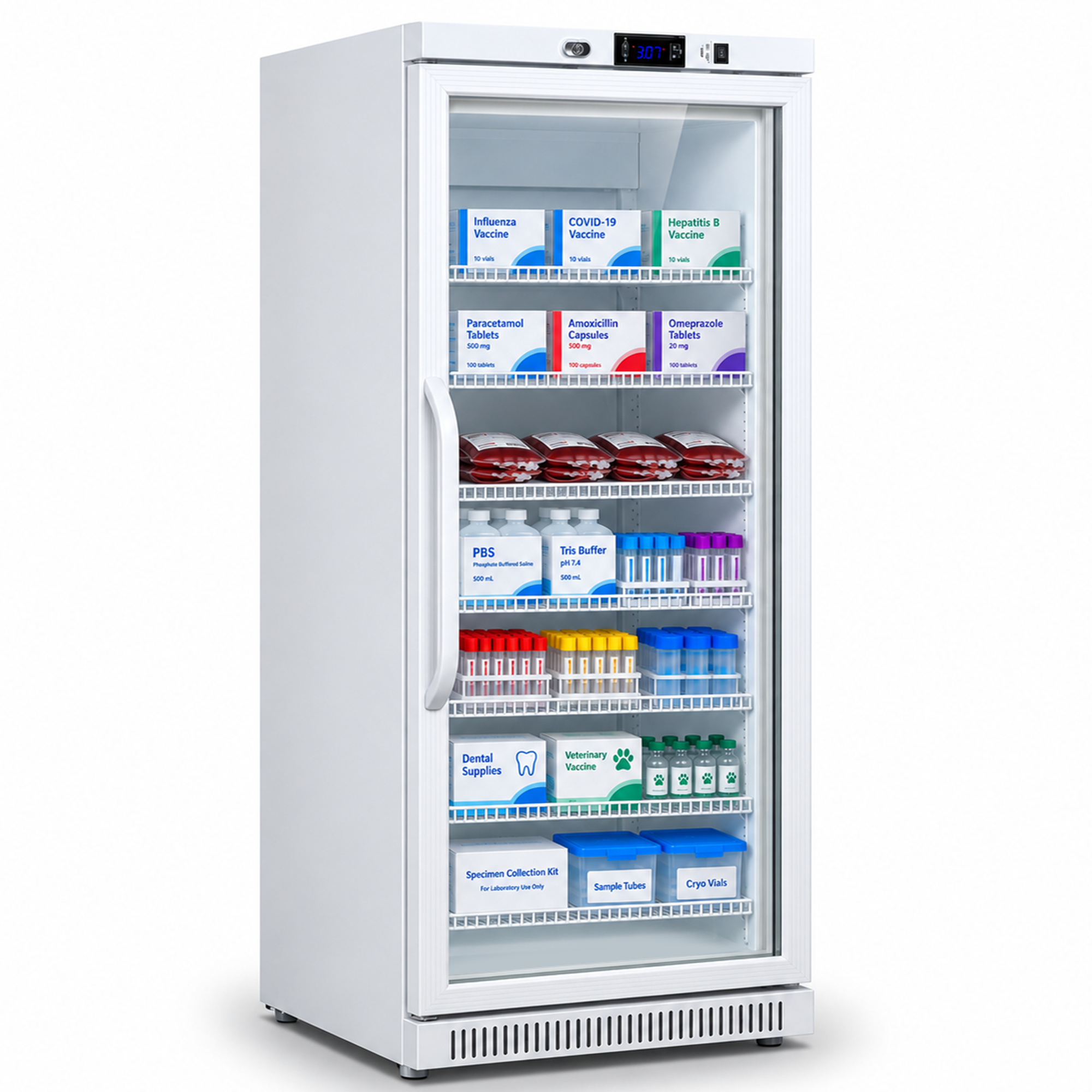

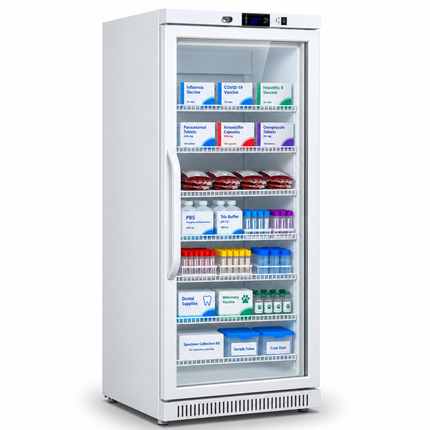

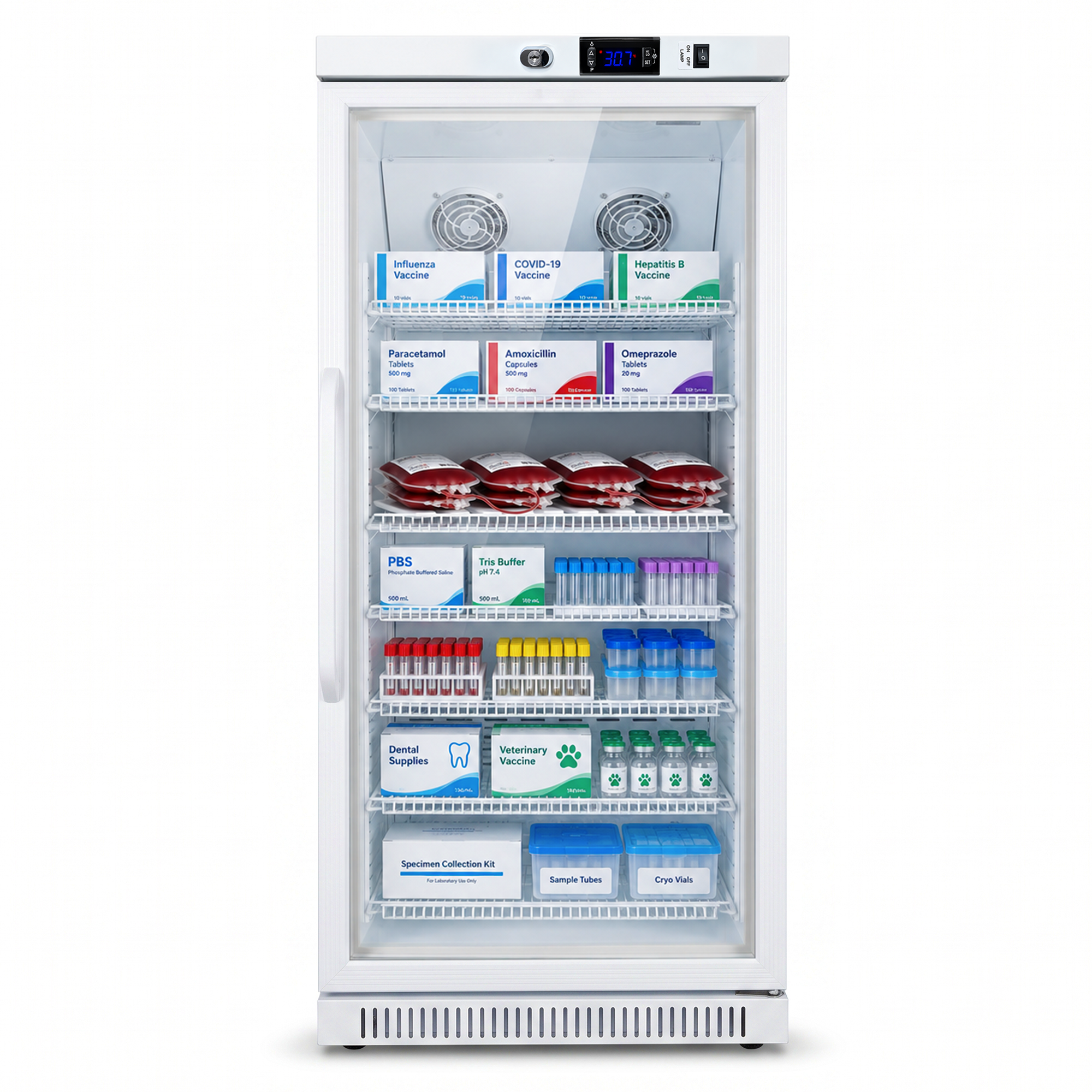

Medical Refrigerator 216L - Model JGA-BC228

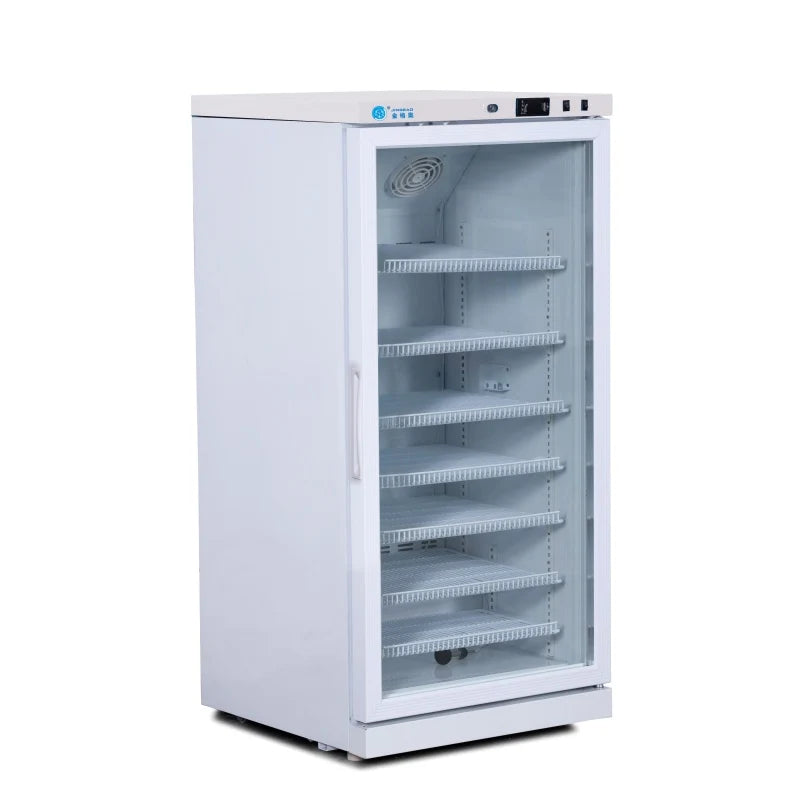

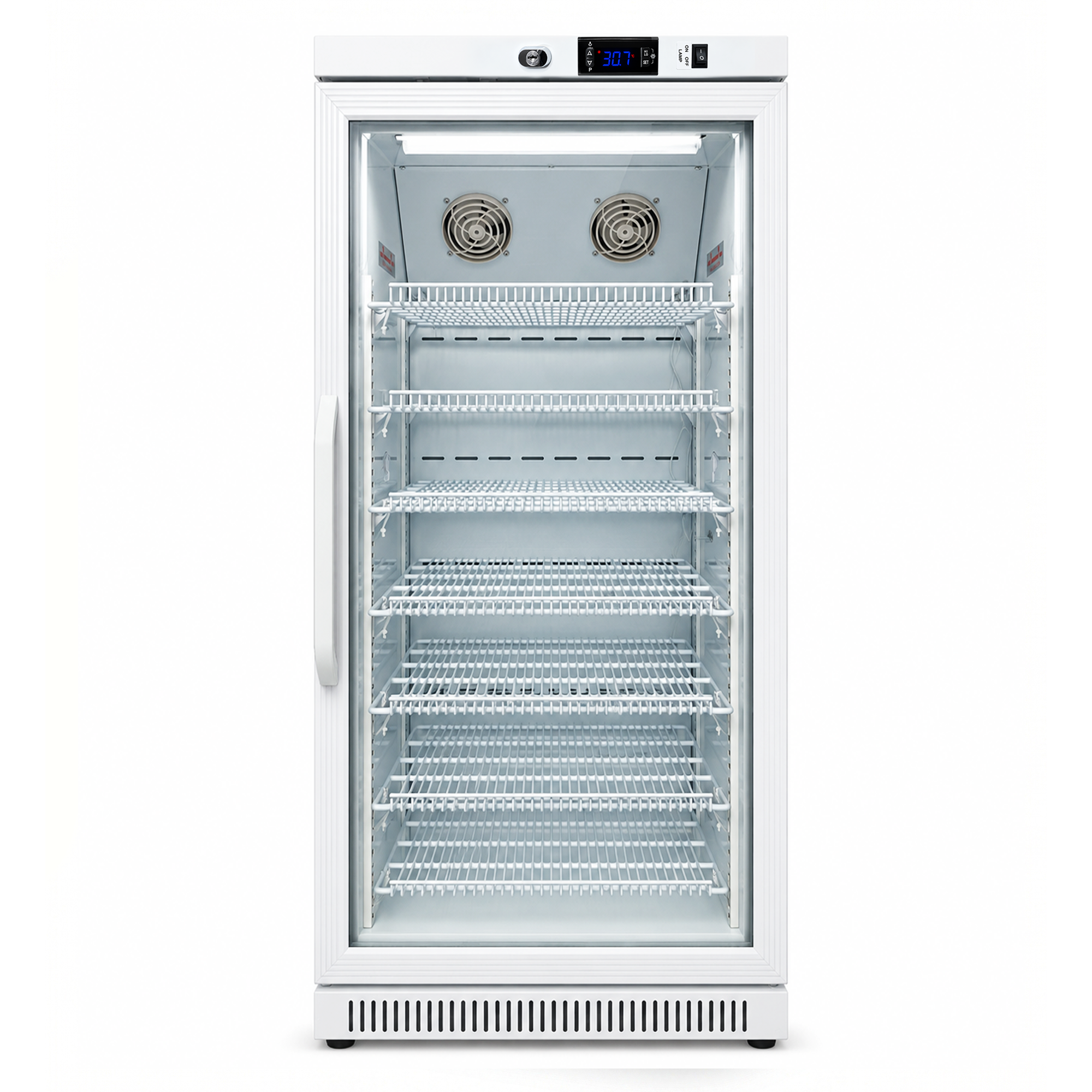

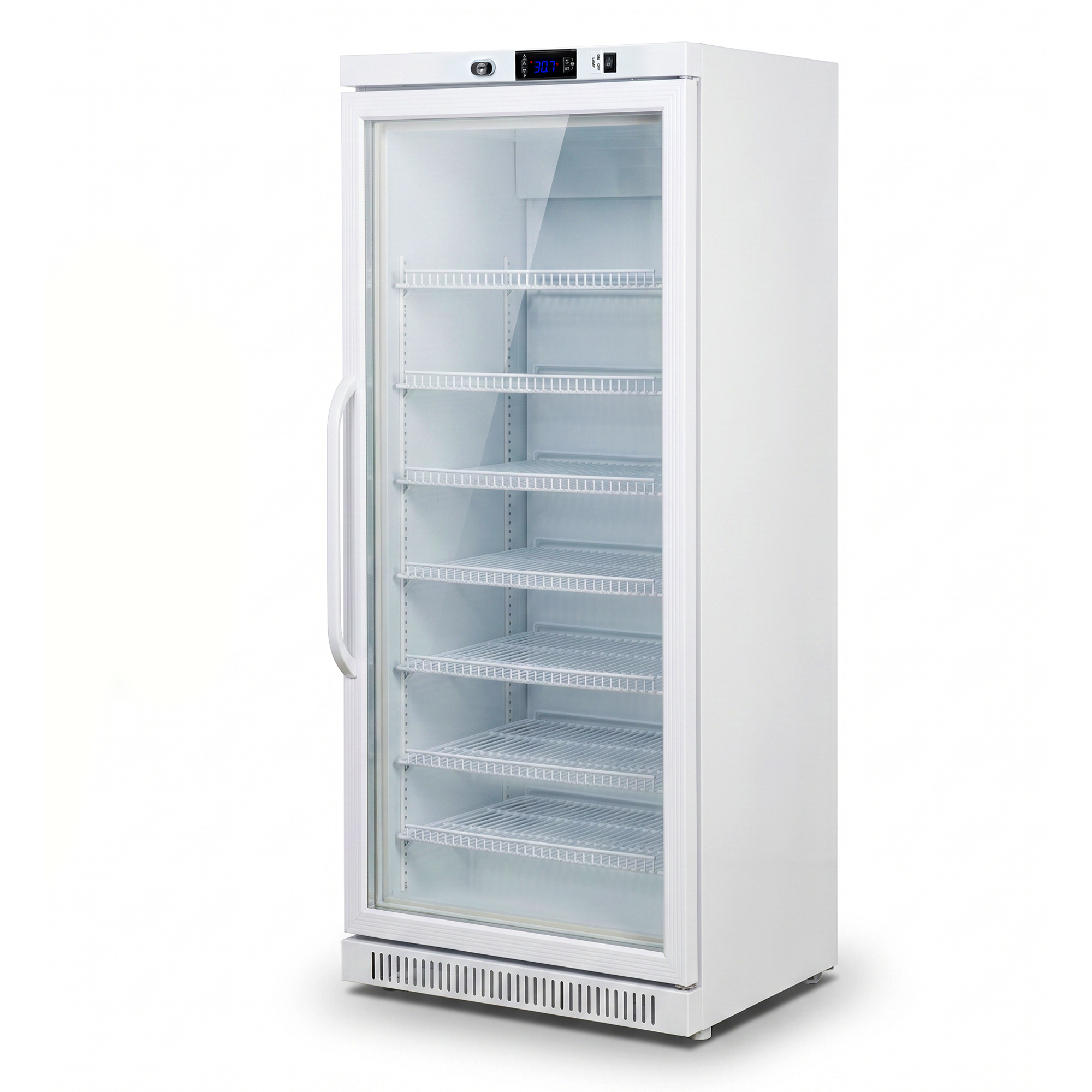

The JGA-BC228 is an upright, glass-door medical-grade refrigerator with a 216-litre capacity, engineered for the storage of vaccines, pharmaceuticals, blood samples, and other temperature-critical biological preparations. Built to exceed standard household refrigerator tolerances, it is suitable for hospitals, clinics, pharmacies, laboratories, and research facilities.
Technical Specifications
| Model |
JGA-BC228 |
| Volume |
216 L |
| Temperature Range |
2°C to 8°C |
| Internal Temperature Difference |
Within 2°C |
| Temperature Fluctuation |
±0.1°C (vs ±2°C in household refrigerators) |
| Cooling System |
Compressor-driven, no-frost, anti-vibration, forced circulated air |
| Refrigerant |
R600a (eco-friendly) |
| Power Supply |
AC 220V / 50Hz |
| Glass Door |
Double-layer insulated glass with lock |
| Shelves |
White plastic-coated shelves |
| Interior Lighting |
White LED (customisable on request) |
| Net Weight |
75 KG |
| Gross Weight |
85 KG |

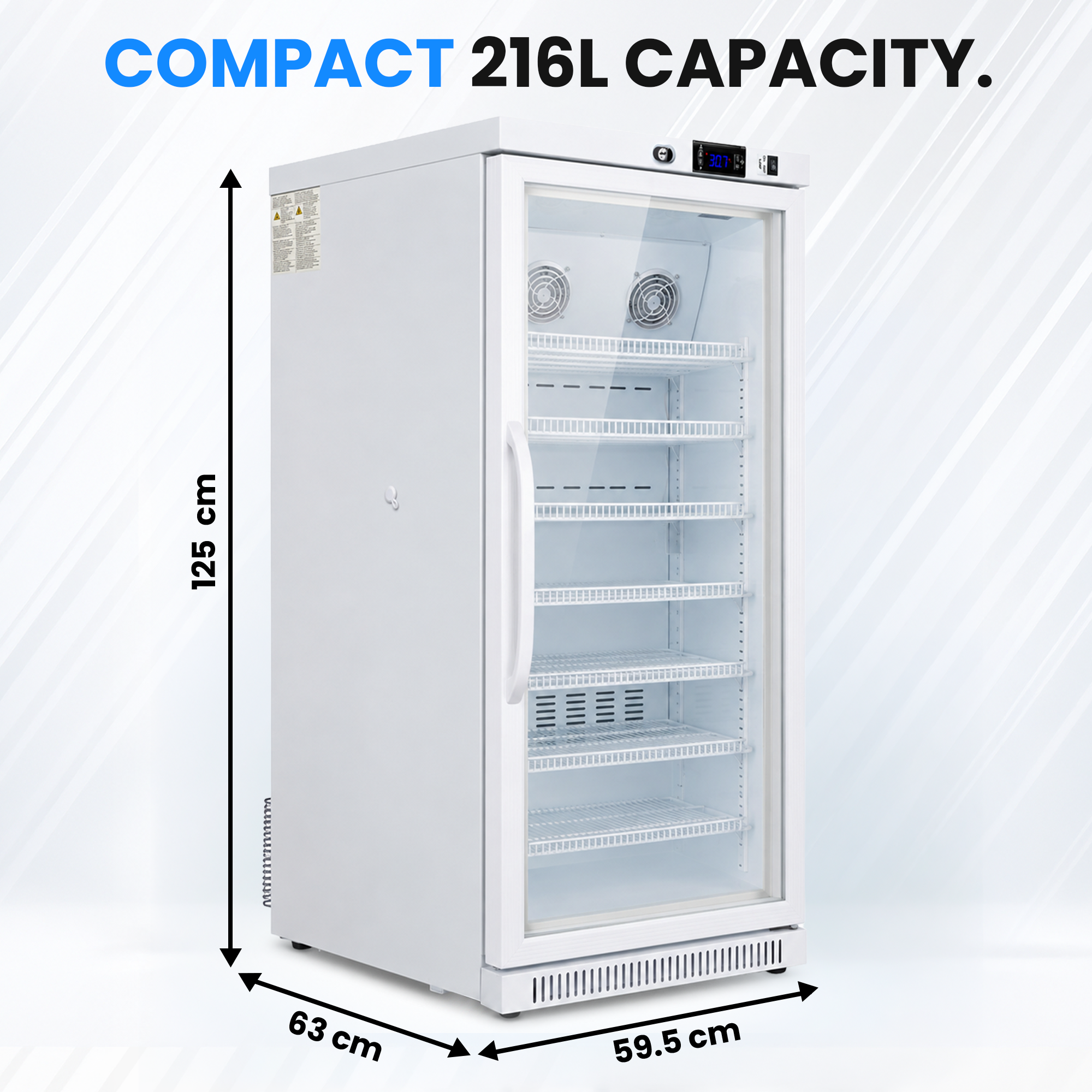

| Net Dimensions (W x D x H) |
595 x 611 x 1260 mm |
| Gross Dimensions (W x D x H) |
660 x 705 x 1330 mm |
| Certification |
CE |

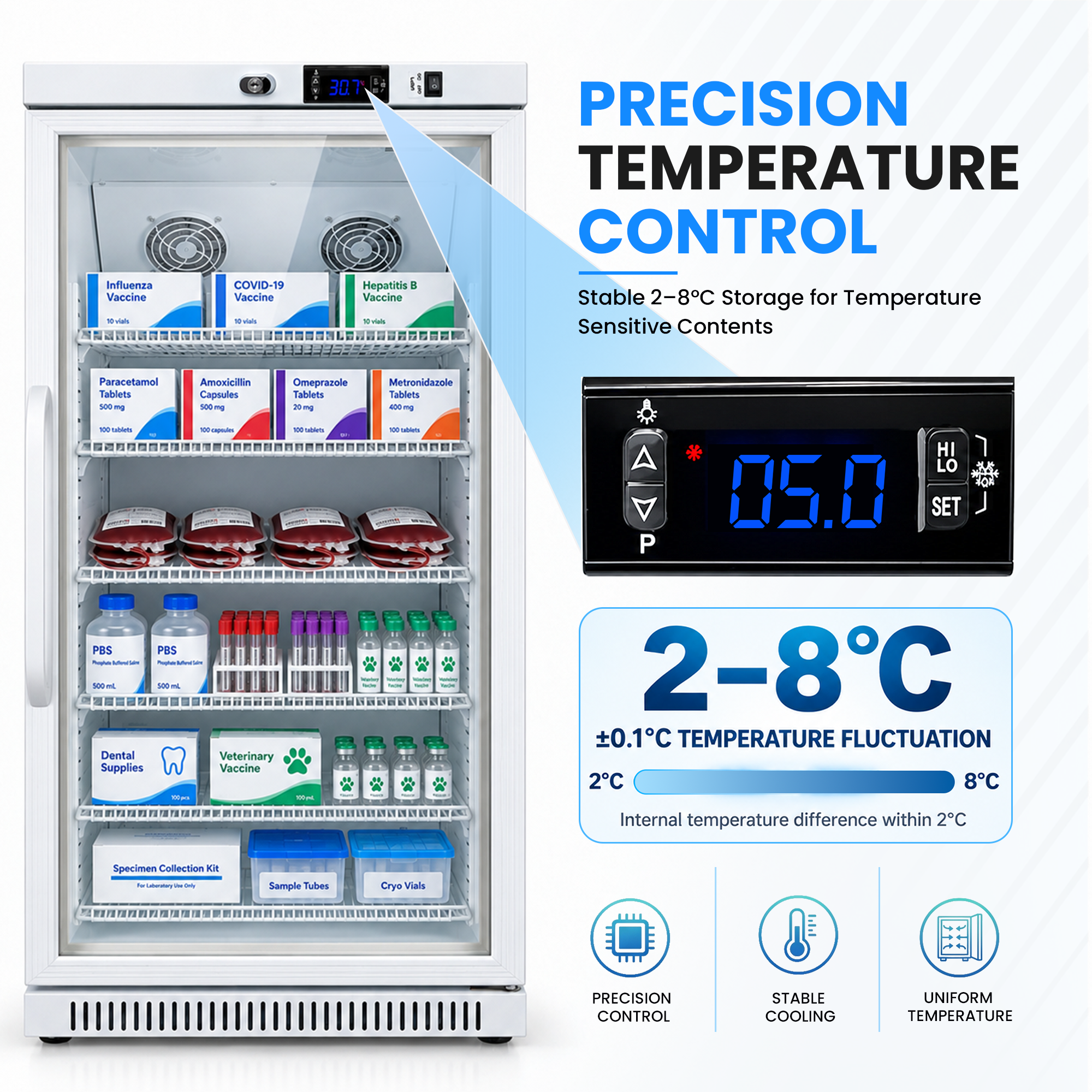

Temperature Control
-
High-precision micro temperature controller with a fluctuation range of ±0.1°C - significantly tighter than the ±2°C tolerance of household refrigerators
- Maintains stable 2°C to 8°C range required for vaccines, blood products, and sensitive pharmaceutical preparations
- Internal temperature difference within 2°C - uniform cooling throughout the cabinet with no hot or cold spots

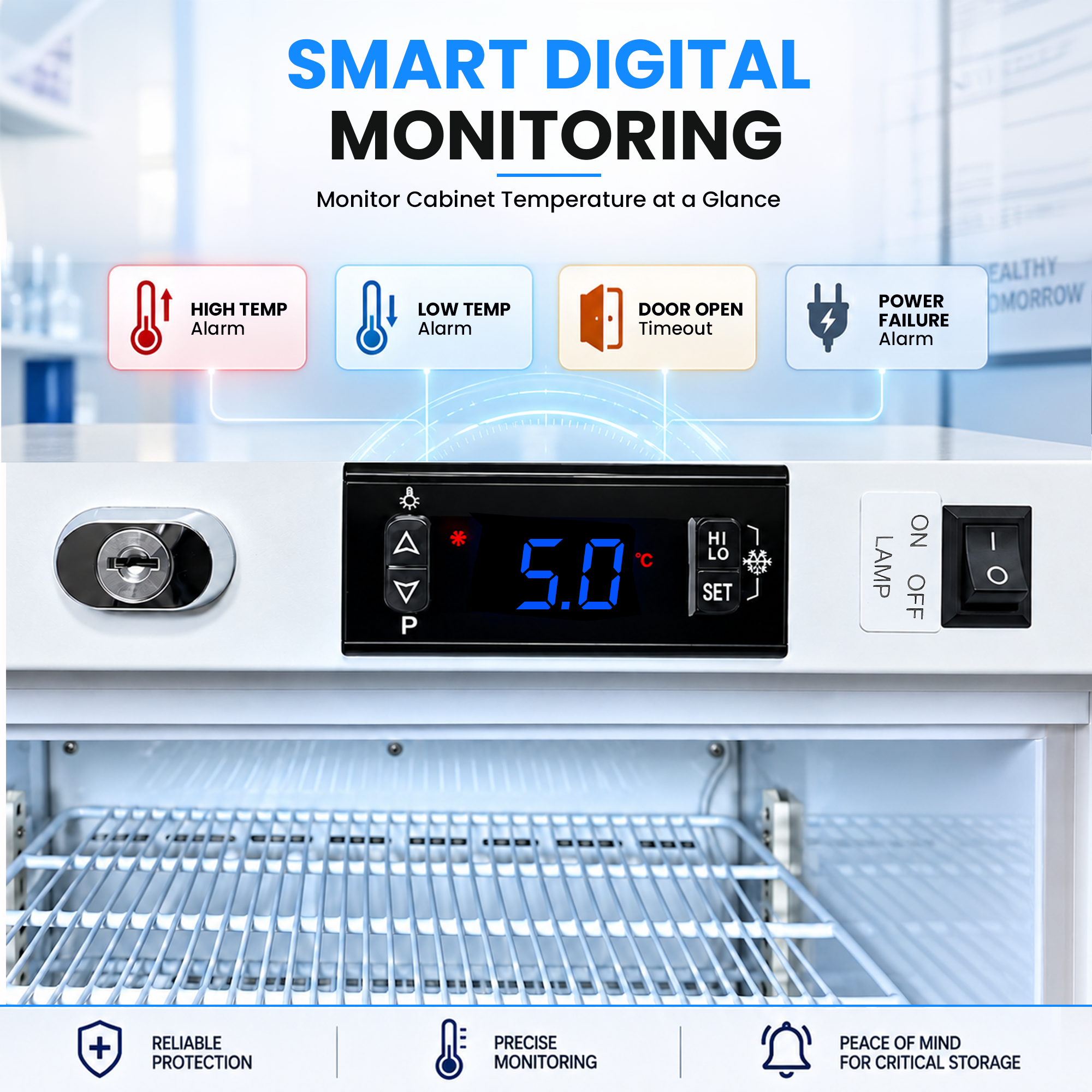

Alarm System
- Audible and visual (sound and light) alarms
- High temperature alarm
- Low temperature alarm
- Door-open timeout alarm
- Power failure alarm

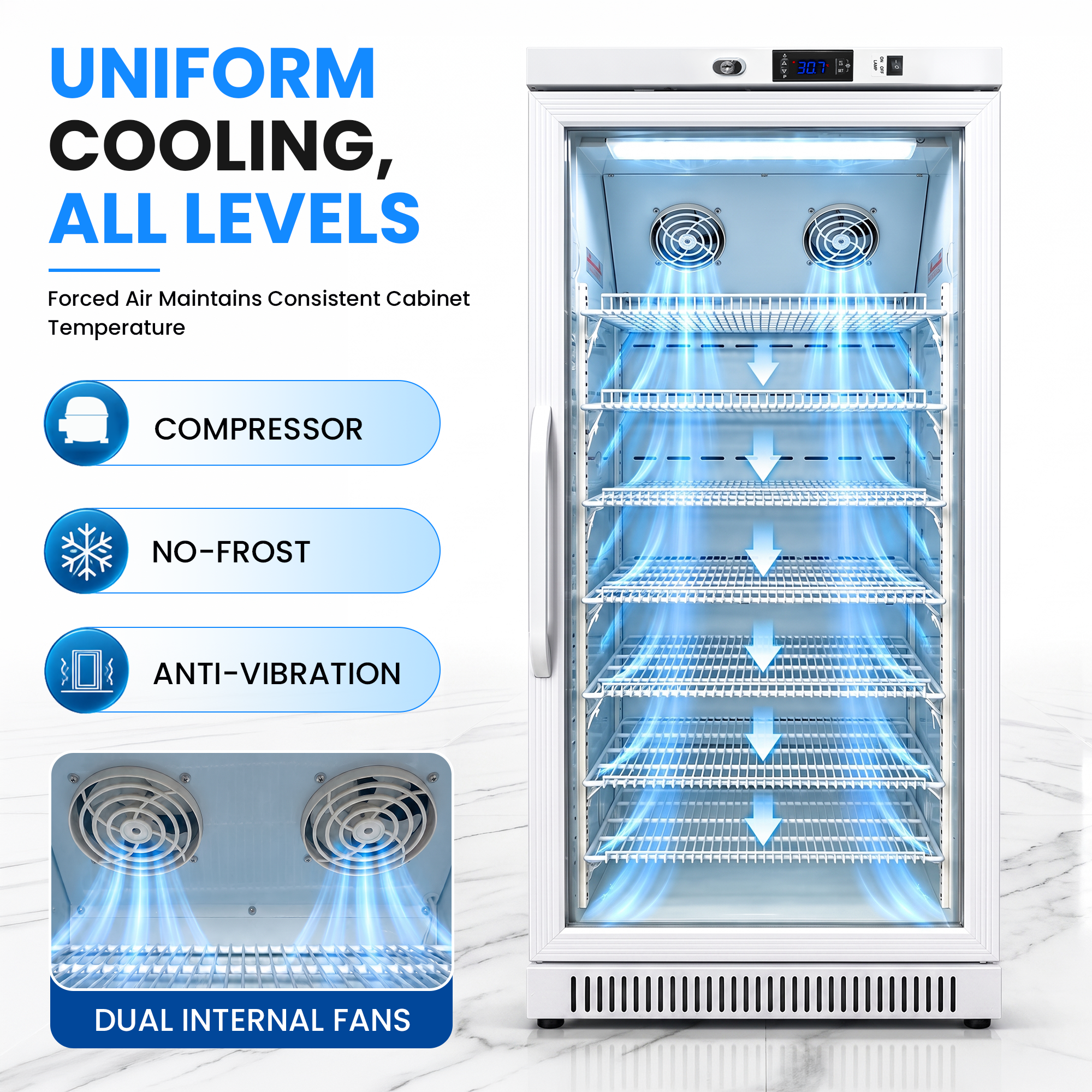

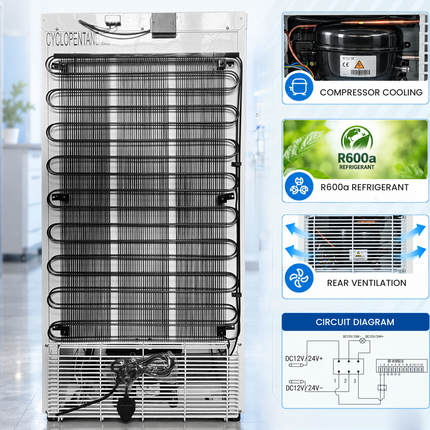

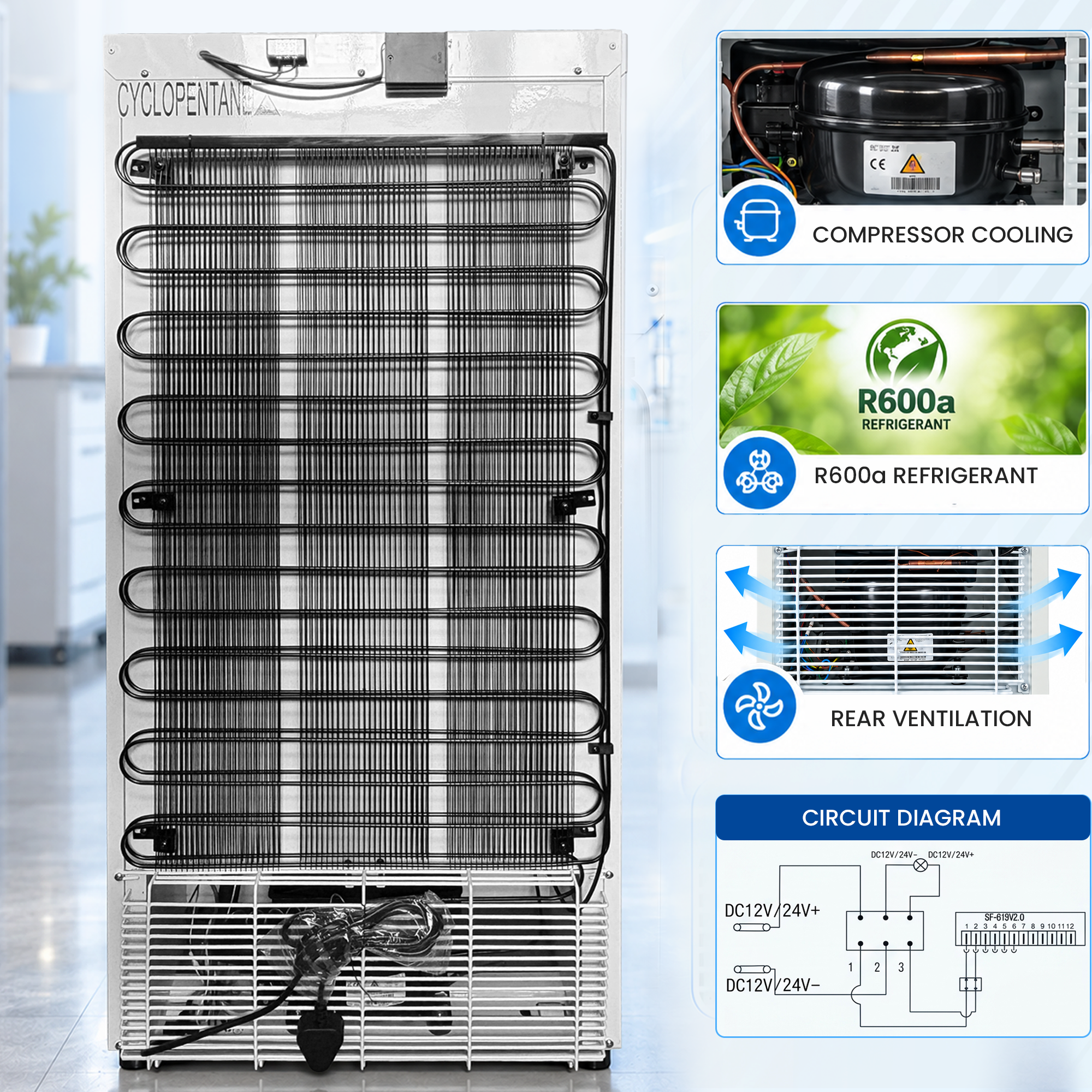

Cooling System
- Compressor-based refrigeration - reliable and consistent
- No-frost technology - no manual defrosting required
- Anti-vibration design - safe for sensitive samples and preparations

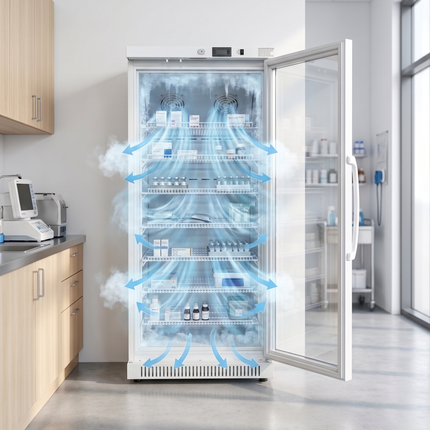

- Forced circulated air for uniform temperature distribution
- R600a refrigerant - low global warming potential, environmentally compliant
Door & Access
- Double-layer insulated glass door for thermal efficiency
- Full visibility of contents without opening the door
- Lockable door for secure medication and sample storage
Interior
- White plastic-coated shelves - easy to clean and corrosion-resistant

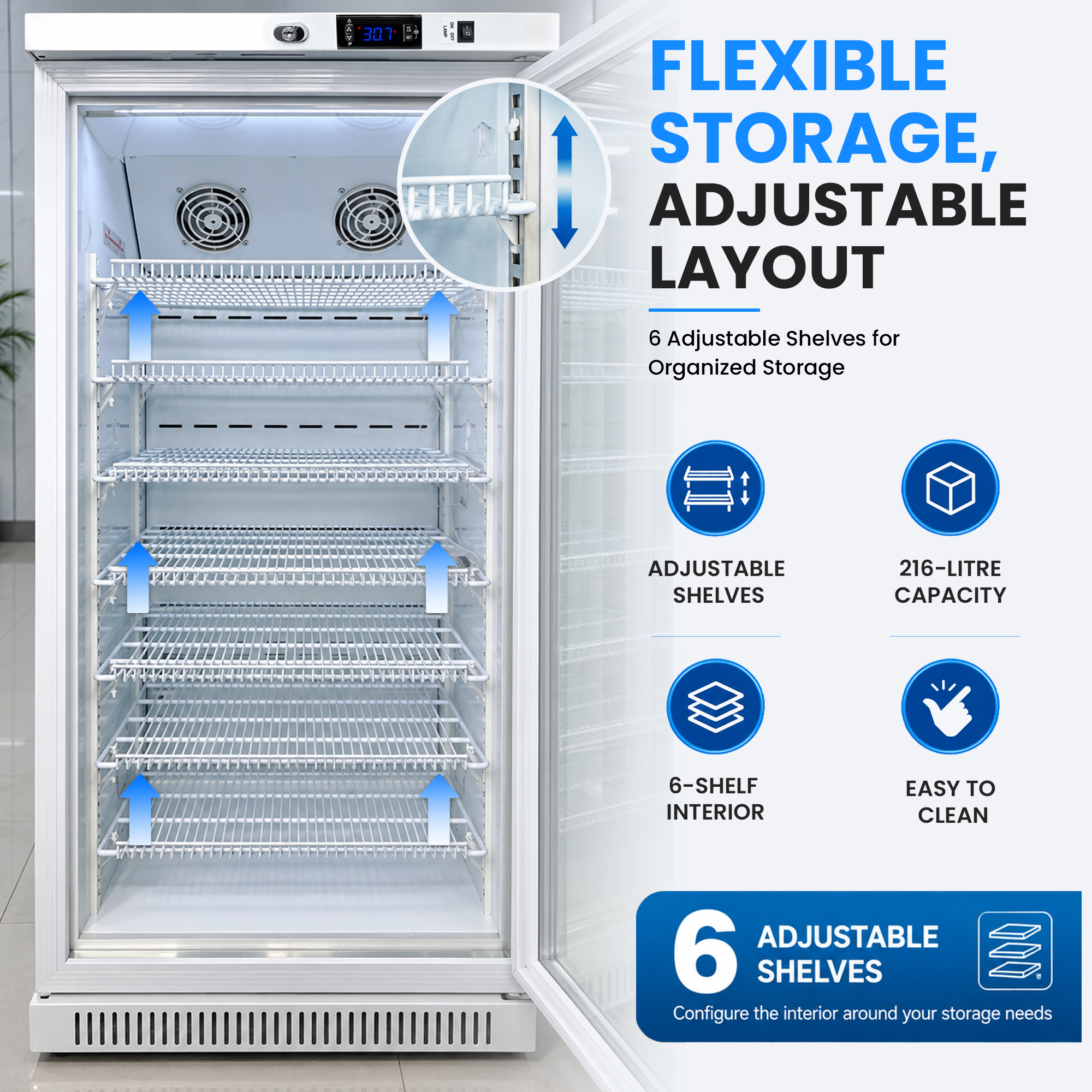

- 6 adjustable shelves for flexible storage configurations

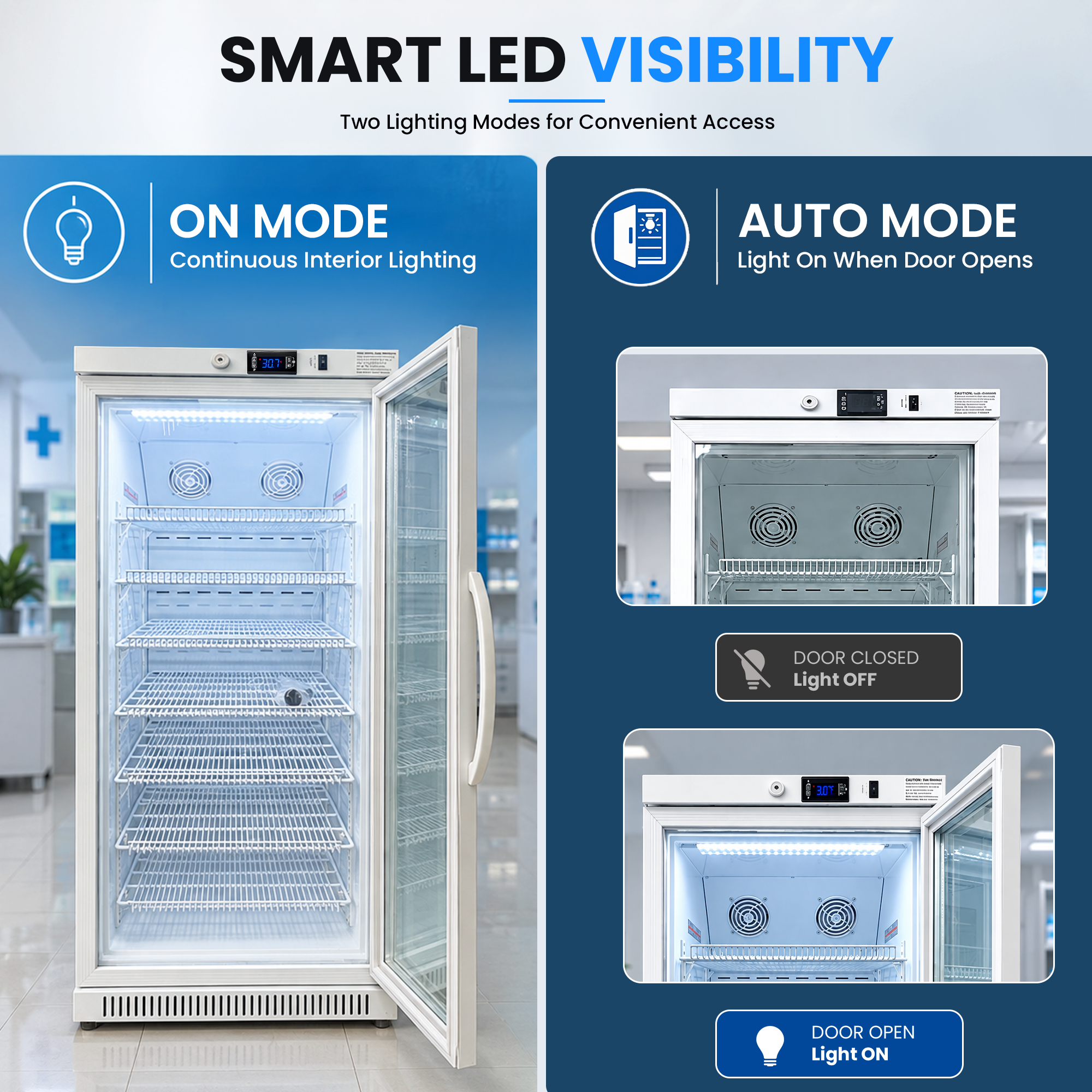

- White LED interior lighting for clear visibility
- Custom lighting options available on request
- Levelling feet for stable placement on uneven surfaces
Power
- AC 220V / 50Hz
- Suitable for UAE and GCC standard power supply

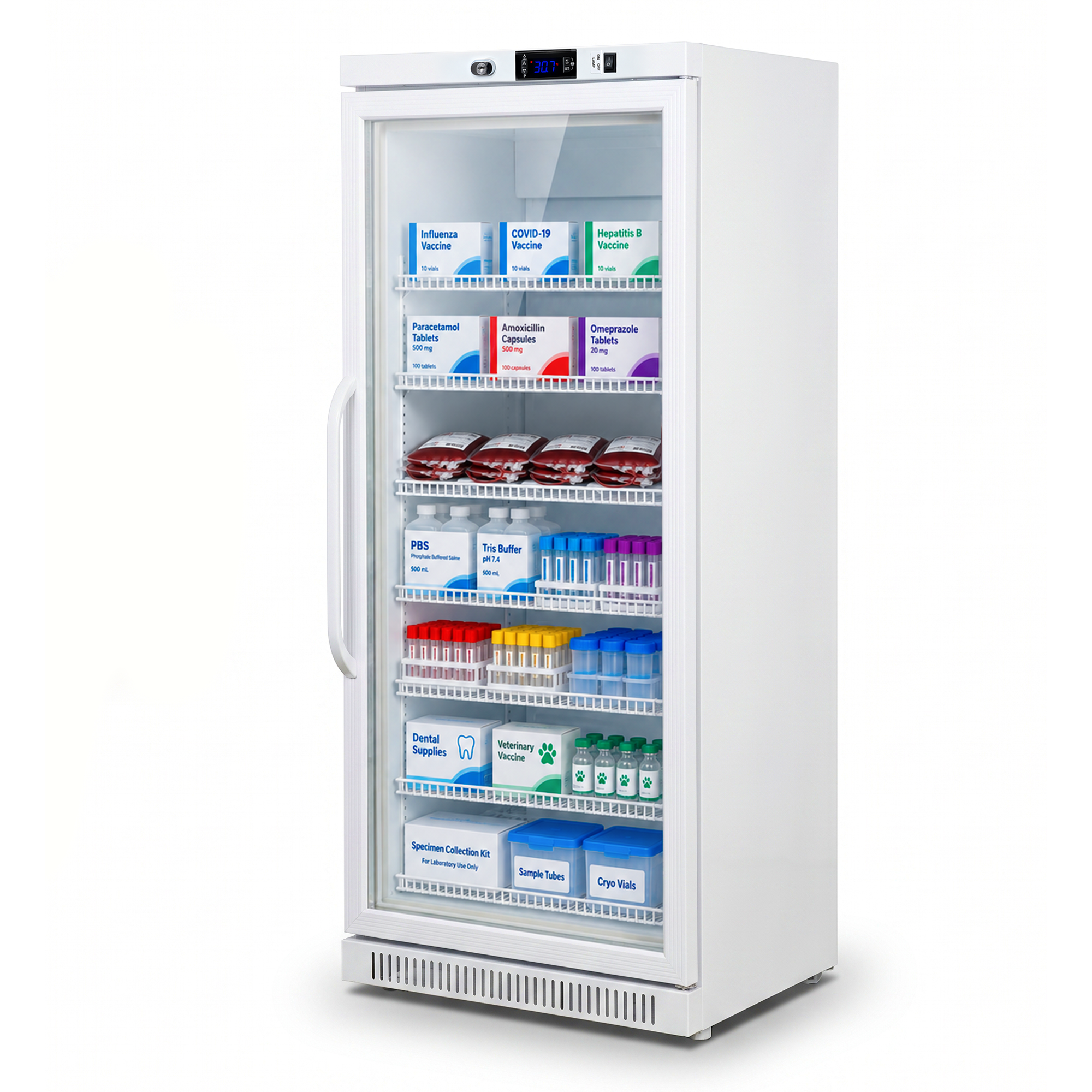

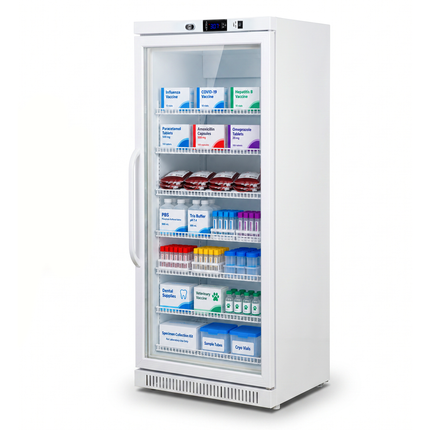

Applications
- Vaccine storage
- Pharmaceutical and drug storage
- Blood and plasma storage
- Laboratory reagent and sample storage
- Dental and veterinary clinic use
