Proxmark3 Easy V3.0 DEV Kit - Professional RFID Card Reader and Decryptor
The Proxmark3 Easy V3.0 DEV Kit is a powerful, open-source RFID research and security tool designed for professionals, security researchers, and access control specialists. Whether you are auditing an existing RFID system, cloning cards for authorized testing, or decoding encrypted credentials, this kit gives you the hardware and flexibility to do it right.
This kit includes an integrated antenna for both High Frequency (HF) and Low Frequency (LF) operations, making it one of the most versatile RFID platforms available. It ships complete with 5 blank HF LF IC ID cards so you can begin testing immediately out of the box.
What Makes the Proxmark3 Easy V3.0 Stand Out

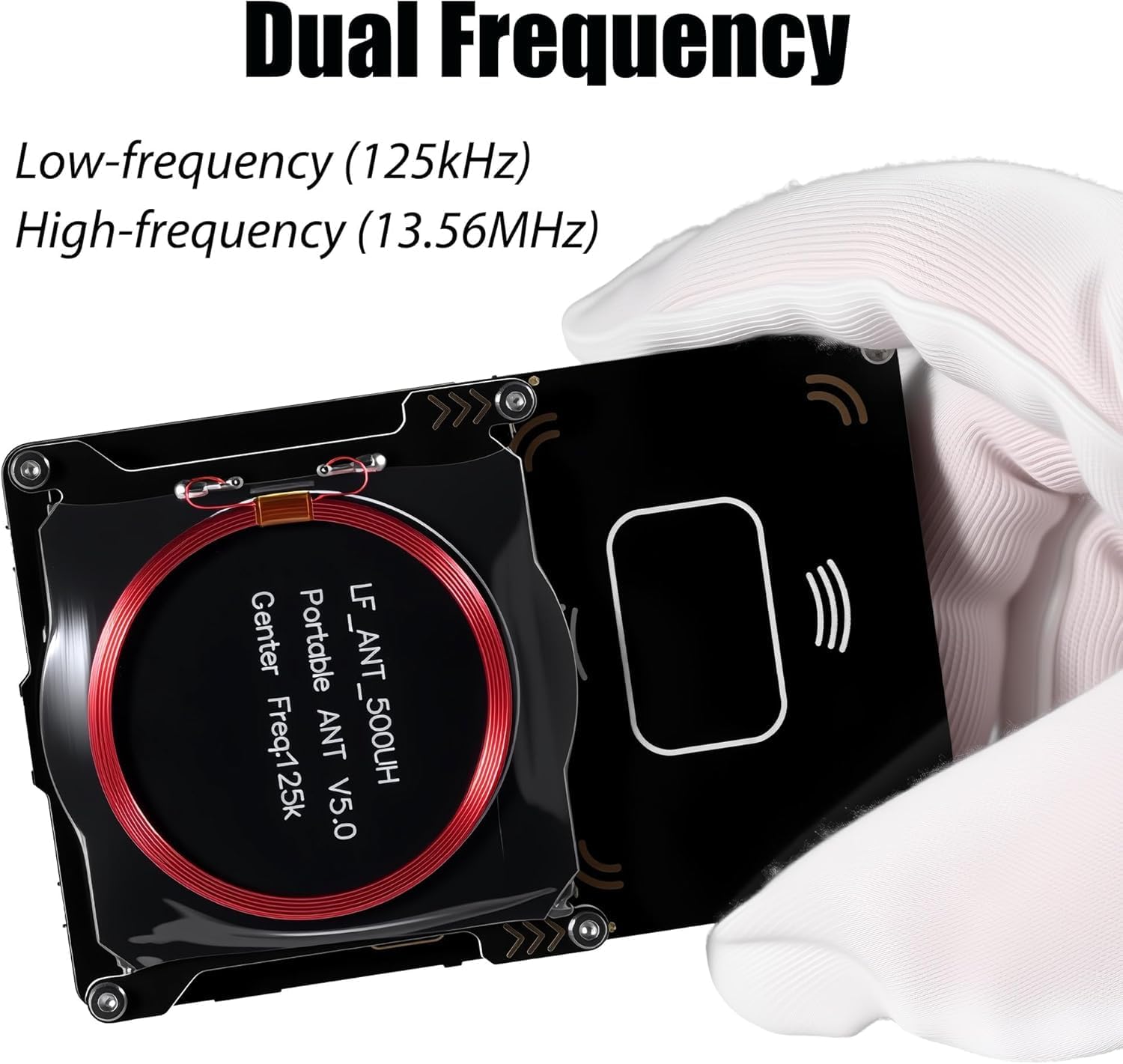

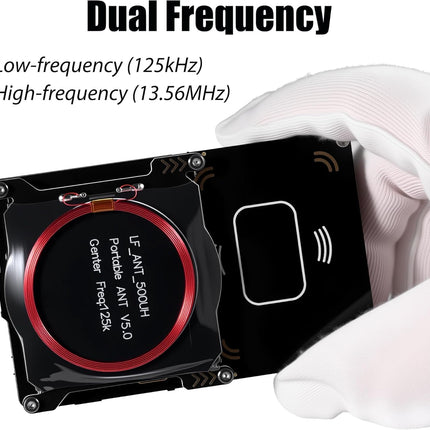

- Supports both HF (13.56 MHz) and LF (125 kHz) RFID frequencies in a single device
- Compatible with Mifare Classic (M1), Mifare Ultralight, HID, EM4100, T5577, and many more card types

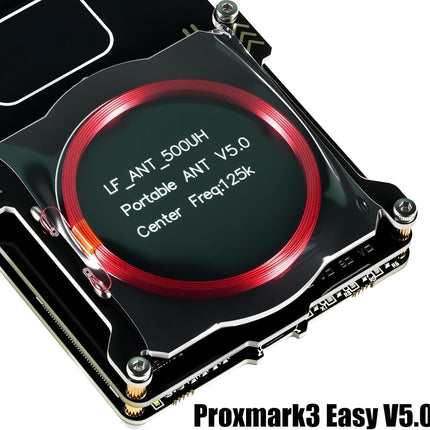

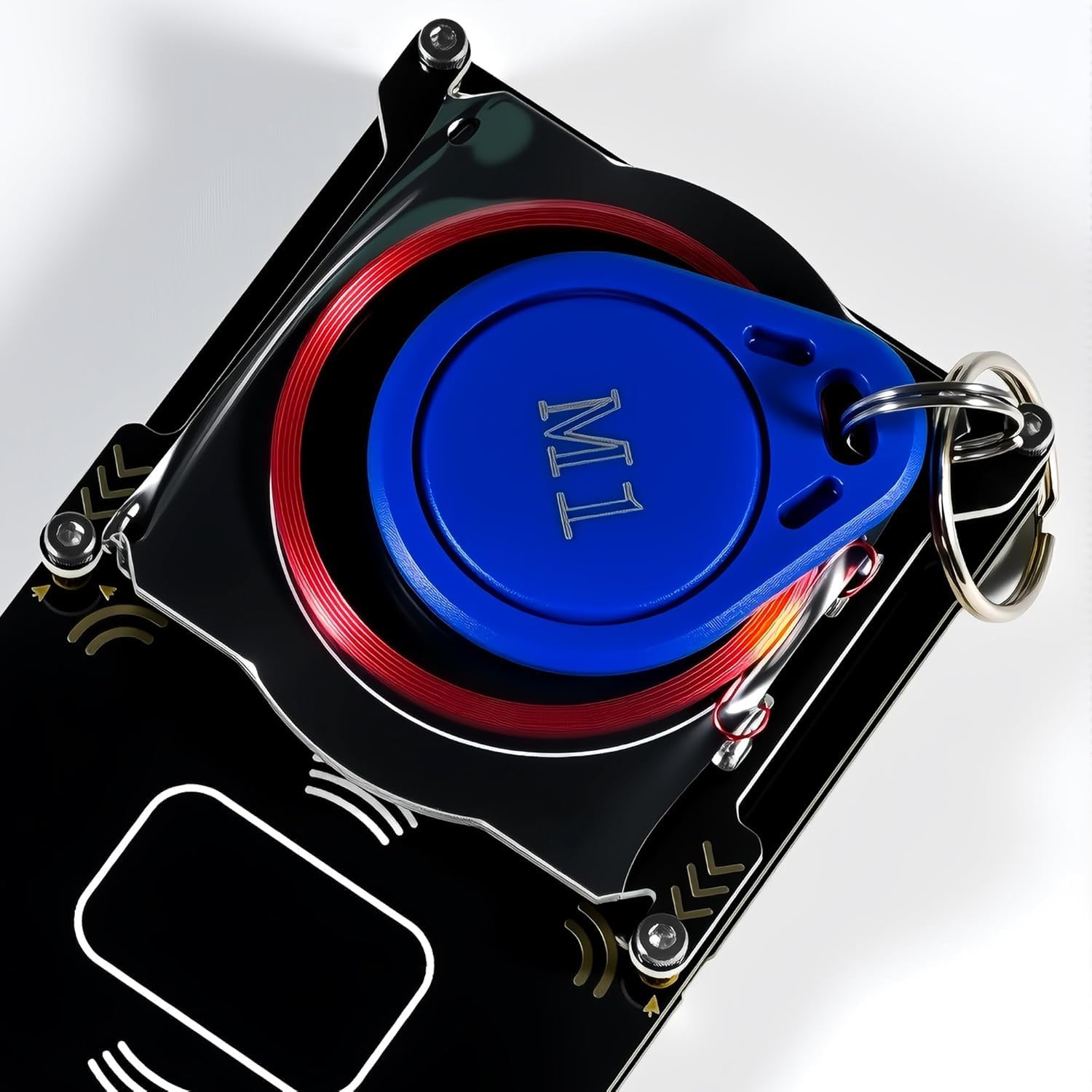

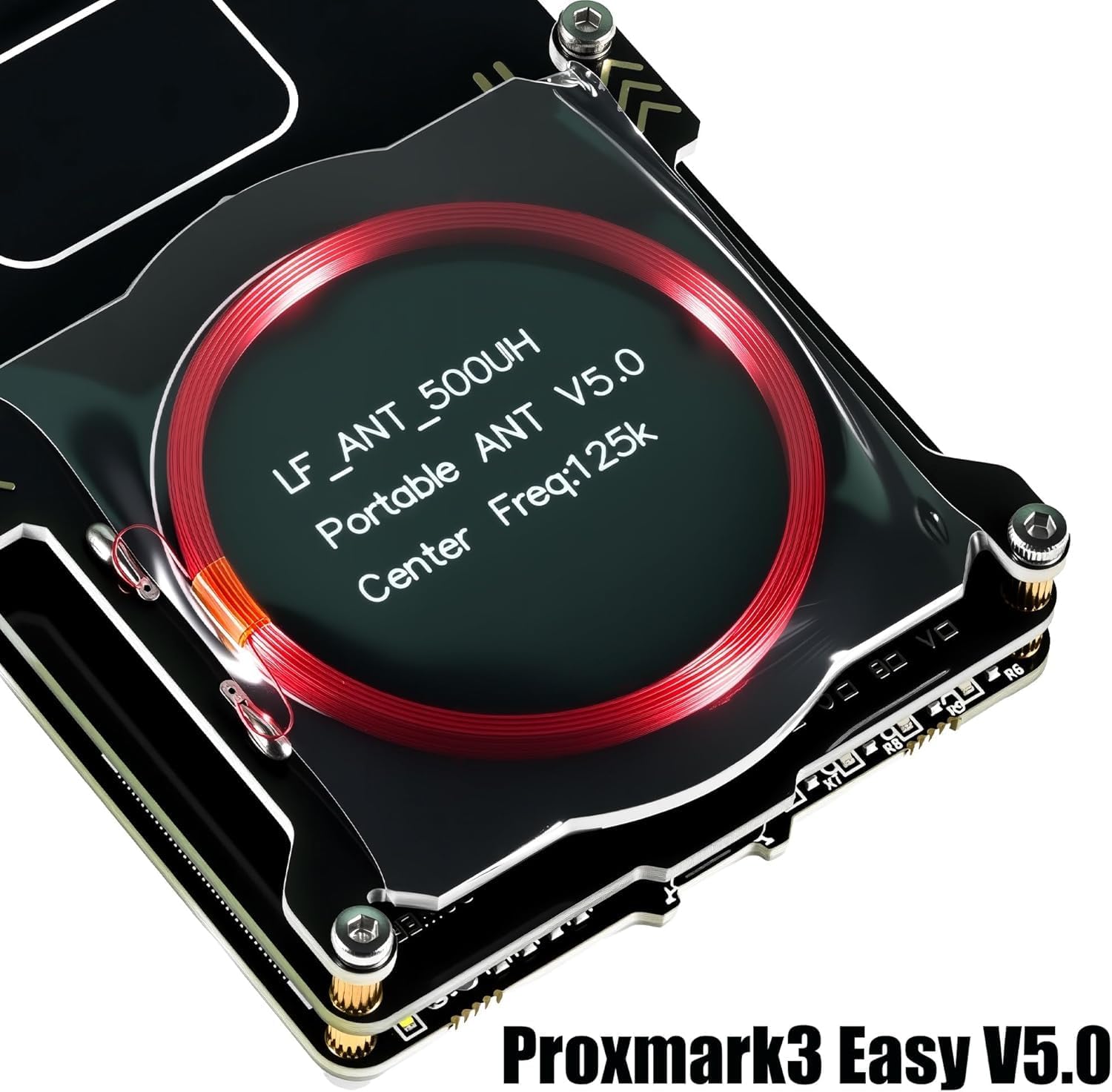

- Integrated antenna eliminates the need for external antenna modules
- Open-source firmware with active community support and regular updates
- USB-powered with no external power supply required
- Compact and portable design suitable for field use
- Compatible with Windows, Linux, and macOS via Proxmark3 client software
- Ideal for penetration testing, access control auditing, and RFID research

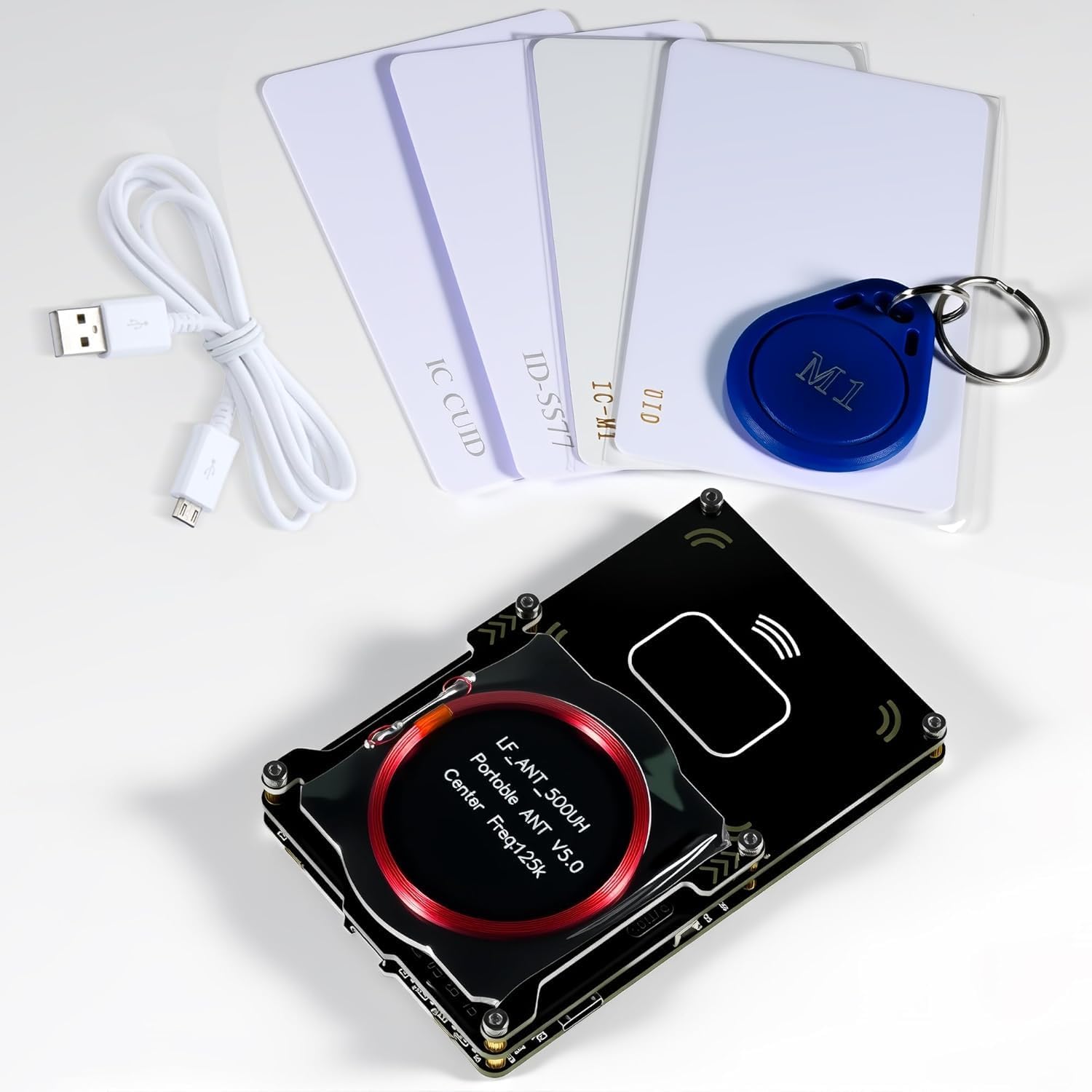

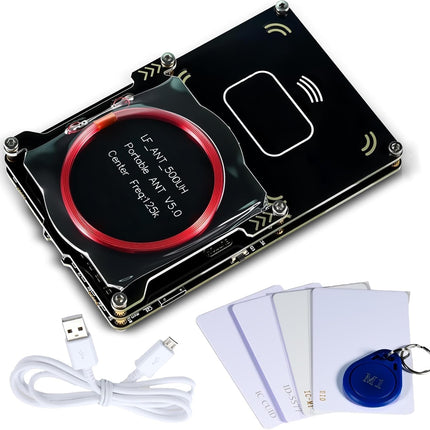

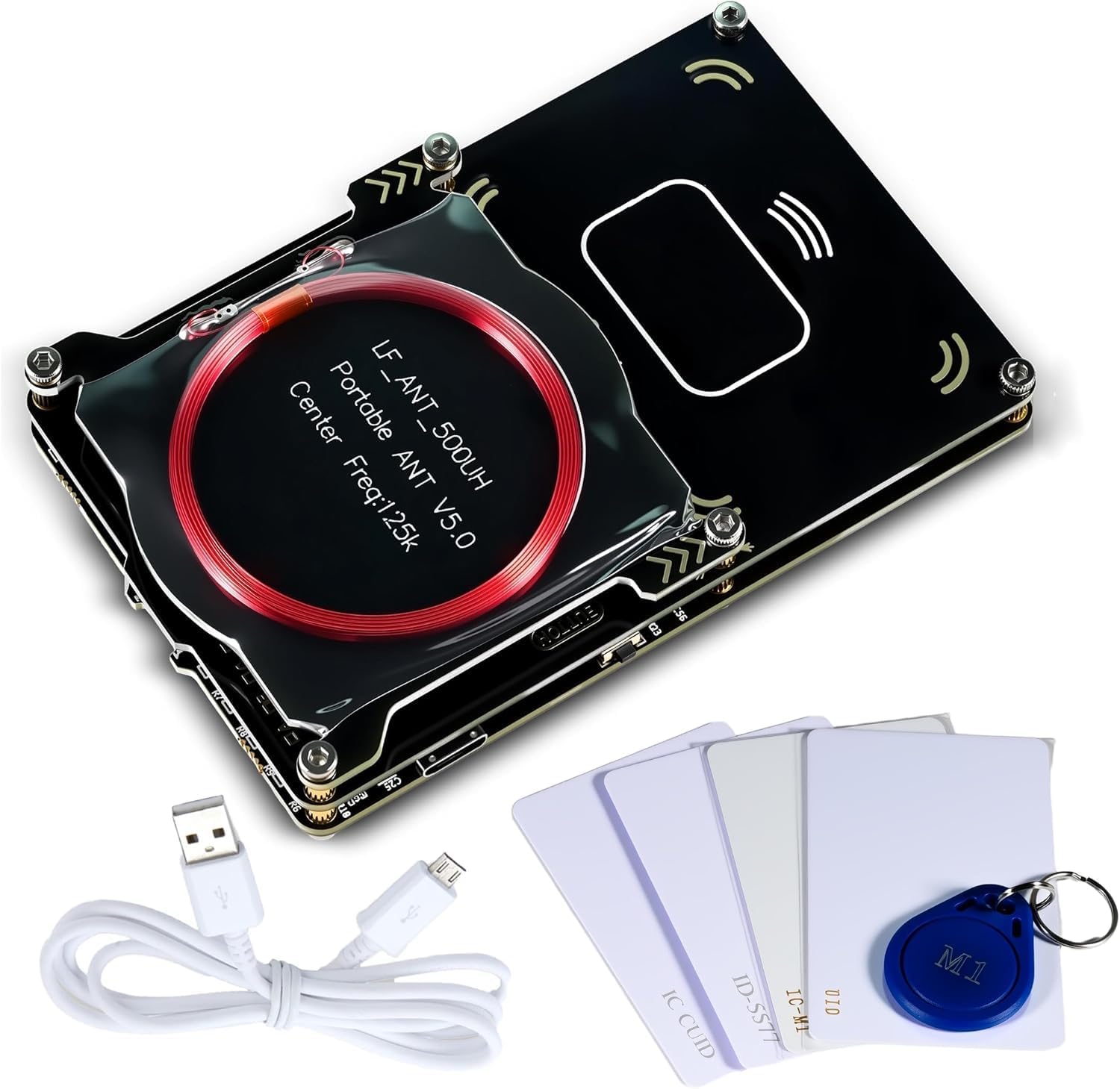

Complete Kit Contents
- 1x Proxmark3 Easy V3.0 DEV main unit with integrated antenna
- 5x Blank HF LF IC ID cards (writable, compatible with HF 13.56 MHz and LF 125 kHz)
- 1x USB cable
Technical Specifications
| Specification |
Details |
| Model |
Proxmark3 Easy V3.0 DEV Kit |
| HF Frequency |
13.56 MHz (ISO 14443A/B, ISO 15693, Mifare) |
| LF Frequency |
125 kHz / 134 kHz (EM4100, HID, T5577, Indala) |
| Antenna |
Integrated HF and LF antenna |
| Interface |
USB (Micro USB) |
| Power Supply |
USB powered, 5V DC |
| Processor |
ARM Cortex-M3 (AT91SAM7S512) |
| FPGA |
Xilinx Spartan-II XC2S30 |
| Supported Card Types |
Mifare Classic 1K/4K, Mifare Ultralight, HID Prox, EM4100, T5577, Indala, iClass, ISO 14443A/B, ISO 15693 |
| Firmware |
Open-source (Proxmark3 RDV4 compatible firmware) |
| OS Compatibility |
Windows, Linux, macOS |
| Included Cards |
5x HF LF IC ID blank writable cards |
| Read Range |
Up to 5 cm (HF) / Up to 10 cm (LF) depending on card type |

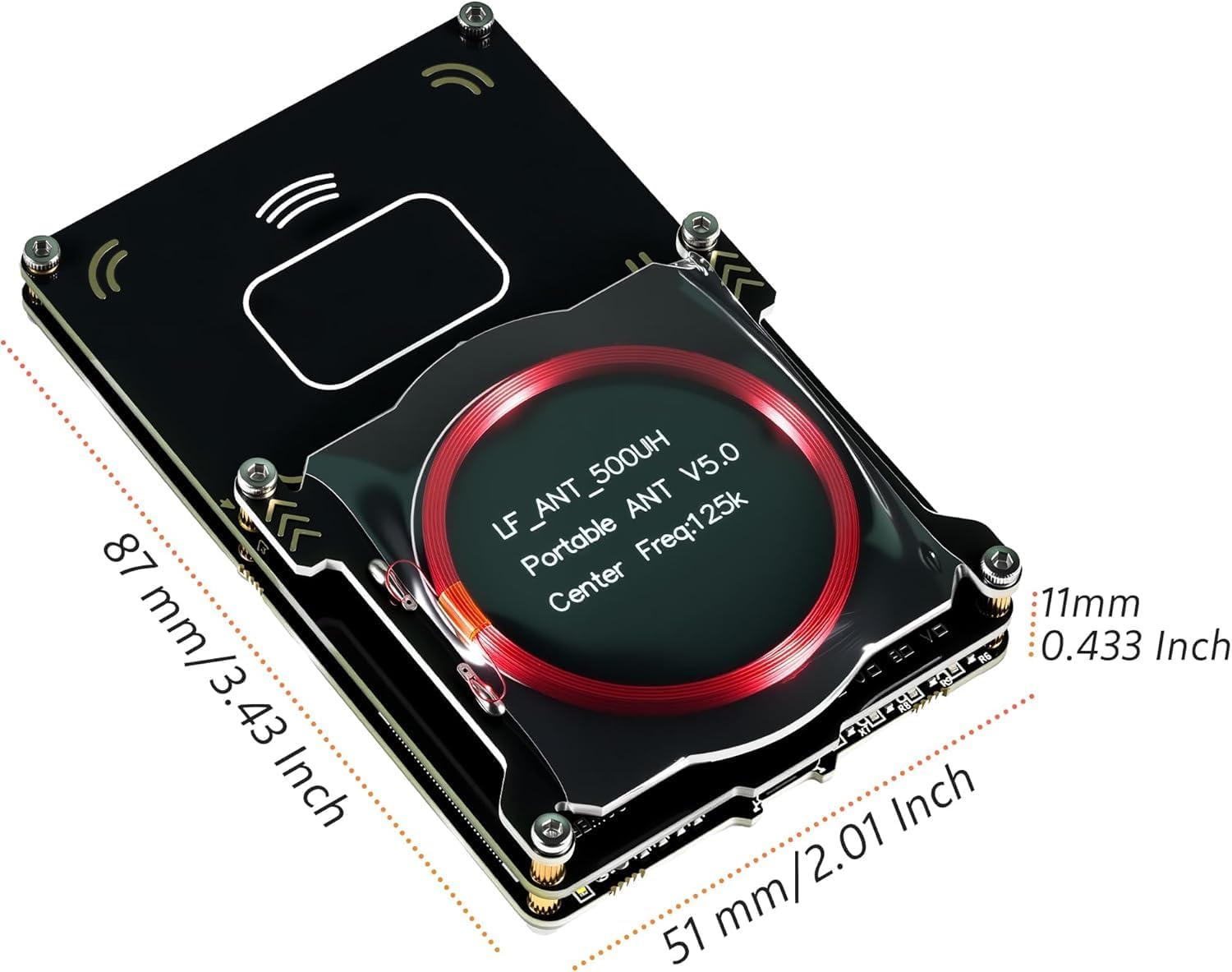

| Dimensions |
Approx. 100 x 55 x 10 mm |
| Weight |
Approx. 60 g (unit only) |
Who Is This For
The Proxmark3 Easy V3.0 is built for security professionals, IT administrators, access control engineers, and RFID researchers who need a reliable, field-ready tool for authorized RFID auditing and testing. It is widely used in corporate security assessments, hotel key card systems, parking access control, and industrial RFID deployments.
Note: This device is intended for authorized security testing and research purposes only. Always ensure you have proper authorization before testing any RFID system.
