Description
This UHF RFID card is embedded with the Alien Higgs-3 (H3) chip, model 9662, offering high-performance RFID identification compliant with EPCglobal Gen 2 and ISO/IEC 18000-6C standards. Designed for long-range, fast, and reliable communication, this card is suitable for inventory tracking, personnel ID, parking, asset management, and other applications requiring fast bulk reads and custom user memory.
The Alien Higgs-3 chip features 512 bits of user memory, a 96-bit EPC number, and Read Protect/Write Protect features for secure deployments. With excellent sensitivity and performance, it supports multi-tag environments and can be used in both indoor and outdoor scenarios.
UHF Chip - Alien Higgs-3 (H3):
- Compliant with EPC Gen2 / ISO18000-6C
- Up to 10m read range (depending on reader)
- 96-bit EPC + 512-bit user memory (Writeable)
Physical Specs:
- Card size: CR80 (85.6 x 54 mm)
- Material: PVC or PET
- Printable surface (optional for card printers)

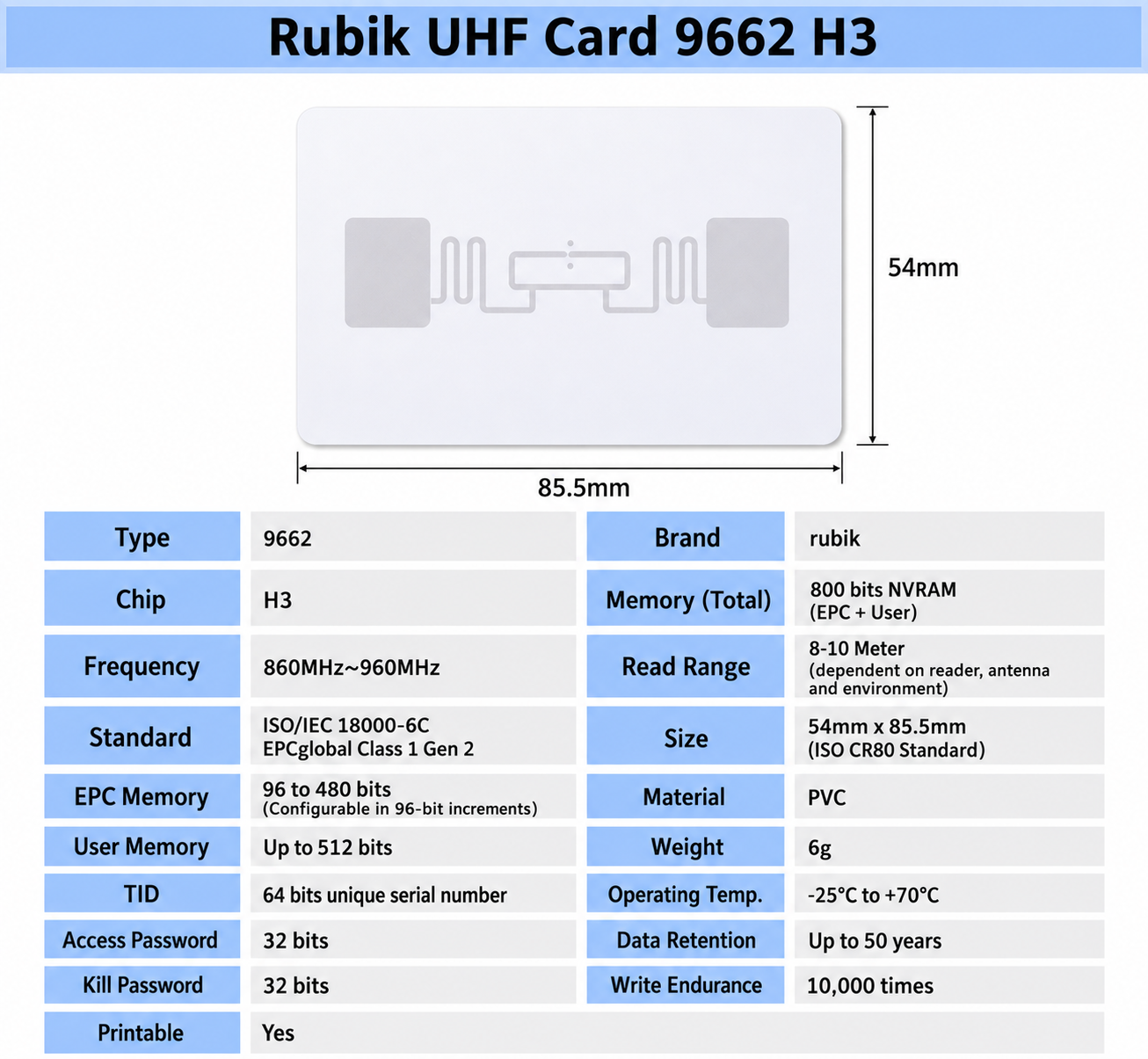

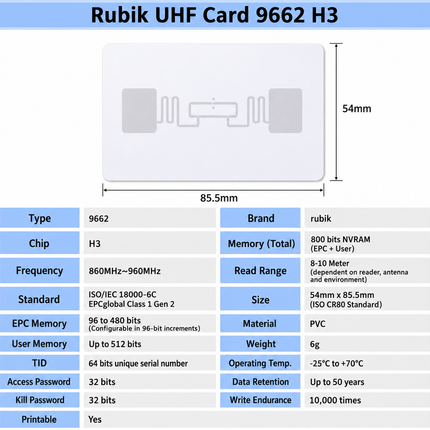

| Parameter |
Specification |
| Chip Model |
Alien Higgs-3 (H3) - 9662 |
| Chip Manufacturer |
Alien Technology |
| Frequency |
UHF 860-960 MHz |
| Protocols Supported |
EPCglobal Gen 2 v1.2.0 / ISO/IEC 18000-6C |
| EPC Memory |
96 bits (customizable EPC code) |
| User Memory |
512 bits |
| TID (Tag Identifier) |
64 bits (read-only, includes manufacturer info) |
| Access/Kill Passwords |
32 bits each |
| Write Capability |
EPC & User Memory are writable |
| Lock Feature |
Yes (Write/Read lock on EPC, user memory, access) |
| Read Range |
Up to 8-10 meters (depending on reader and antenna) |
| Operating Temperature |
-40°C to +85°C |
| Storage Temperature |
-55°C to +100°C |
| Data Retention |
>10 years |
| Write Endurance |
100,000 cycles |
| Material |
PVC |
| Card Dimensions |
ISO CR80 - 85.6 x 54 x 0.84 mm |
| Surface Options |
Glossy |
| Printing Support |
Offset |
